7 - 5
Controls
Enter
0
Esc
2
3
4
5
6
7
8
9
1
+
Clear
7.08.01 Display
In its basic condition the displays on the screen are divided into 2 part sections:
Status line
In the top section of the display screen there is a status line, where up to 5 pictographs
with their corresponding values can be displayed (e.g. program number, number of seam
sections etc.).
Pictograph strip
In the bottom section there is the pictograph line. The functions of the symbols, which
appear here, can be called up using the
number keys.number keys.
number keys.number keys.
number keys. Activated functions are displayed
by an inverse symbol.
Normal symbol (function not activated)
Inverse symbol (function activated)

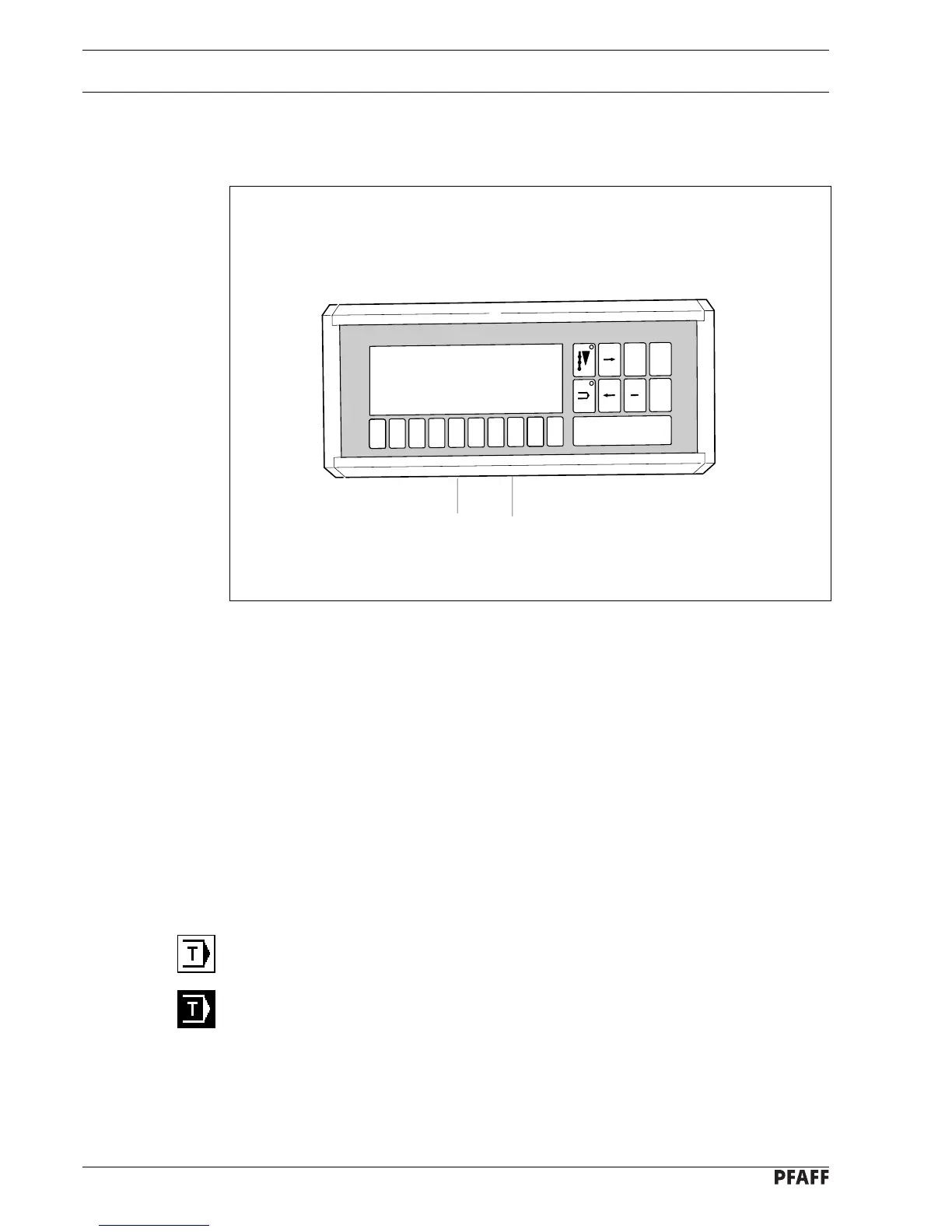

7.08 Graphics operating panel
The graphics operating panels consists of the display screen and 2 key zones.
Fig. 7 - 08
