Pfaff 3822-1/32 - Cutting Depth of the Back Knife

13 - 61
Adjustment
13.08.09 Cutting depth of the back knife
Requirement
In its lowest position the back knife should move approx. 0.5 mm into the hook knife.
● Switch the machine on and let it move into position.
● Switch on the edge trimming and feathered trimming device (keyboard).
● Bring hook knife 1 into cutting position (keyboard).
● By turning the balance wheel, bring back knife 2 into cutting position.
● Adjust eccentric 3 (screw 4) according to the requirement.
● Check the height of the front knife and adjust it if necessary, see Chapter 13.07.03
Knife height.

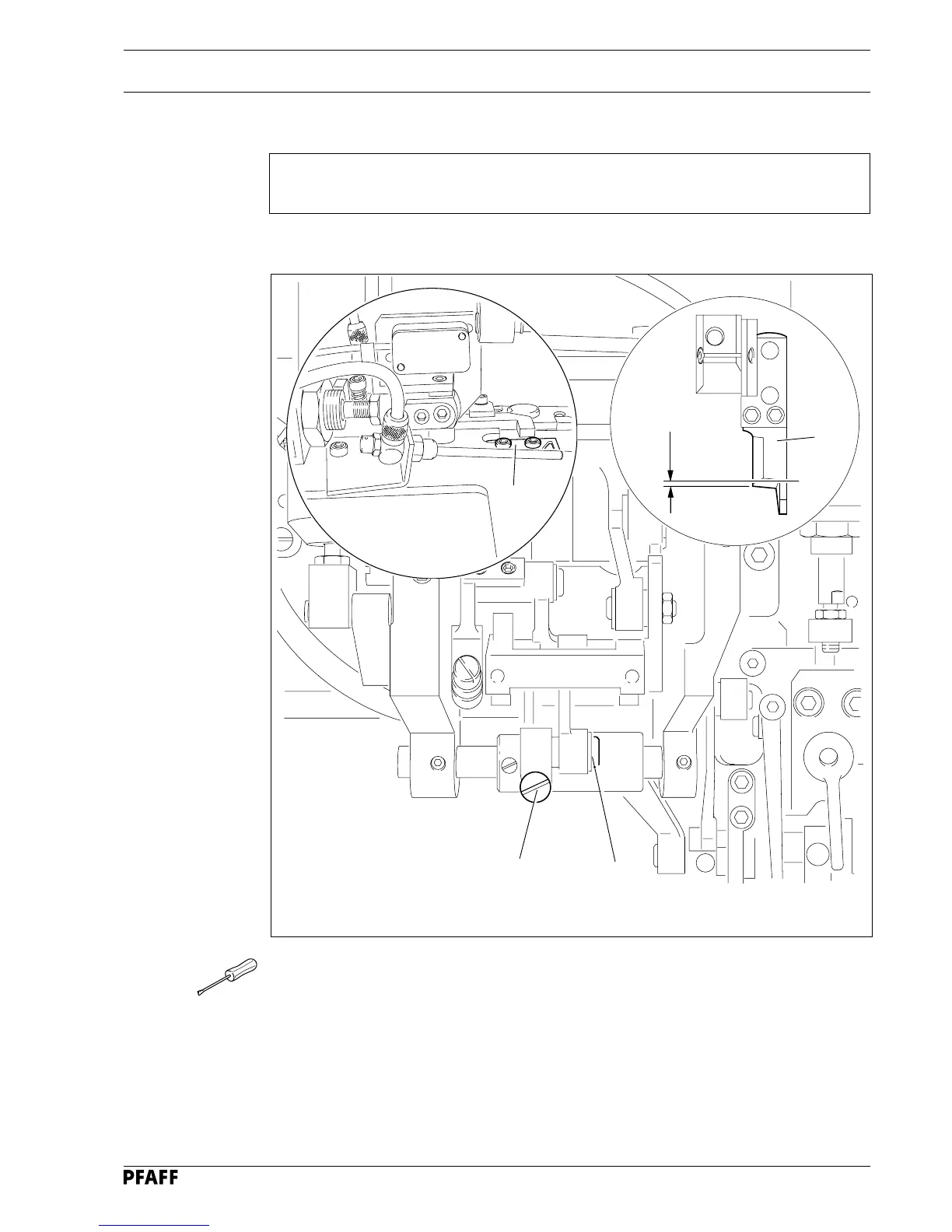

Fig. 13 - 60
49-42
34
49-052
2
0.5 mm
49-46
1
