Pfaff 3822-1/32 - Basic Setting of the Differential Adjustment Device

13 - 21
Adjustment
49-08
9
3
7
5
1
6
2
4
0
1
1
0
1
1
1
2
8
1
13.05.19 Basic setting of the differential adjustment device
Requirement
With the fullness set at "0", the stitch length at "2.7" and the adjustment gauge 5 fitted, the
roller 2 should be touching pressure sleeve 4.

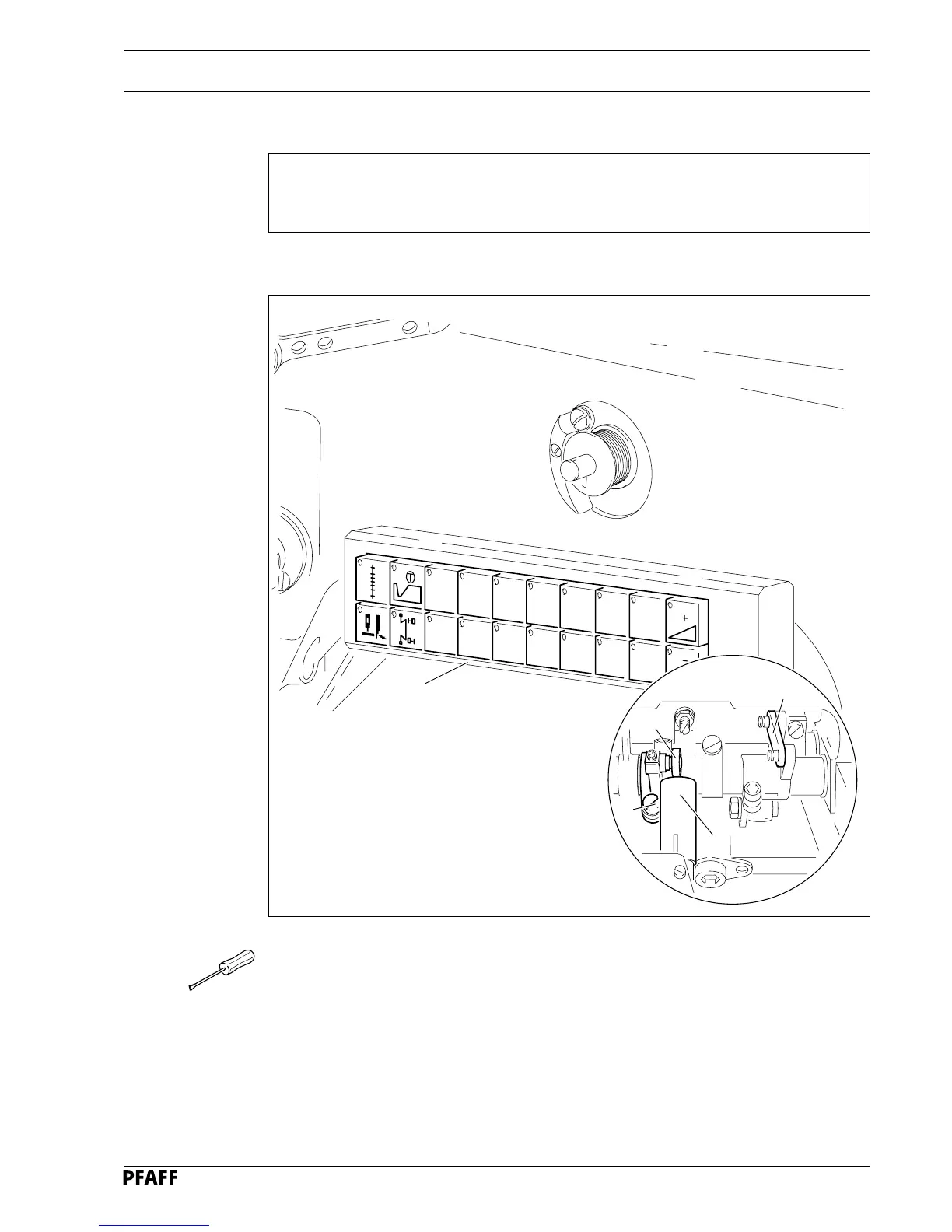

Fig. 13 - 20
● Switch on the machine.
● Press key "0" on keyboard 1 (LED must light up).
● Switch off the machine.
● Adjust roller 2 (screw 3) according to the requirement.
1
54-034
2
3
5
4
