Adjustment
49-34
49-76
13
.08.13

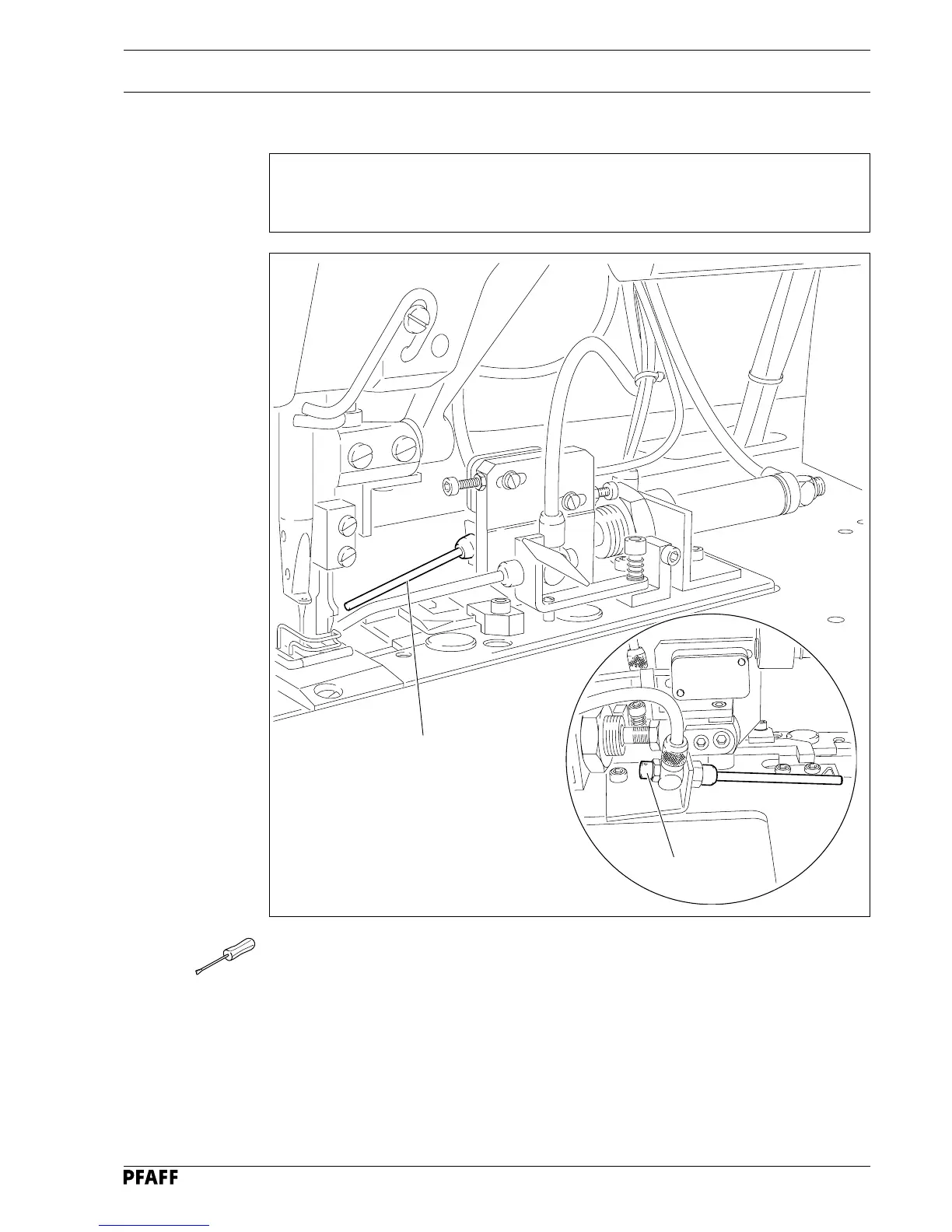

Air-blast tube for separating the material plies
Requirement
The material plies should be blown far enough apart to enable the hook knife to move
between both material plies without difficulty.
●
Align air-blast tube
1
according to the
requirement.
●
Adjust air pressure (throttle valve
2
) according to the
requirement.
Fig. 13 - 64
2
1
122
124
