Adjustment
13.05.10 Stop in relation to the presser foot
Requirement
When adjustment foot 1 (part no. 61-111 639-20) is resting on the needle plate, stop 4
should be touching screw
22
22
2
● Remove presser foot.
● Attach adjustment foot 1 (part no. 61-111 639-20) and lower it onto the needle plate.
● Adjust screw 2 (nut 3) according to the requirement.
● Remove adjustment foot 1 and replace presser foot.
5
6
2
3
4
49-028a
1

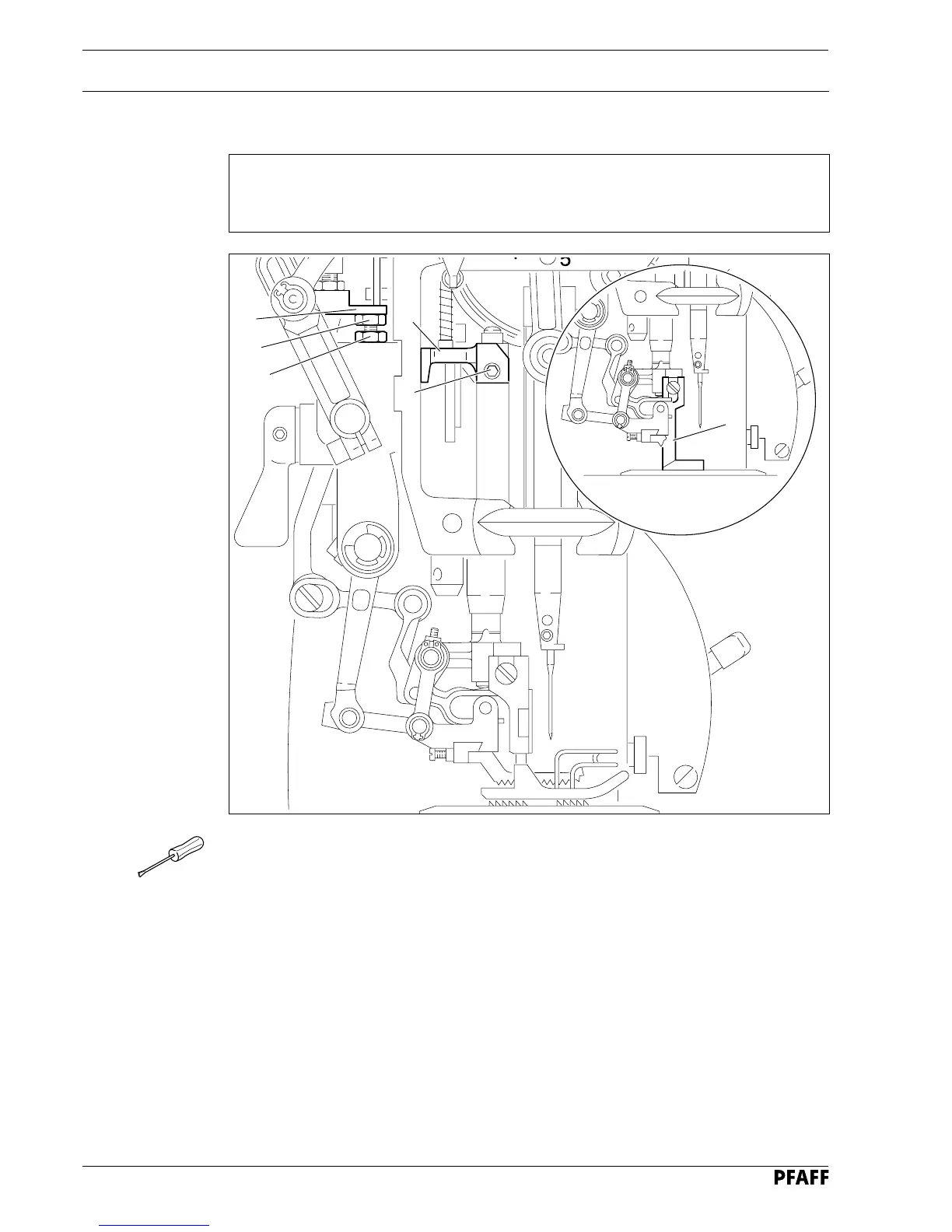

Fig. 13 - 11
