Pfaff 3822-1/32 User Manual

13 - 7
Adjustment
49-04
12
11
6
5
1
1
+
13.05.05 Play of the feed reverse key
Requirement
With the maximum stitch length set, the feed reverse key 4 should have approx. 0.3 mm
play.

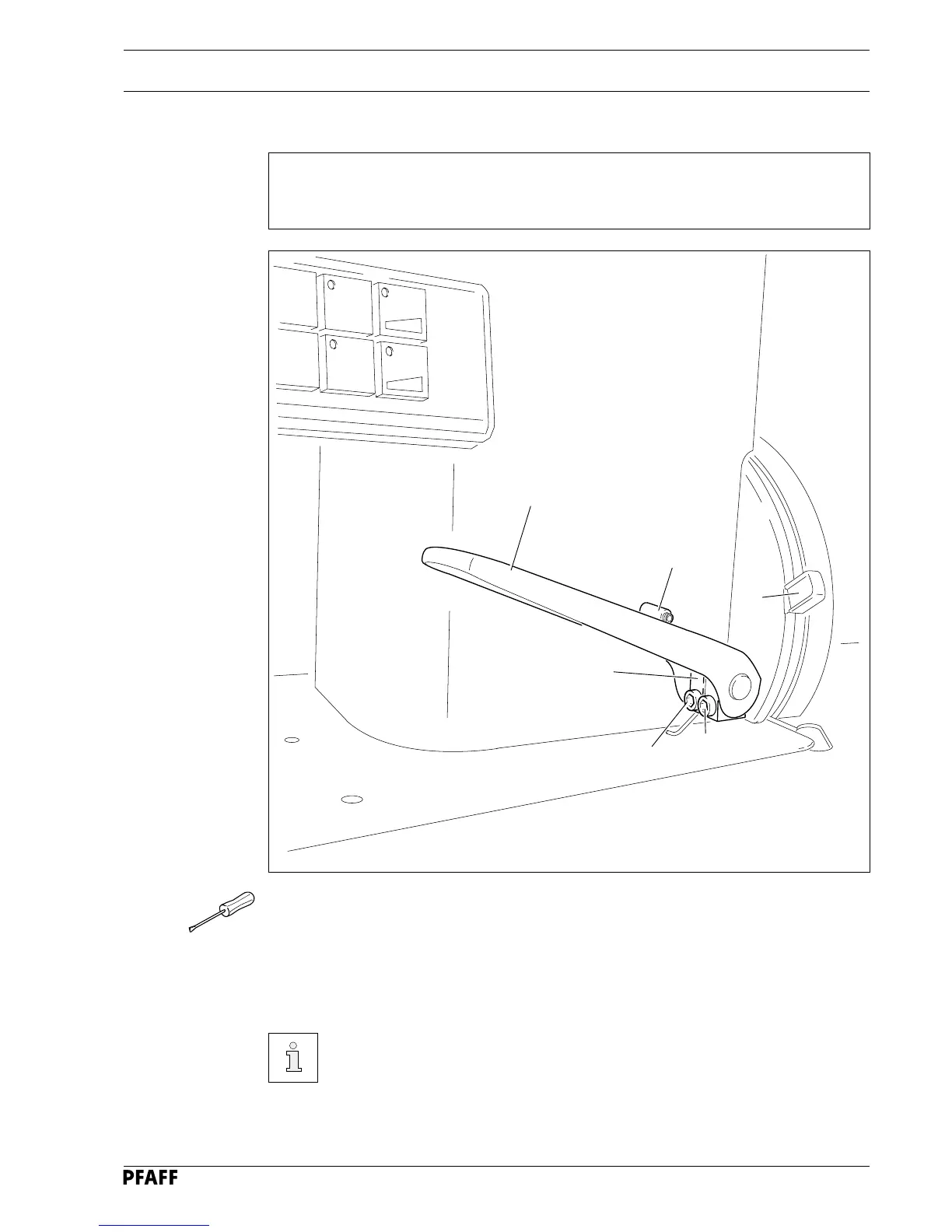

Fig. 13 - 06
● Set the maximum stitch length (lever 1).
● Loosen screws 2 and 3.
● Press feed reverse key 4 against stop 5 and bring actuator lever 6 into contact with the
feed reverse key.
● Tighten screw 2.
Screw 3 remains loosened for further adjustments.
2
6
3
1
4
5
