Philips BJ3.0E - SSB Cell Layout

Circuit Descriptions, Abbreviation List, and IC Data Sheets
EN 142 BJ3.0E PA9.
SSB Cell Layout

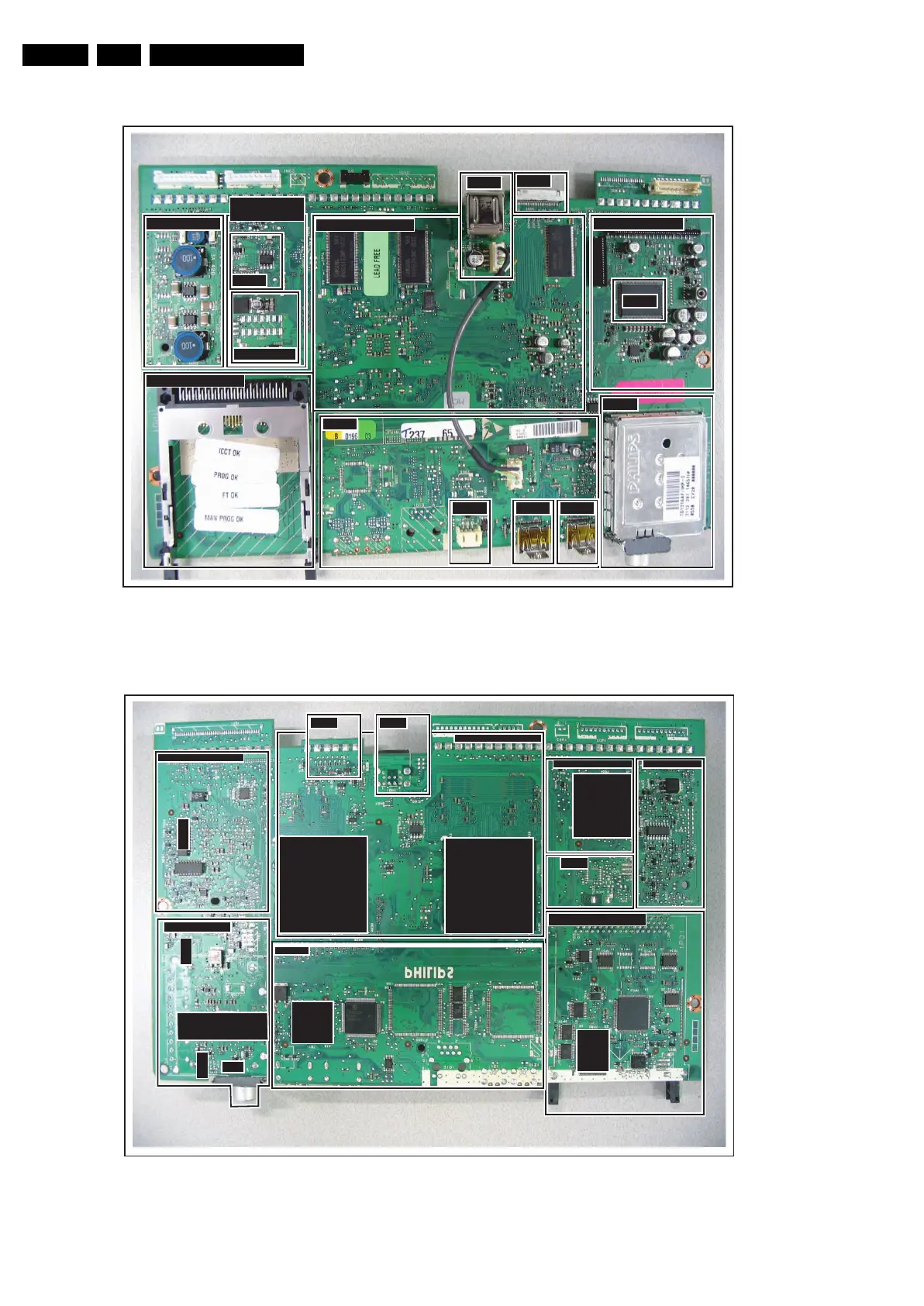

Figure 9-1 SSB top view
Figure 9-2 SSB bottom view
G_15960_112.eps
070306
DC / DC & CONV
COMMON INTERFACE
SOURCE SELECTION
TUNER
I/O
HDMI 1
SIGNAL PROCESSING
RS232
MOP
USB
MPIF
UART HDMI 2
LVDS
DISPLAY
INTERFACE
G_15960_113.eps
070306
COMMON INTERFACE
RS232
LVDS
USB
AVIP
COLUMBUS STBY
CONTROLLER
VIPER
PACIFIC3
HDMI
RECEIVER
NAND
FLASH
(SET SW
+ KEYS)
TUNER
XTAL
SAW
SAW
SAW
I/O
SIGNAL PROCESSING
SOURCE SELECTION
DISPLAY INTERFACE
DC/DC CONV.
DECODER
DEMODULATOR
