Philips BJ3.0E - Secondary Chassis Frame Removal; Plasma Display Panel Removal

Mechanical Instructions
EN 15BJ3.0E PA 4.

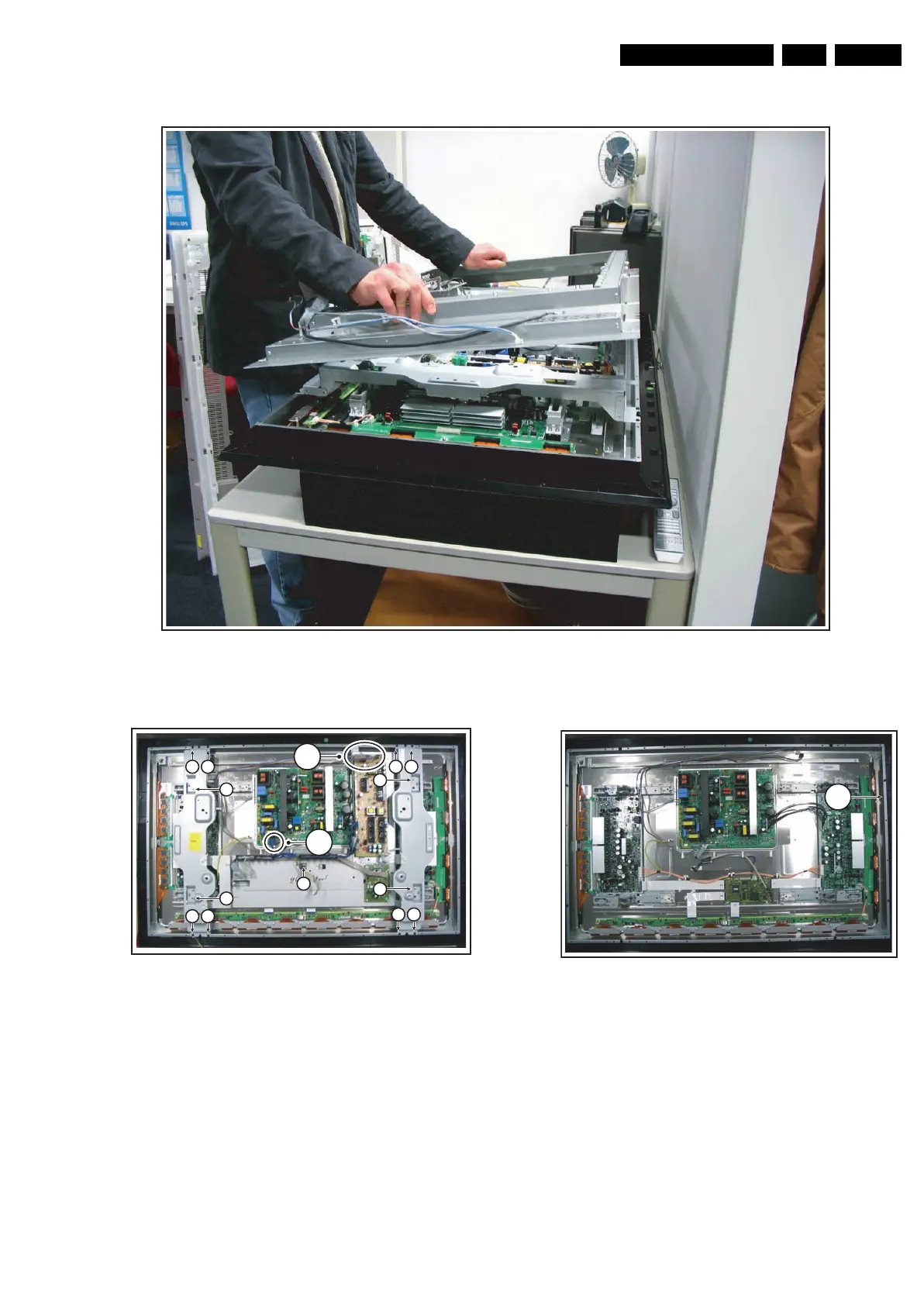

Figure 4-20 Primary chassis frame lift
Secondary Chassis Frame Removal
Figure 4-21 Secondary chassis frame removal
1. Remove the T25 tapping screws [1].
2. Remove the T10 parker screws [2].
3. Remove one T20 tapping screw [3].
4. Disconnect one connector [4] at the bottom of the Display
Supply Panel.
5. Disconnect two cables [5] at the top of the Platform Supply
Panel.
Plasma Display Panel Removal
Figure 4-22 Plasma Display Panel removal
Now the PDP and the glass plate can be removed. Before
sending the PDP for repair, remove the Display Supply Panel
(only for FHP panels) and the LVDS cable. The glass plate can
be removed after lifting the surrounding metal frame [1].
G_15960_105.eps
070306
G_15960_106.eps
080306
