Service Modes, Error Codes, and Fault Finding
EN 21BJ3.0E PA 5.

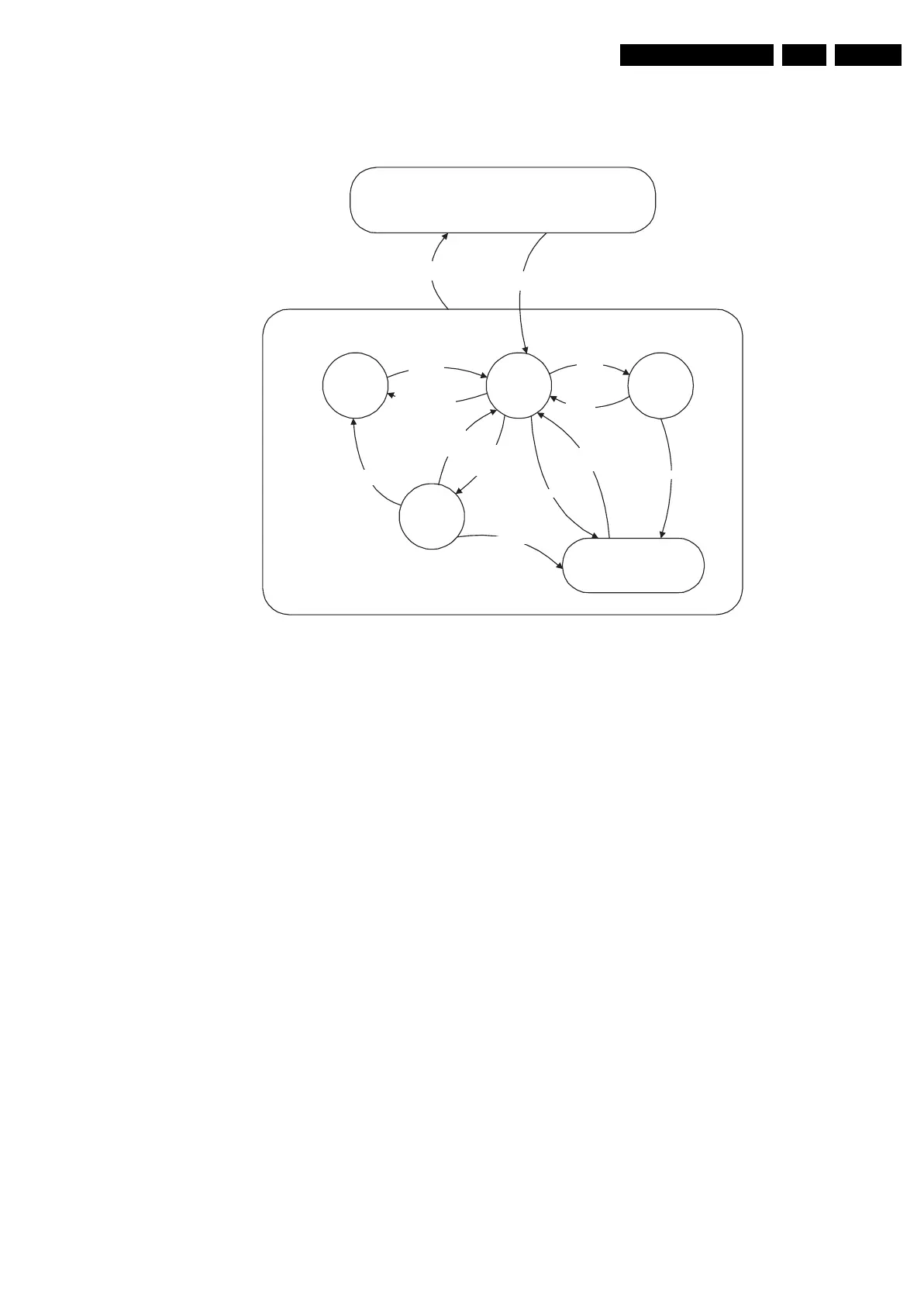

Figure 5-2 Transition diagram
G_15960_117.eps
100306
On
Active
Semi
St by
St by
(Off St by)
Off
Mains
on
Mains
off
GoToProtection
- WakeUp
requested
- Acquisition
needed
- No data Acquisition
required
and no POD present
- tact SW pushed
- St by
requested
- tact SW
pushed
WakeUp
requeste
d
Protection
For detailed information concerning the triggers that cause the state
transitions, please consult the Jaguar FRS or the ATSC SAD.
WakeUp
requeste
d
GoToProtection
POD
St by
No data
Acquisition
required and
POD present
- POD Card removed
- tact SW pushed
GoToProtection
- WakeUp
requested
- Acquisition
needed
The protection state is hardware wise identical to the standby state but
has other, limited wake up reasons.
