Philips IntelliVue X2 User Manual

Controls, Indicators and Connectors 2Basic Operation
13

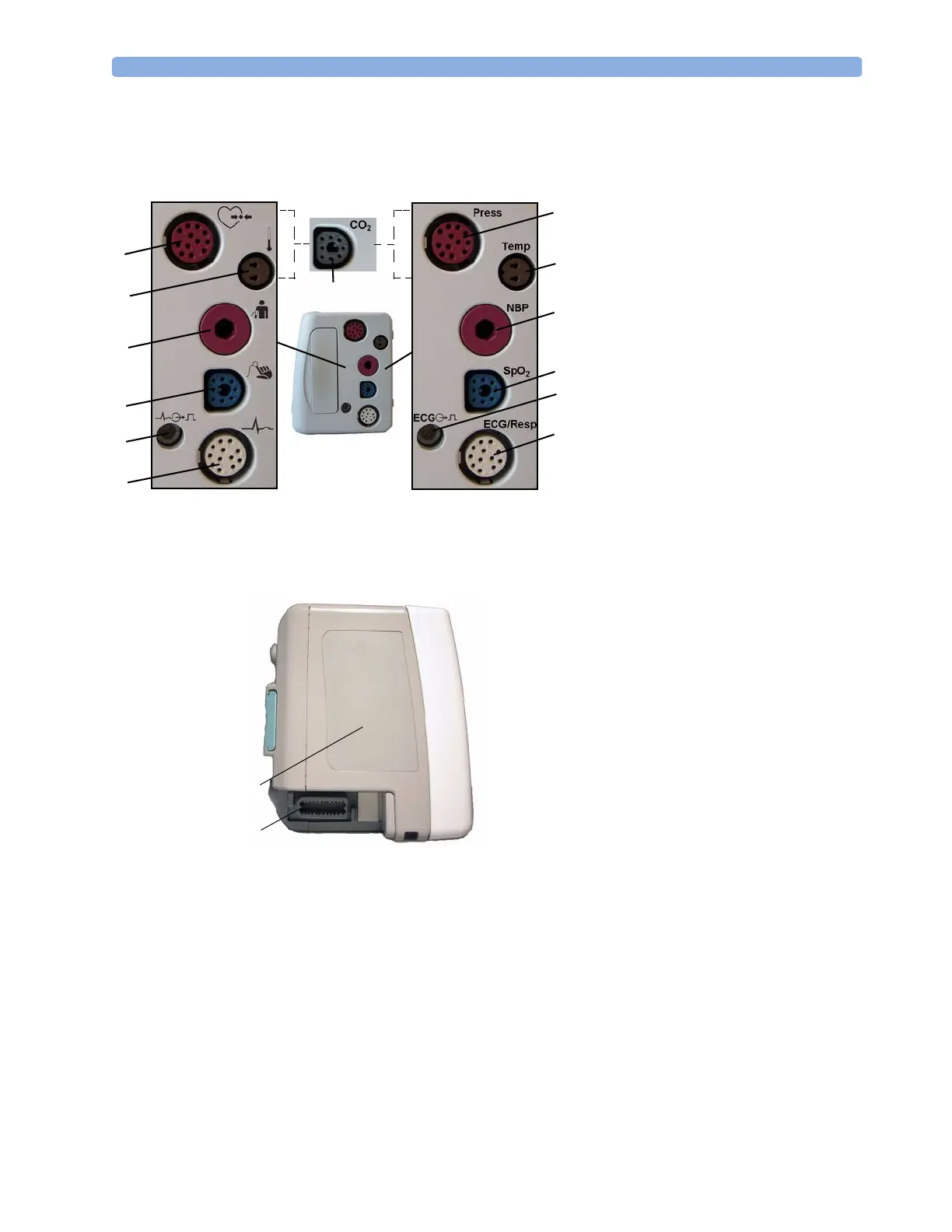

X2 Patient Connectors, Right Side
1 Pressure (option)
2 Te mp e r atu r e ( o p tio n )
3 Noninvasive blood pressure
4 SpO
2
5 ECG sync pulse output
(See page 255 for specifications)
6 ECG/Respiration
7 CO
2
(option)
1
2
4
3
6
5
4
3
2
1
1
2
3
4
5
6
Symbols (International) Text (English versions only)
7
X2 Left Side
1 Loudspeaker
2 MSL Connector. Connects to a host
monitor or the external power supply
via the MSL cable for power, battery
charging, and communication with a
network.
2
1

Philips IntelliVue X2 Specifications

General

Brand	Philips
Model	IntelliVue X2
Category	Control Unit
Language	English
