Philips IntelliVue X2 User Manual

Extending Measurements 2Basic Operation
15

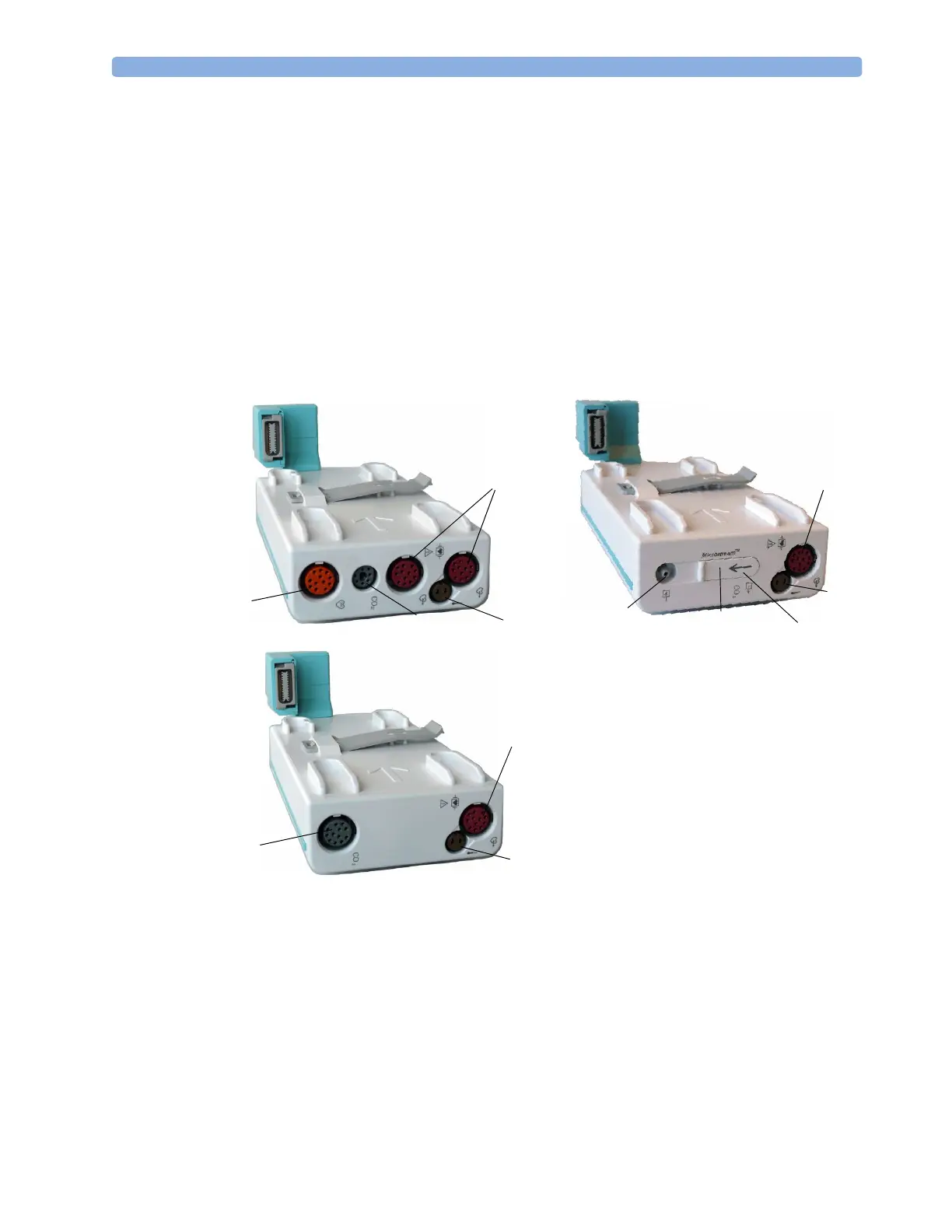

M3014A, M3015A and M3016A Measurement Extensions
When attached to an X2 connected to external power (either via the external power supply or a host
monitor), the optional M3014A Capnography extension adds mainstream capnography, and
optionally one pressure plus either a pressure or a temperature to the monitor. When the X2 is
connected to a host monitor, Cardiac Output (C.O.) measurements can be performed and can be used
to calibrate Continuous Cardiac Output (CCO). These stored C.O. results and the calibrated CCO
measurement are still available in the X2 when it is disconnected from the host monitor.
The optional M3015A Microstream CO
2
extension adds microstream capnography and optionally
either pressure or temperature to the monitor. The optional M3016A Mainstream CO
2
extension adds
mainstream capnography and optionally either pressure or temperature to the monitor.
Only one CO
2
measurement at a time is supported.
1
Pressure connectors (red)
5
Inlet
2
Te mpe r a tu r e c o n ne c t or ( b ro w n)
6
Microstream
connector CO
2
3
Mainstream/sidestream connector CO
2
(optional)
7
Gas sample outlet
4
Cardiac Output connector
M3014A Capnography
M3015A Microstream
1
2
6
1
3
2
7
5
4
1
2
M3016A Mainstream
3
