Phoenix LT4 - Vacuum Head Solenoid & Bracket Assembly; Vacuum Head Tensioner Assembly

Phoenix LT4 Lane Machine Operation, Maintenance, and Parts Manual
61-900040-000 Rev. Date 01/22
7-13

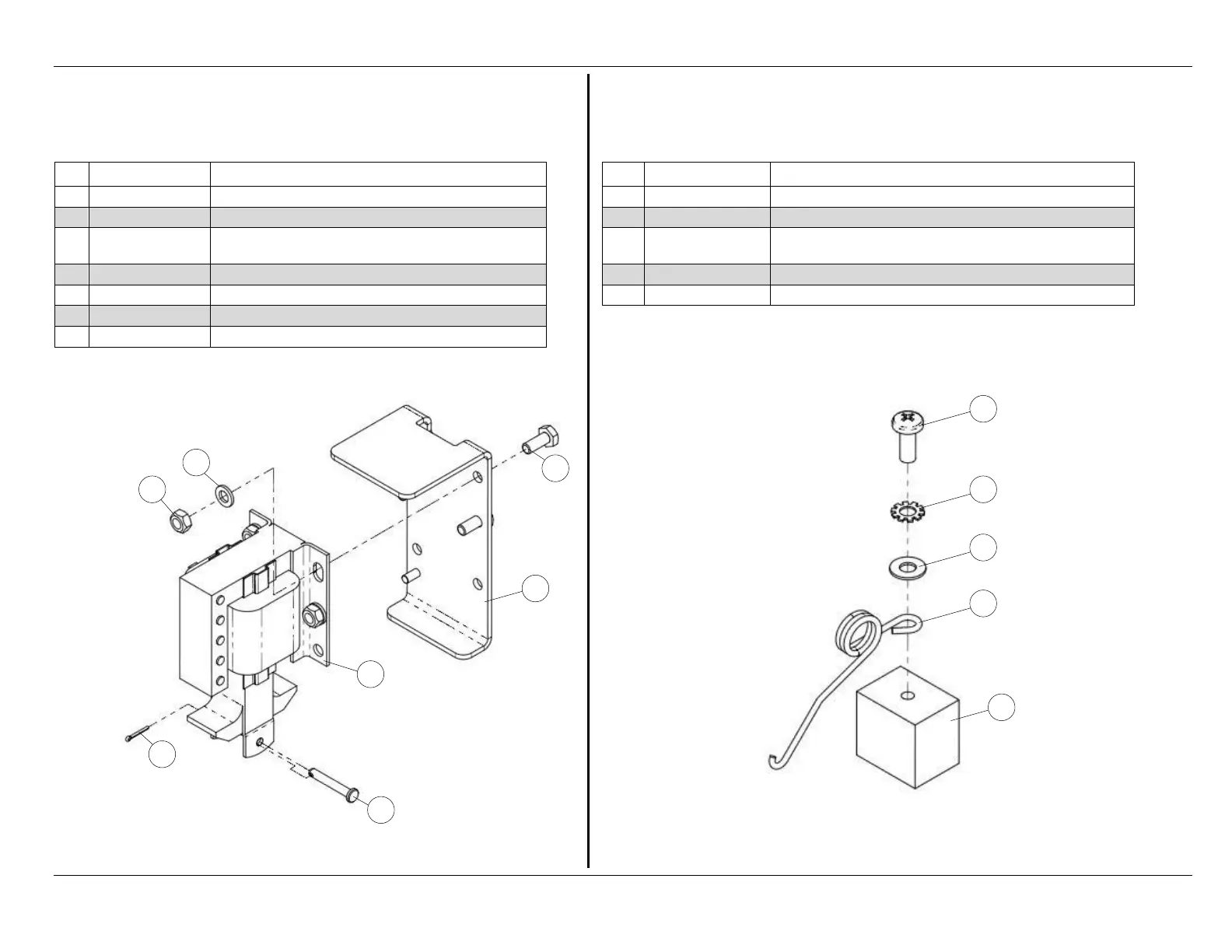

Vacuum Head Solenoid & Bracket Assembly Vacuum Head Tensioner Assembly – 294-116-128
NUMBER
DESCRIPTION
NUMBER
DESCRIPTION
1
01-080
PIN, COTTER, 1/16 X 1/2 LG
1
01-021
SCREW, PAN HEAD, 10-32 X 1/2
2
01-495
PIN, CLEVIS, 3/16 X 1-1/4 LG
2
01-033
WASHER, EXT TOOTH LOCK, #10
3
294-002-033
294-002-274
SOLENOID, 110V, 60 HZ, LEFT HAND
SOLENOID, 220V, 50HZ, LEFT HAND
3
294-116-126
SPRING
4
294-116-123
VAC SOLENOID BRACKET ASM
4
294-116-127
VAC HEAD SPRING BLOCK
5
809-849-100
SCREW, HEX, 1/4-20 X 5/8
5
948-545-072
WASHER, MACHINE, #10
6
844-049-002
NUT, STOVER LOCK, 1/4-20
7
945-548-000
WASHER, FLAT, 1/4
4
3
5
2
1
4
3
2
1
6
7
5
