Phoenix LT4 User Manual

Phoenix LT4 Lane Machine Operation, Maintenance, and Parts Manual
61-900040-000 Rev. Date 01/22
7-40

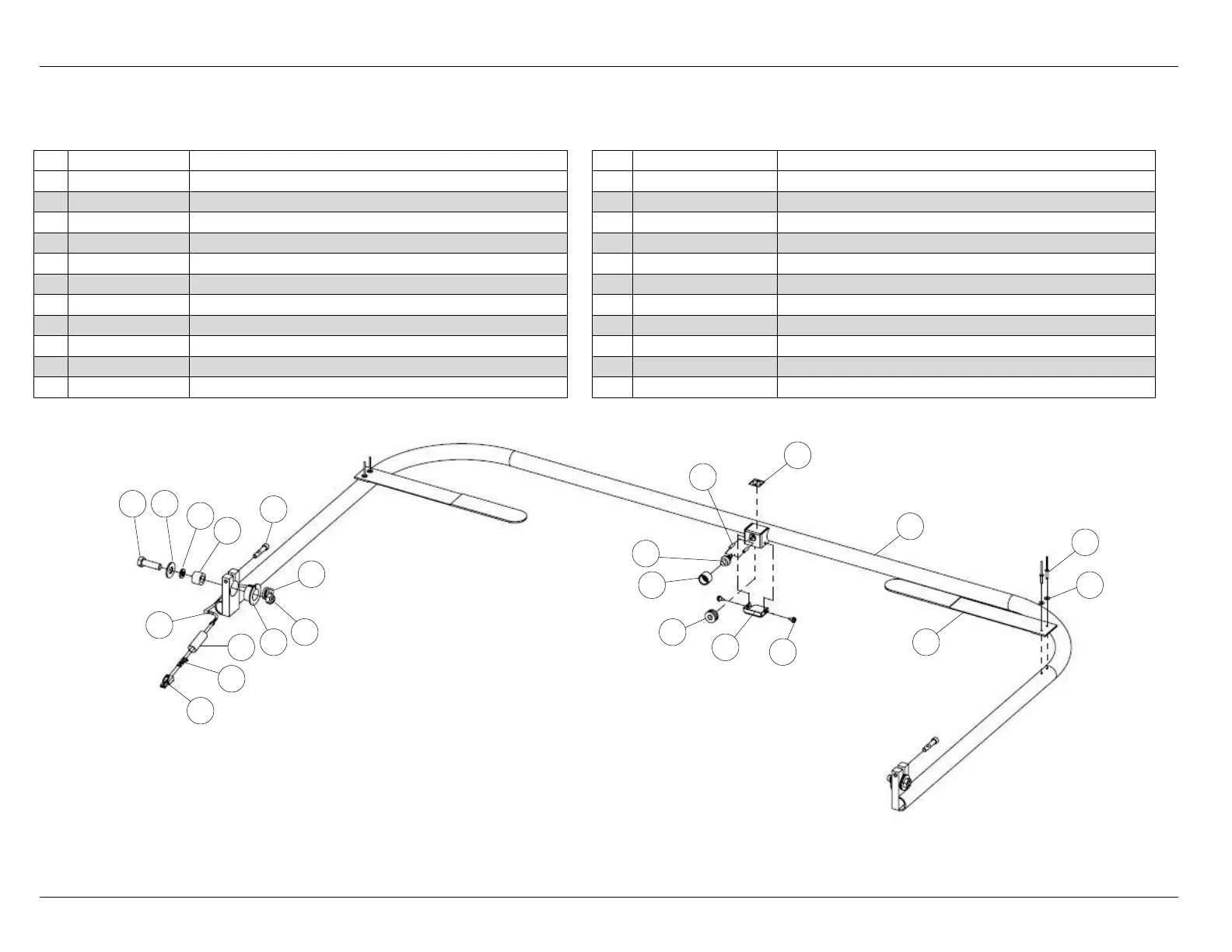

Handle Assembly - 294-115-555
NUMBER
DESCRIPTION
NUMBER
DESCRIPTION
1
01-058
SCREW, HEX HEAD THREAD FORMING, #8 X 3/8
12
294-115-082
HANDLE PIVOT BOSS
2
01-130
RIVET, 1/8 DIA X 1/2 LG, ALUMINUM
13
294-115-695
FLANGED TENSION BUSHING
3
01-303
WASHER, FLAT, 1/8 X 7/16 X 1/32
14
294-115-709
START STICKER
4
02-208
HEAT SHRINK TUBING, 1/2 DIA
15
760-019-226
CONTACT TERMINAL, FEMALE, 18-24 AWG
5
02-307
CABLE, 2 CONDUCTOR, 22 AWG, SHIELDED
16
809-865-205
SCREW, HEX, 3/8-16 X 1-1/4
6
02-335
SWITCH
17
810-349-200
SCREW, SOCKET HEAD, 1/4-20 X 1-1/4, PATCH
7
02-336
CONNECTOR, 2 POSITION
18
844-065-002
NUT, STOVER LOCK, 3/8-16
8
02-563
HEAT SHRINK TUBING, 1/8 DIA
19
947-367-141
WASHER, FLAT, 3/8
9
04-078
GROMMET, 5/16 X 3/4 X 1/8, RUBBER
20
951-156-002
WASHER, SPLIT LOCK, 5/16
10
04-397
HANDLE STRAP
21
A-0448
HANDLE SWITCH BOX COVER
11
294-115-030
HANDLE WELDMENT
22
A-1028
START SWITCH COVER
11
10
3
2
6
8
22
9
21
1
14
16
19
20
12
13
18
9
4
15
7
5
17
