Phoenix LT4 - Control System Components

Phoenix LT4 Lane Machine Operation, Maintenance, and Parts Manual
61-900040-000 Rev. Date 01/22
7-36

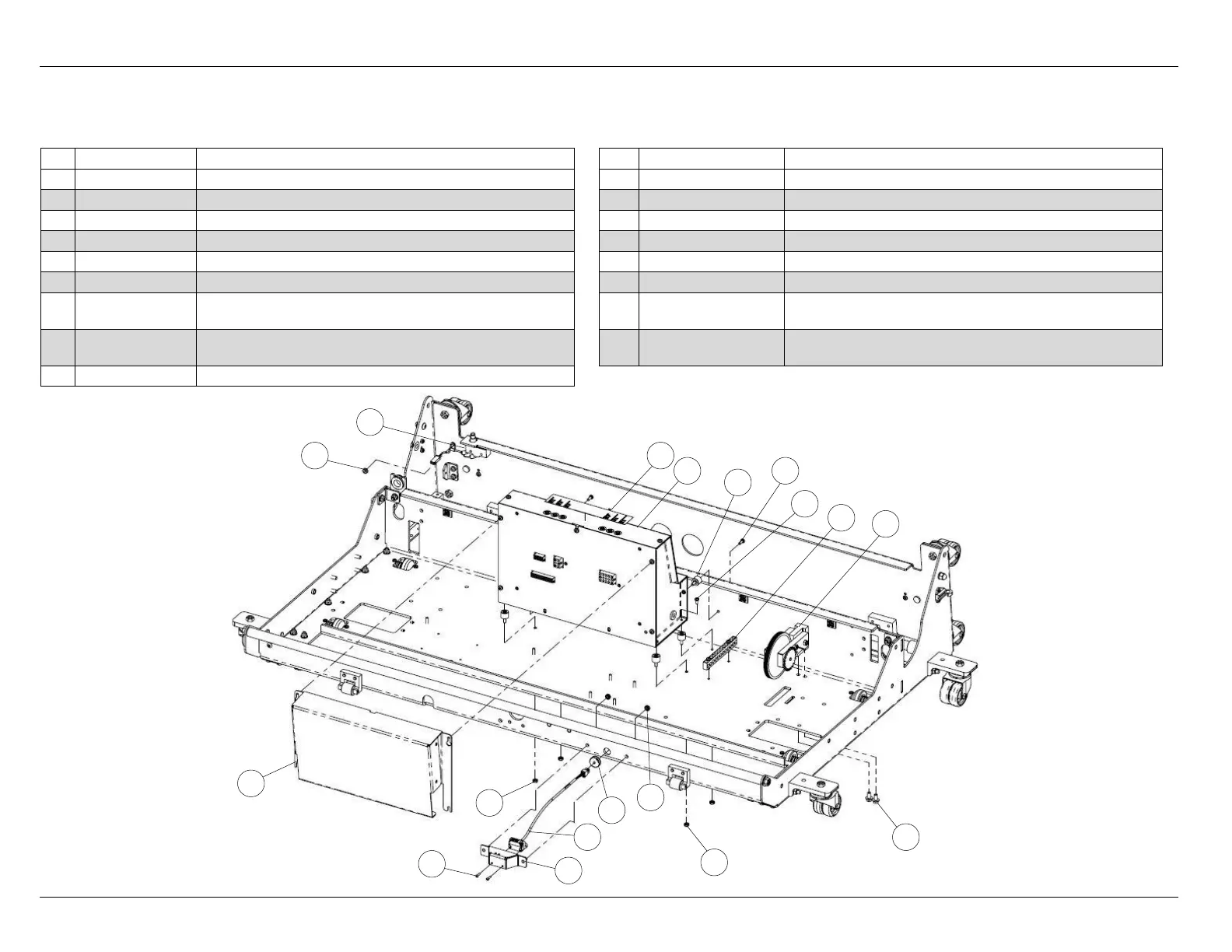

Control System Components
NUMBER
DESCRIPTION
NUMBER
DESCRIPTION
1
088-000-245
OPTICAL SENSOR ASM
10
711-501-001
GROMMET, 3/16 X 5/8 X 3/16, RUBBER
2
294-115-677
GROUND BAR ASM
11
721-510-029
VIBRATION MOUNT, 8-32 X 1/2, MALE-FEMALE
3
294-116-053
OPTICAL SENSOR BRACKET
12
801-749-081
SCREW, FLANGE HEAD HEX, 1/4-20 X 1/2
4
294-116-076
CONTROL BOX FUSE DECAL
13
808-503-121
SCREW, BUTTON HEAD, M3-.5 X 12 mm
5
294-116-158
CONTROL BOX GUARD ASM
14
818-233-062
SCREW, PAN HEAD, 8-32 X 3/8
6
294-116-169
COUNTER WHEEL & ENCODER ASM
15
818-233-082
SCREW, PAN HEAD, 8-32 X 1/2
7
294-116-195
294-116-194
CONTROL BOX ASM, 110V
CONTROL BOX ASM, 220V
16
843-133-002
NUT, KEPS, 8-32
8
294-116-199
294-116-198
WIRING HARNESS, 110V (NOT SHOWN)
WIRING HARNESS, 220V (NOT SHOWN)
17
843-140-002
NUT, KEPS, 10-32
9
294-116-202
INTERLOCK SWITCH ASM
12
6
17
17
9
4
7
11
15
14
2
16
10
1
3
16
13
5
