Phoenix LT4 - Vacuum Head Assembly

Phoenix LT4 Lane Machine Operation, Maintenance, and Parts Manual
61-900040-000 Rev. Date 01/22
7-12

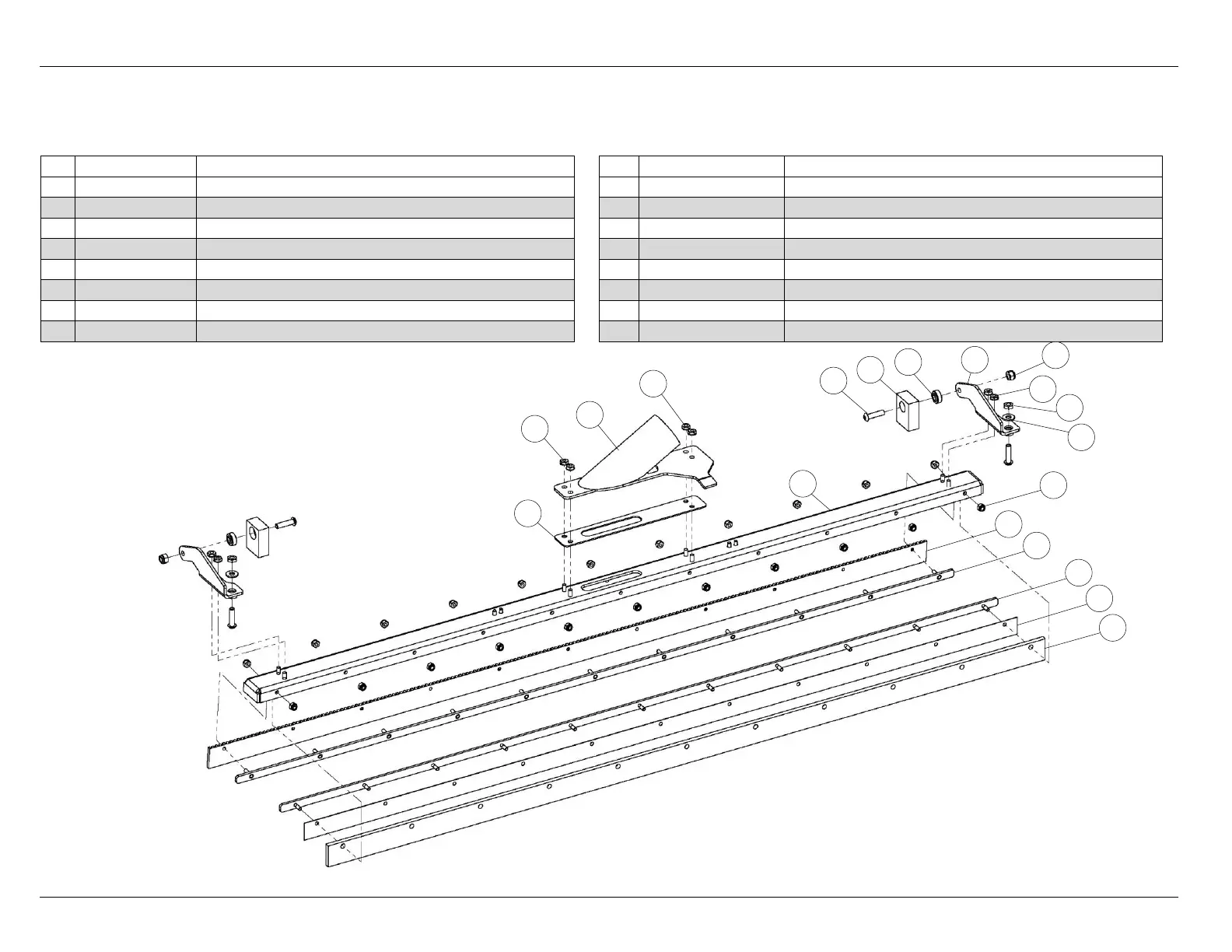

Vacuum Head Assembly - 294-116-147
NUMBER
DESCRIPTION
NUMBER
DESCRIPTION
1
01-051
NUT, NYLON LOCK, 1/4-20
9
294-116-142
AGITATOR FOAM
2
294-116-129
ARM, VAC HEAD
10
294-116-146
VAC HEAD BAR
3
294-116-132
PIVOT BLOCK, VAC HEAD
11
702-108-000
BEARING, SPHERICAL, 1/4 X 21/32 X 1/4
4
294-116-135
HORN WELDMENT, VAC HEAD
12
808-549-160
SCREW, BUTTON HEAD, 1/4-20 X 1
5
294-116-136
GASKET, VAC HEAD
13
832-133-008
NUT, NYLON LOCK, 8-32
6
294-116-137
SQUEEGEE
14
835-549-008
NUT, HEX JAM, 1/4-20
7
294-116-139
STUD BAR, VAC HEAD
15
843-140-002
NUT, KEPS, 10-32
8
294-116-141
AGITATOR FOAM SHIM
16
948-753-101
WASHER, FLAT, 1/4
