Phoenix LT4 - Optical Sensor Assembly; Counter Wheel Assembly

Phoenix LT4 Lane Machine Operation, Maintenance, and Parts Manual
61-900040-000 Rev. Date 01/22
7-37

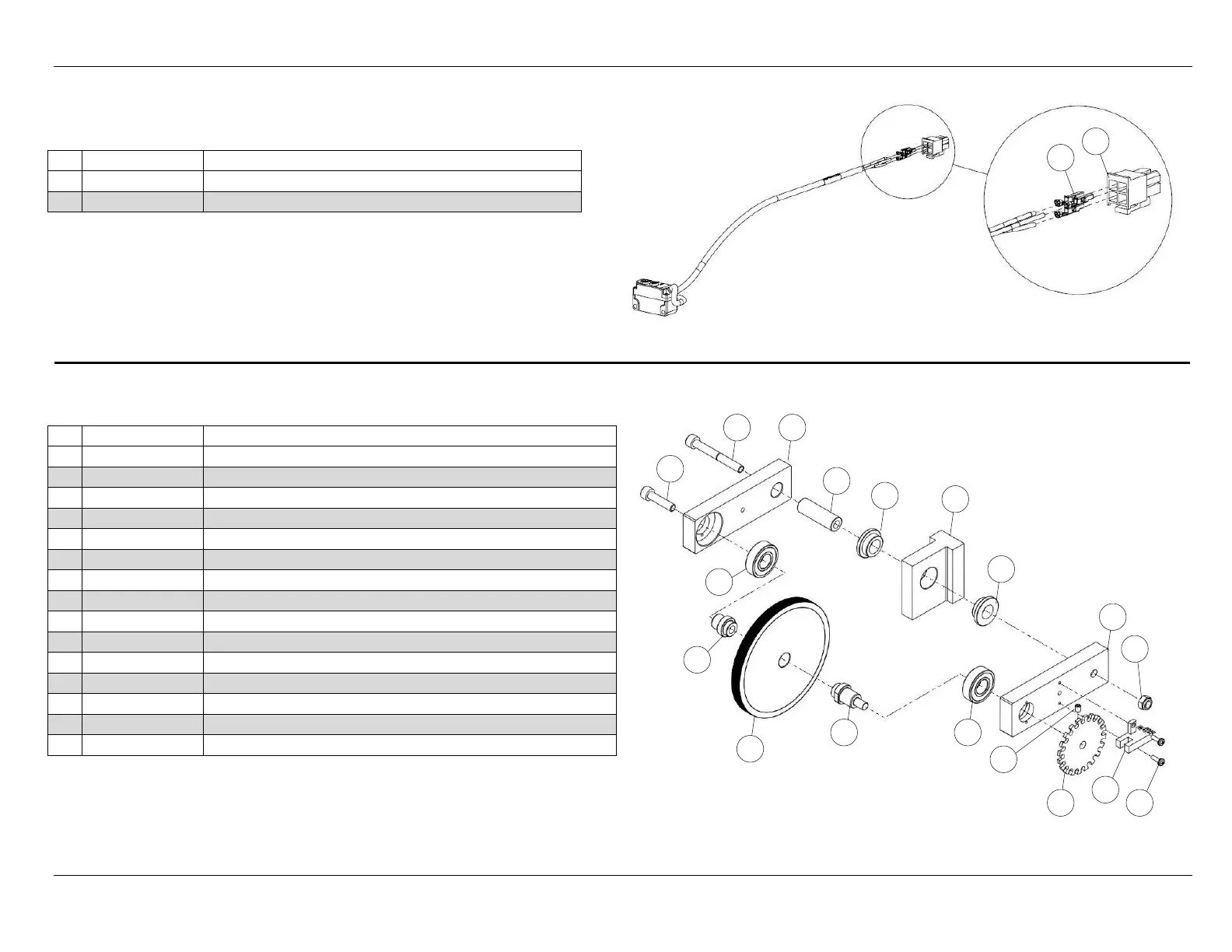

Optical Sensor Assembly - 088-000-245
Counter Wheel Assembly
NUMBER
DESCRIPTION
1
745-020-328
CONNECTOR, 4 POSITION
2
760-010-234
CRIMP TERMINAL, 18-24 AWG
NUMBER
DESCRIPTION
1
294-115-046
ENCODER
2
294-116-145
ENCODER SHAFT
3
294-116-162
TOOTH COUNTER WHEEL
4
294-116-163
COUNTER SHAFT, WHEEL
5
294-116-164
COUNTER WHEEL
6
294-116-165
COUNTER ARM
7
294-116-166
COUNTER SHAFT, MOUNT
8
294-116-167
COUNTER MOUNTING BRACKET
9
701-035-040
BEARING, 12 mm X 28 mm X 8 mm
10
701-415-001
BUSHING, FLANGED, 12 mm X 18 mm X 8 mm X 3 mm
11
807-104-061
SCREW, SET, CUP POINT, M4-.7 X 6 mm
12
810-206-501
SCREW, SOCKET HEAD, M6-1 X 50 mm
13
817-921-060
SCREW, PAN HEAD, 4-40 X 3/8
14
860-006-251
SCREW, SOCKET HEAD, M6-1 X 25 mm
15
872-062-017
NUT, NYLON LOCK, M6-1
2
1
8
10
10
2
6
6
12
14
9
7
5
4
9
3
15
11
1
13
