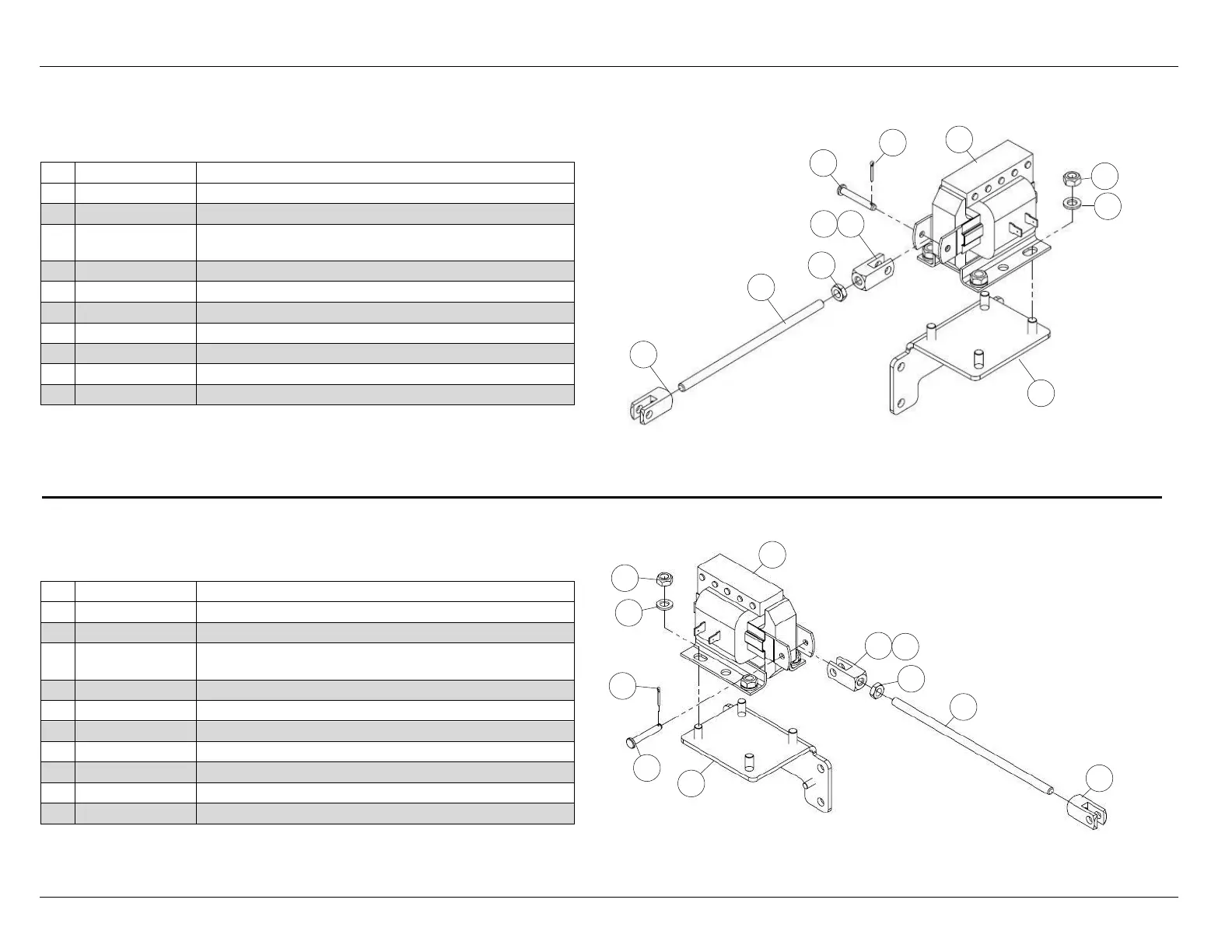

Phoenix LT4 - Left Hand Buffer Solenoid Assembly; Right Hand Buffer Solenoid Assembly

Phoenix LT4 Lane Machine Operation, Maintenance, and Parts Manual
61-900040-000 Rev. Date 01/22
7-30
Left Hand Buffer Solenoid Assembly
NUMBER
DESCRIPTION
1
01-080
PIN, COTTER, 1/16 X 1/2 LG
2
01-495
PIN, CLEVIS, 3/16 X 1-1/4 LG
3
294-002-032
294-002-275
SOLENOID, 110V, 60HZ, RIGHT HAND
SOLENOID, 220V, 50HZ, RIGHT HAND
4
294-116-074
BUFFER ROD, LEFT HAND
5
294-116-075
BUFFER LINKAGE, LEFT HAND (INC. 4, 7, & 8)
6
294-116-078
BUFFER SOLENOID BRACKET ASM
7
706-903-000
ROD END CLEVIS
8
835-550-002
NUT, JAM, 1/4-28
9
844-049-002
NUT, STOVER LOCK, 1/4-20
10
945-548-000
WASHER, FLAT, 1/4
Right Hand Buffer Solenoid Assembly
NUMBER
DESCRIPTION
1
01-080
PIN, COTTER, 1/16 X 1/2 LG
2
01-495
PIN, CLEVIS, 3/16 X 1-1/4 LG
3
294-002-033
294-002-274
SOLENOID, 110V, 60HZ, LEFT HAND
SOLENOID, 220V, 50HZ, LEFT HAND
4
294-116-072
BUFFER ROD, RIGHT HAND
5
294-116-073
BUFFER LINKAGE, RIGHT HAND (INC. 4, 7, & 8)
6
294-116-078
BUFFER SOLENOID BRACKET ASM
7
706-903-000
ROD END CLEVIS
8
835-550-002
NUT, JAM, 1/4-28
9
844-049-002
NUT, STOVER LOCK, 1/4-20
10
945-548-000
WASHER, FLAT, 1/4
