Phoenix LT4 User Manual

Phoenix LT4 Lane Machine Operation, Maintenance, and Parts Manual
61-900040-000 Rev. Date 01/22
7-31
10
4
6
11
5
8
1
7
3
2
9

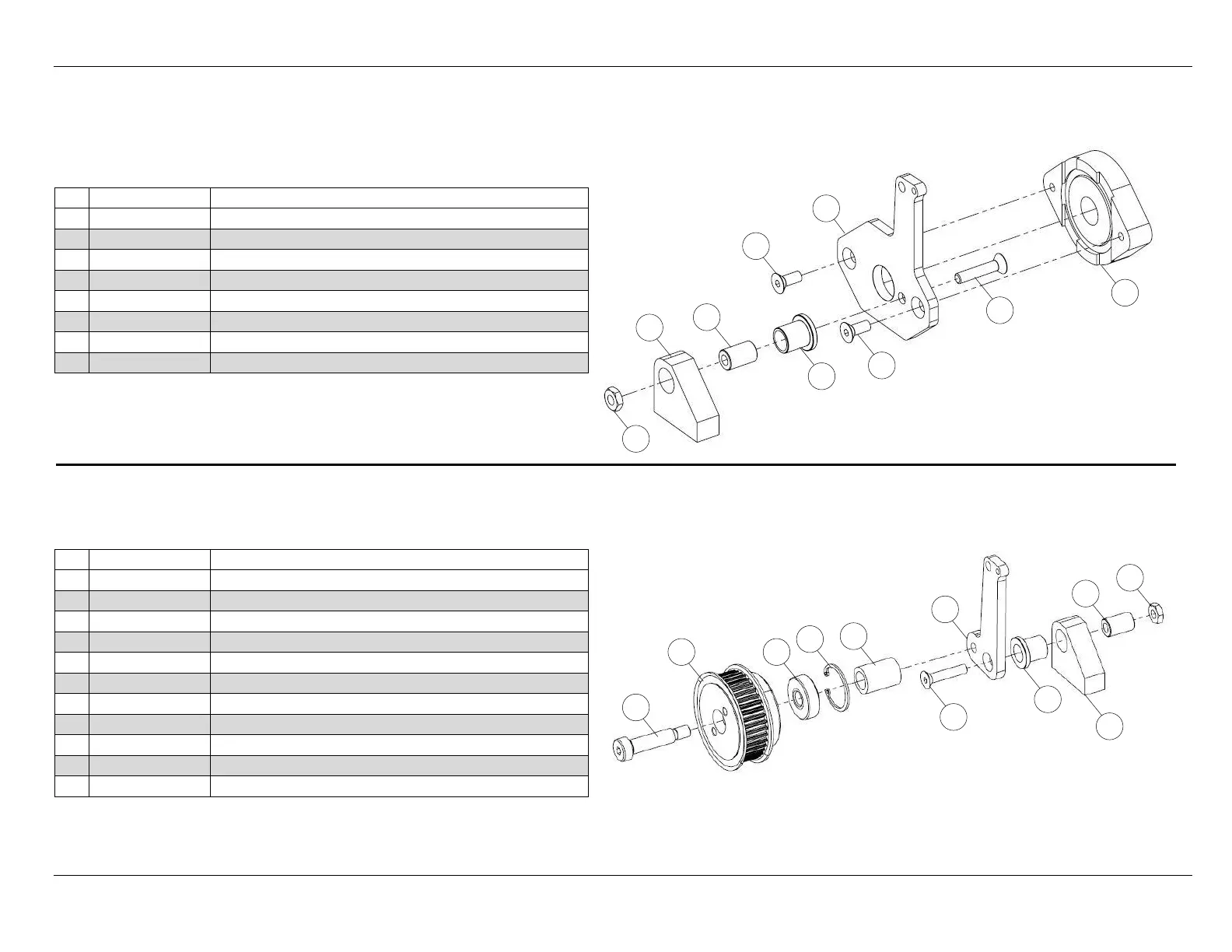

Left Hand Buffer Mounting Assembly - 294-116-090
NUMBER
DESCRIPTION
1
294-116-085
BUFFER PIVOT SHAFT
2
294-116-086
BUFFER PIVOT MOUNTING BLOCK
3
294-116-088
SWIVEL END BEARING
4
294-116-089
LEFT HAND BUFFER ARM
5
701-406-108
BUSHING, FLANGED, 1/2 X 5/8 X 3/4 X 1/8
6
808-849-100
SCREW, FLAT HEAD, 1/4-20 X 5/8
7
808-849-280
SCREW, FLAT HEAD, 1/4-20 X 1-3/4
8
836-549-008
NUT, HEAVY JAM, 1/4-20
Right Hand Buffer Mounting Assembly - 294-116-093
NUMBER
DESCRIPTION
1
294-116-084
RIGHT HAND BUFFER ARM
2
294-116-085
BUFFER PIVOT SHAFT
3
294-116-086
BUFFER PIVOT MOUNTING BLOCK
4
294-116-091
BRUSH PULLEY
5
294-116-092
BUFFER PULLEY COLLAR
6
701-013-040
BEARING, 10 mm X 30 mm X 9 mm
7
701-406-108
BUSHING, FLANGED, 1/2 X 5/8 X 3/4 X 1/8
8
808-849-280
SCREW, FLAT HEAD, 1/4-20 X 1-3/4
9
836-549-008
NUT, HEAVY JAM, 1/4-20
10
880-110-350
SCREW, HEX SHOULDER, 10 mm X 35 mm
11
919-019-050
SNAP RING, INTERNAL, 1.319 X .050
4
8
6
3
7
1
2
5
6
