Phoenix LT4 Lane Machine Operation, Maintenance, and Parts Manual
61-900040-000 Rev. Date 01/22
7-42

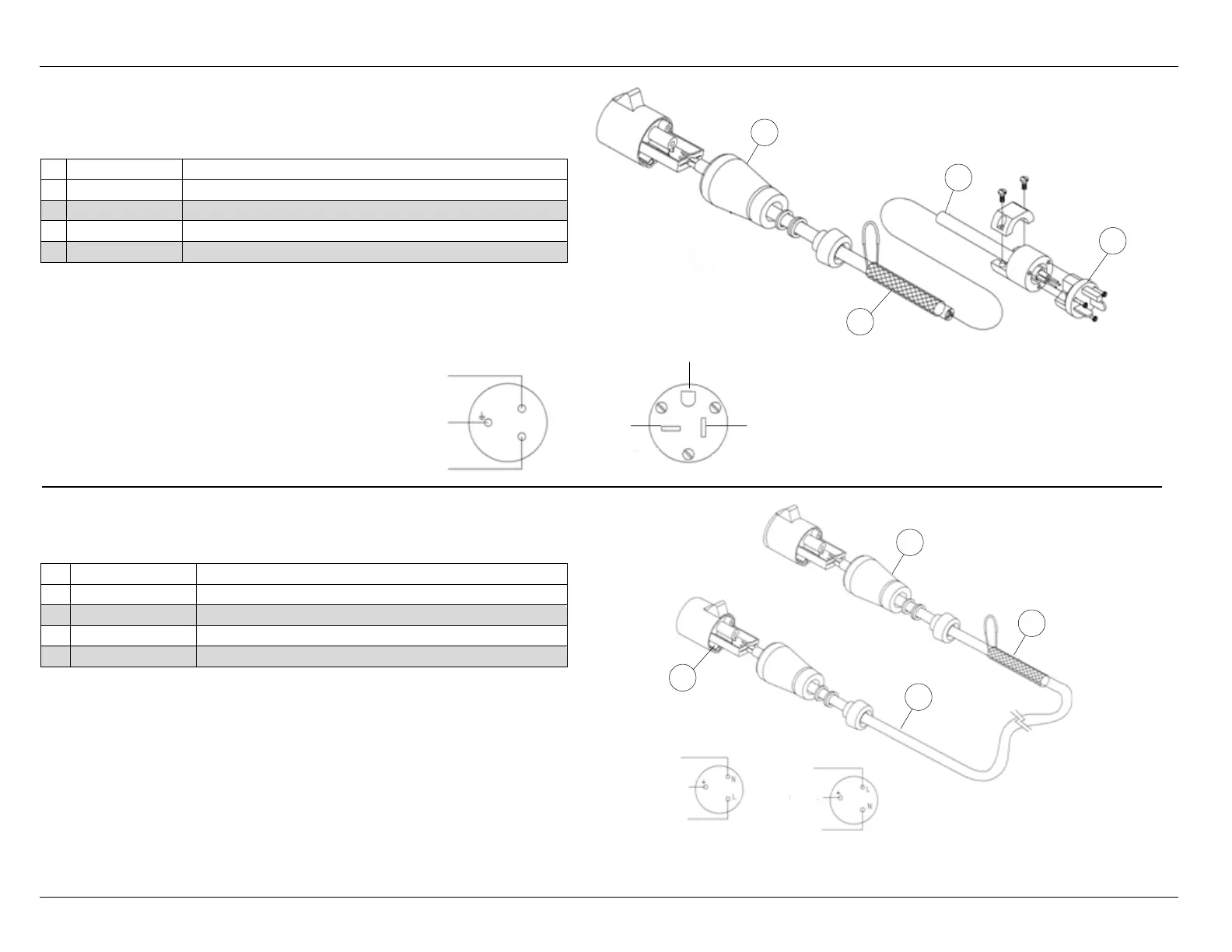

294-002-359 110V Power Cord Assembly
294-115-269 220V Power Cord Assembly
NUMBER
DESCRIPTION
1
04-443
SUPPORT GRIP, SINGLE EYE, SINGLE WEAVE
2
294-002-219
CONNECTOR BODY
3
294-002-249
HAMONIZED POWER CORD
4
294-115-344
PLUG BODY
NUMBER
DESCRIPTION
1
02-238
WIRE, 12/3, TYPE SJTO
2
02-397
125V, 20A, MALE PLUG
3
04-443
SUPPORT GRIP, SINGLE EYE, SINGLE WEAVE
4
294-002-219
CONNECTOR BODY
4
3
1
2
Green
Wire
Black
Wire
White
Wire
Grn / Yel
Black
White
2
1
4
3
Detail for wire connections
Blue
Grn / Yel
Blue
Brown
Grn / Yel
Brown
Machine End
Wall
Connection
End
Detail for wire connections
