Tools Needed:
 11/32" wrench
 #2 Phillips Screwdriver
To adjust the angle of the middle spray head:
1. Change the nozzle angle by tightening or loosening the adjustment screw through
the hole in the front as shown in Figure 4- 18.
 Tighten the screw to angle the nozzle towards lane surface (downward).
 Loosen the screw to angle the nozzle away from the lane surface (upward).
Tip: Make only small incremental adjustments to spray head angle.
2. After each adjustment, test the spray pattern using the Cleaner Pump option in the
Test screen. See Section 3.2.4 – The Test Screen.
3. When adjusted correctly, the cleaner will be sprayed across the entire width of the
lane with very little, if any, overspray into the gutters. If only one gutter is reached by
the spray, the rotation of the nozzle needs to be adjusted.
Adjustment
Screw
Loosen
Tighten

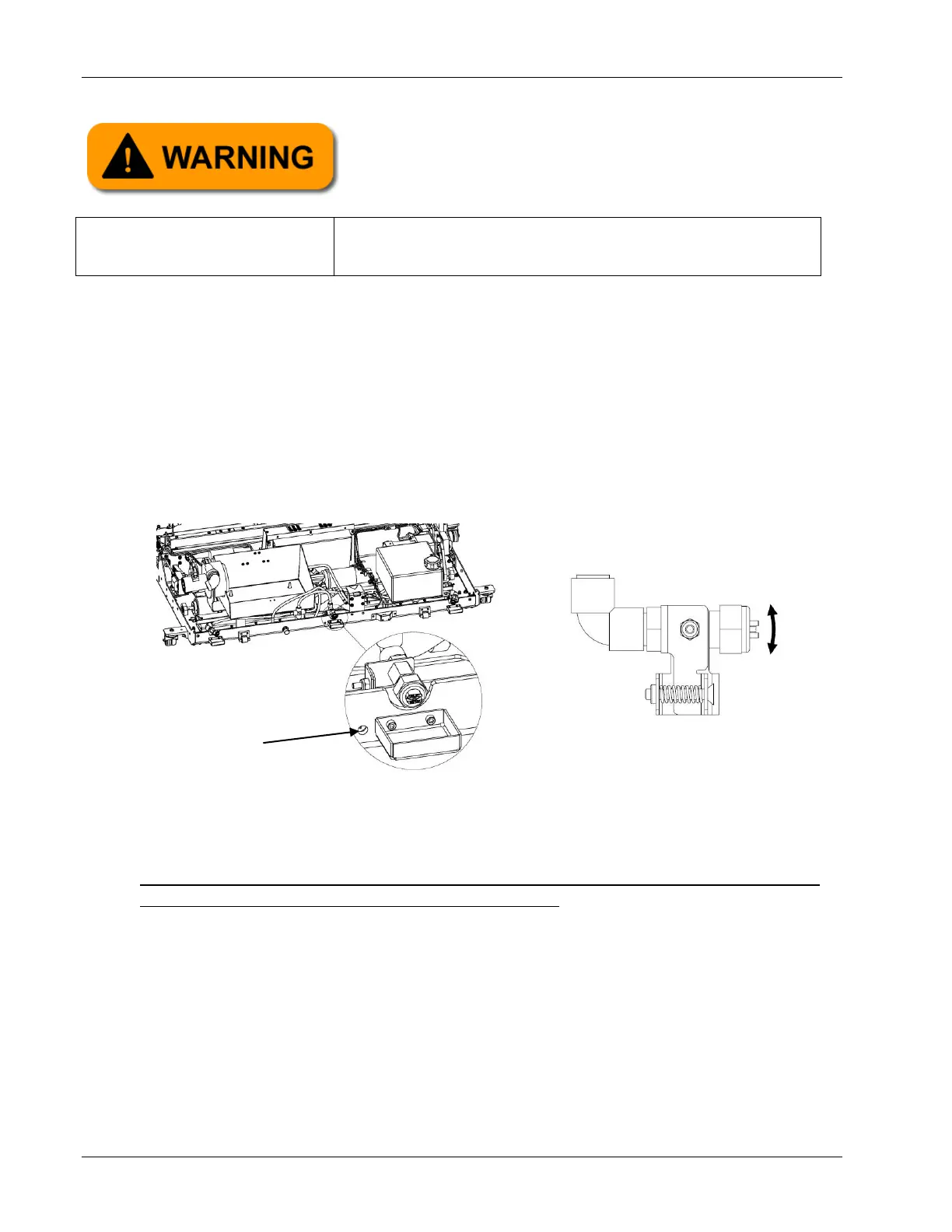

Figure 4- 18 – side view
Figure 4- 18
Always ensure the Phoenix LT4 Lane Machine is
disconnected from any power source before starting
any maintenance, replacement, or repair task.
