4.3.3.5 Addresses

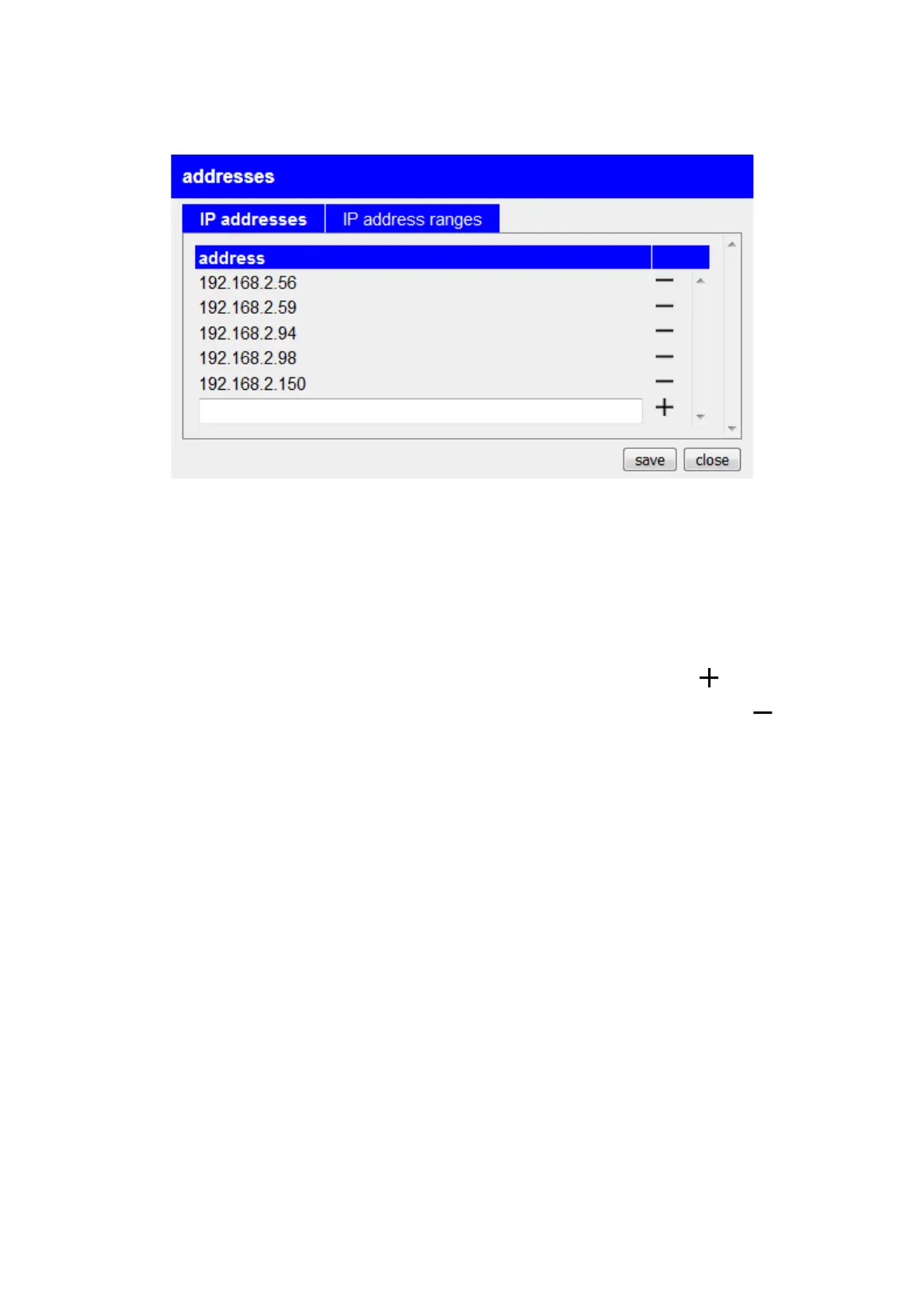

The “Addresses” dialog allows you to configure the addresses or even
entire address ranges for the peripheral devices. The address
configuration is divided into several tabs, with only the “IP addresses”
and “IP address ranges” tabs currently available. The respective list can
be opened by clicking on the tab.
If you would like to add a new address or an address range to a list, you
must fill out the last line of the table and then click the symbol click.
To delete an entry from the list, all you have to do is click the icon click
in the corresponding line.
In order to save the changes you have made, you must finally click on
the “Save” button.
Important:
The addresses configured here must either be in the same subnet as the
IP address of the device's peripheral interface or in the same subnet as
the devices connected to the partner device. Otherwise no
communication is possible.
Only the devices whose address is configured in this dialog and the
devices that were automatically recognized using DHCP, as well as,
when using the CONNECT connection type, the connected PC, are
authorized to communicate via the tunnel and thus with the devices of
the partner device.
Handbook CONNECT / CONNECT-II / CONNECT-CONTROL V1.13 Page 48
