3.2.3 IP switch option

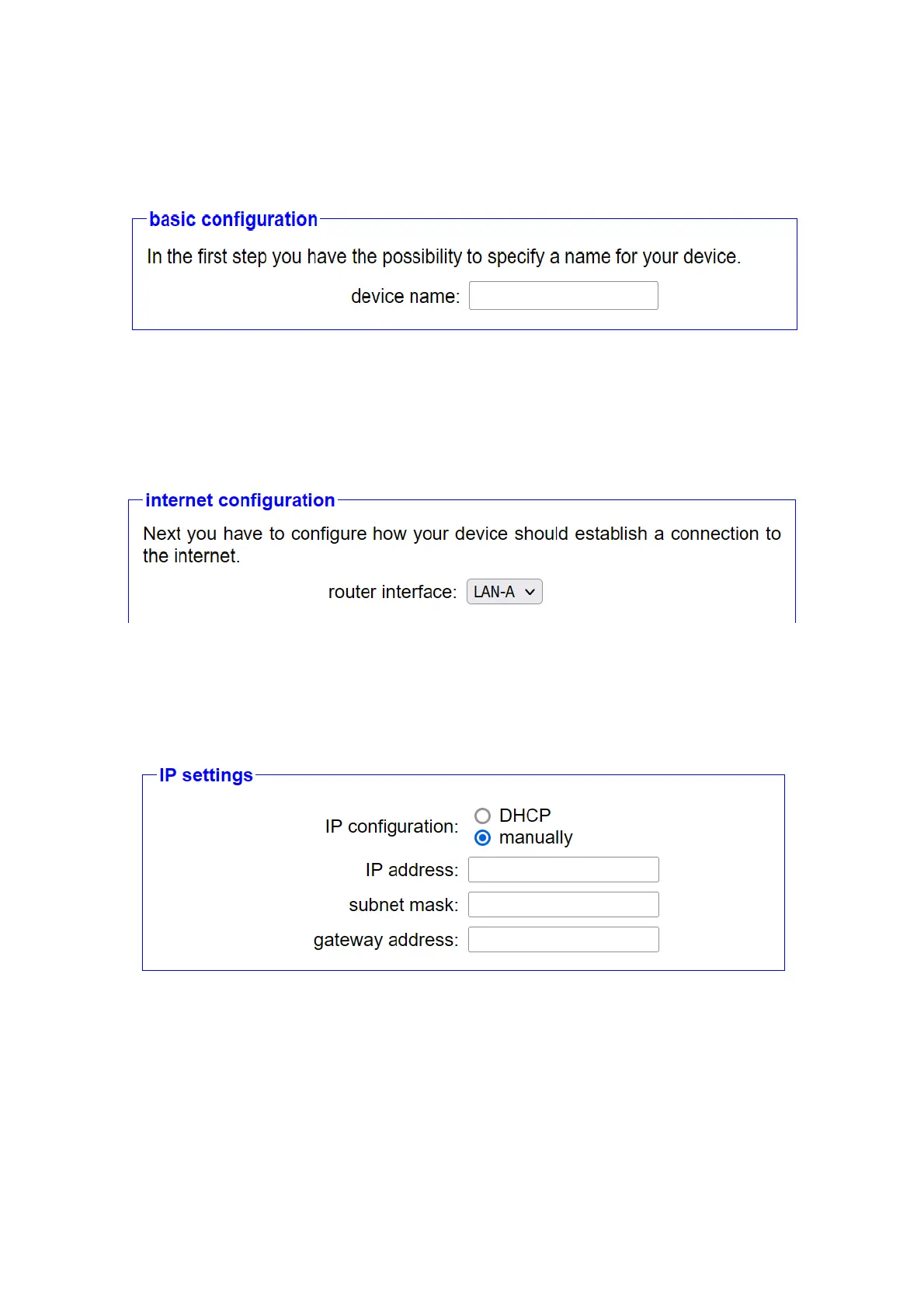

3.2.3.1 Basic configuration
In the first step you can give your device a name. This is optional and
only serves for easier identification.
3.2.3.2 Internet configuration
The next step is to configure the router interface. The router interface is
the interface from which you later want to reach the devices connected to
the peripheral interface via a converted IP address.
A field for manually configuring the IP parameters appears directly below
the selection list for the router interface. There you can first choose
whether the device should obtain the configuration from a server via
DHCP or whether the parameters should be set manually. When
configuring manually, you then have to enter the IP address and, if
necessary, the subnet mask as well as the IP address of the gateway.
If you have selected WLAN as the router interface, a block with WLAN
settings will also appear. There you specify which WLAN network the
Page 25 Handbook CONNECT / CONNECT-II / CONNECT-CONTROL V1.13
