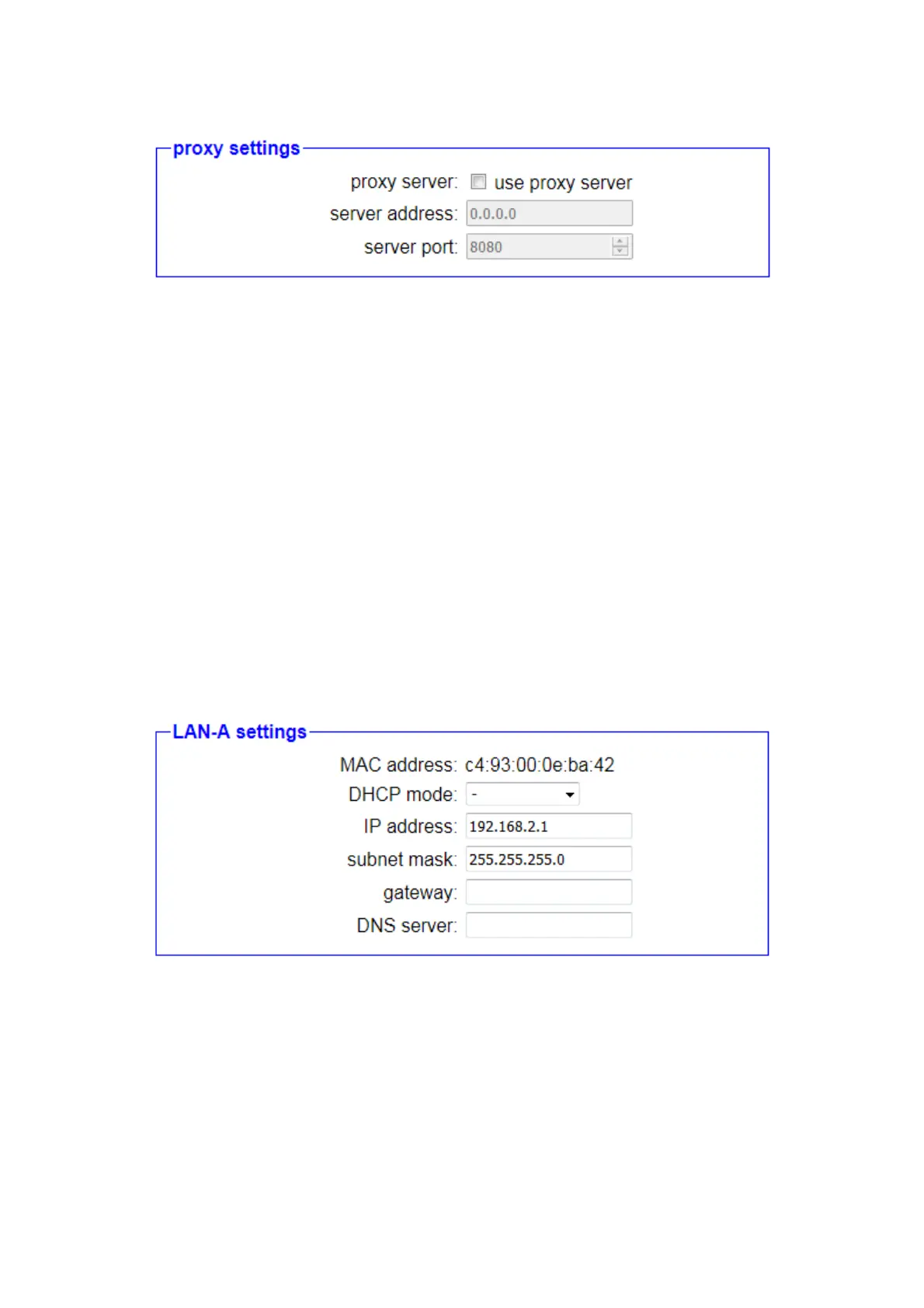

4.3.5.7 Proxy settings
In the “Proxy Settings” group you have the option of specifying a proxy
server that should be used to establish the Internet connection:
Proxy server: Indicates whether the Internet connection is via a
Proxy server should be established.
Server address: The IP address of the proxy server.
Server port: The TCP port of the proxy server.
(8080 → often used port for proxy servers)
A notice:
These settings are only displayed if GATEWAY is selected as the
connection type, as they are only relevant in this mode.
4.3.5.8 LAN-A / LAN settings
The settings in this group affect the network connection of the device for
the LAN-A interface (for CONNECT and CONNECT-II) or LAN interface
(for CONNECT-CONTROL):
MAC address: The MAC address of the interface (this can be
cannot be changed).
DHCP mode: - The device is over the set
Address available.
Page 59 Handbook CONNECT / CONNECT-II / CONNECT-CONTROL V1.13
