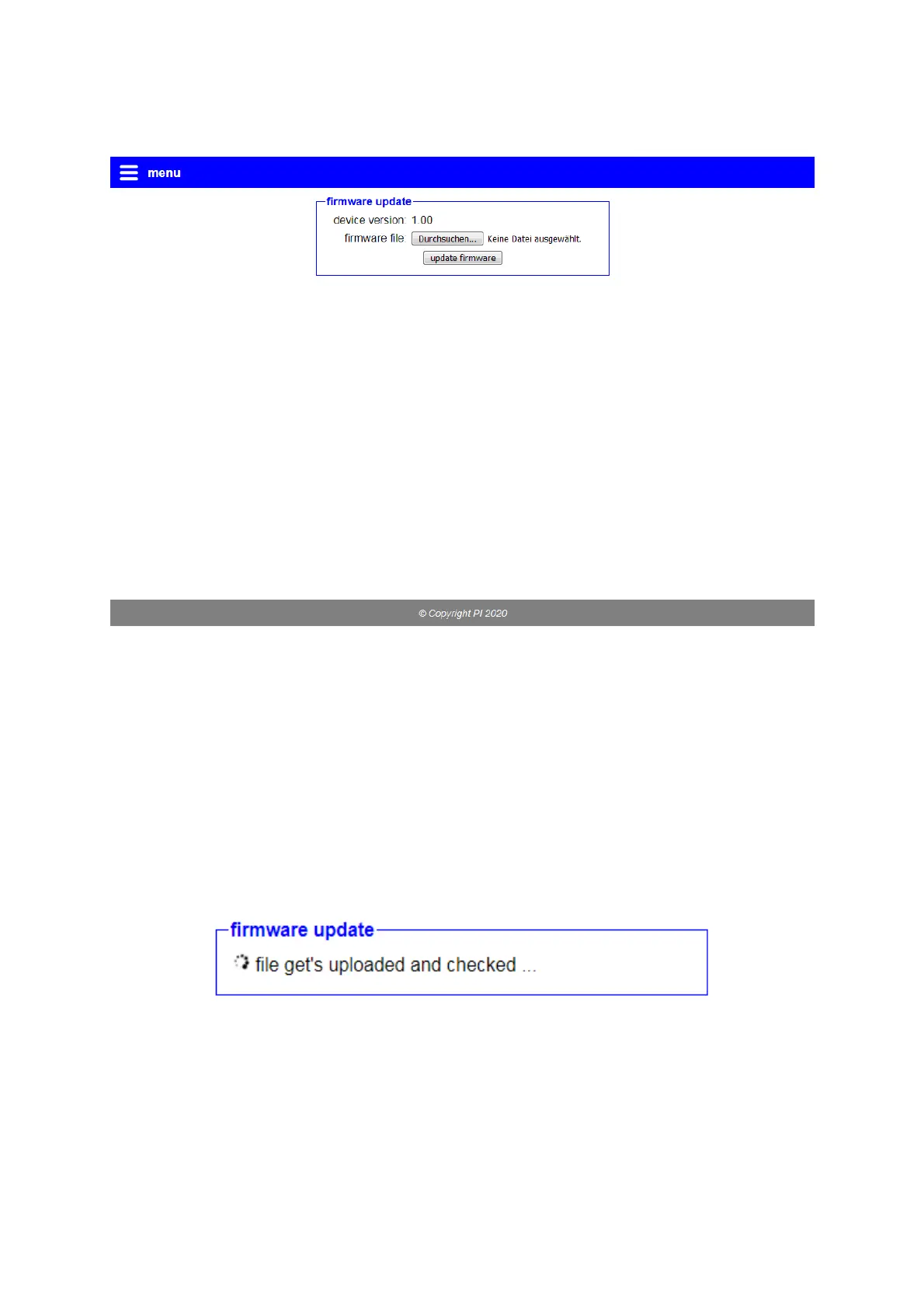

4.3.6 Firmware/Software Update page
To update the device's firmware or software, you can click on the
"Firmware update" or "Software update" entry in the menu. On the page
you will see the current version available in your device and have the
option to select a file.
Once you have selected the firmware file (this is a file with the
extension .bin) or software file (this is a file with the extension .ipk), you
can click on the button to start the update process . The following
message then appears:
Handbook CONNECT / CONNECT-II / CONNECT-CONTROL V1.13 Page 70
