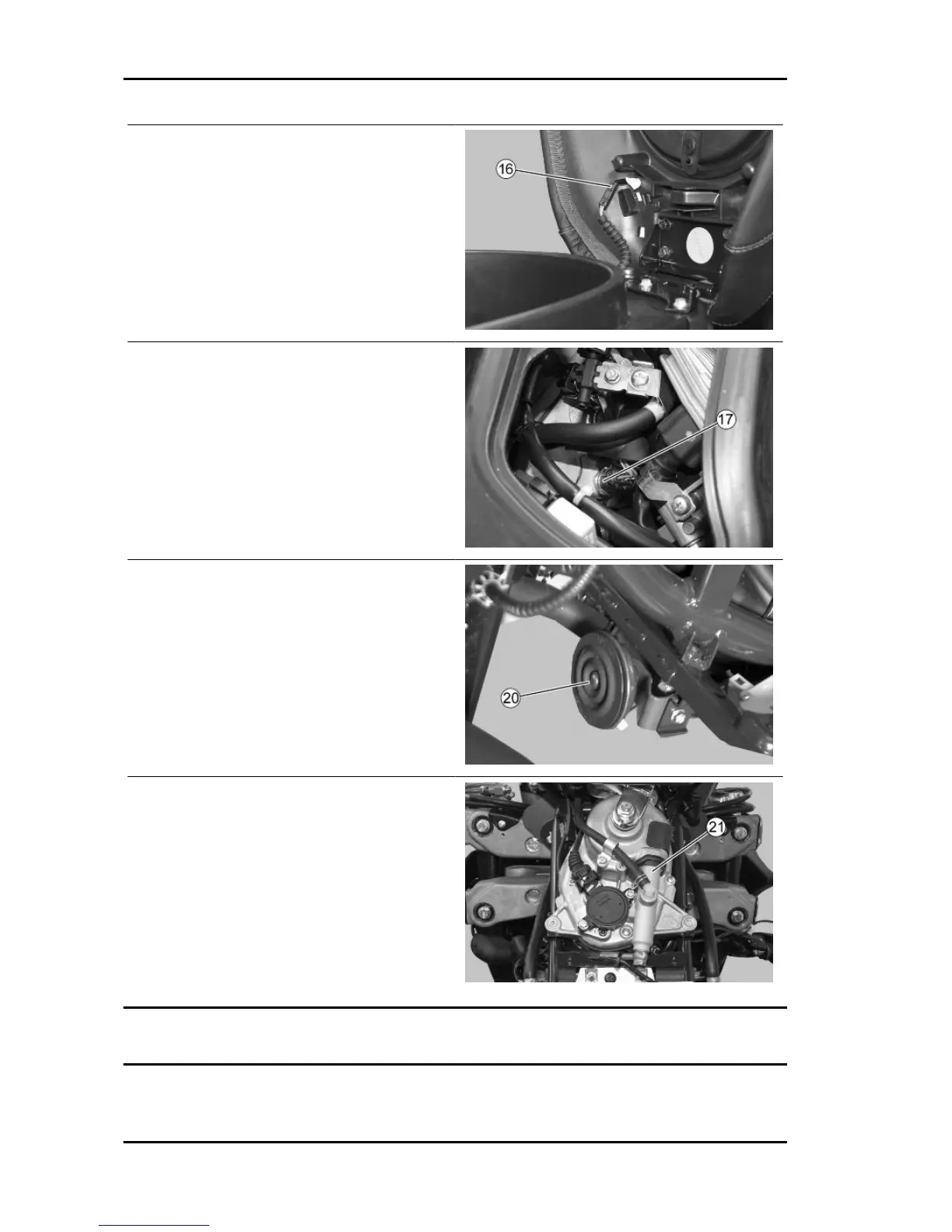

16 - Rider presence sensor: open the saddle and
remove the cover to reach the rider presence sen-
sor.
17 - Coolant temperature sensor: remove the lid of
the helmet compartment and disconnect the con-
nector to reach it.
20 - Horn: remove the shield back plate lower side
to reach it.
15 - Parking control unit: remove the front shield
to reach it.
Conceptual diagrams
Electrical system MP3 400 i.e.
ELE SYS - 10
