Piper ARROW III - Cable Tension Vs. Ambient Temperature

To Next Page

To Previous Page

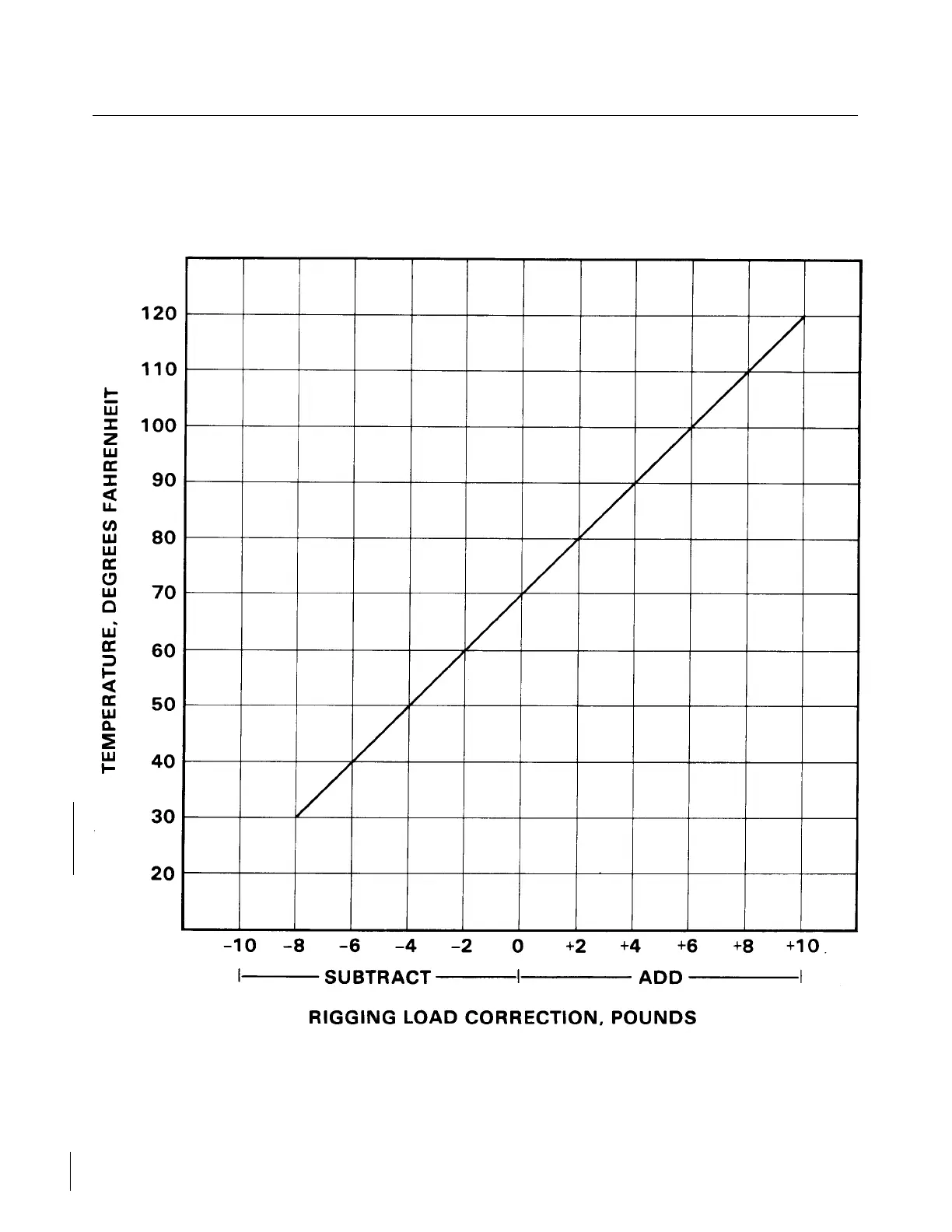

TABLE V-ll. CABLE TENSION VS. AMBIENT TEMPERATURE

Revised: 2/13/89

1F10

* CHEROKEE ARROW III SERVICE MANUAL

SURFACE CONTROLS
