Piper ARROW III - Ignition Schematic

To Next Page

To Previous Page

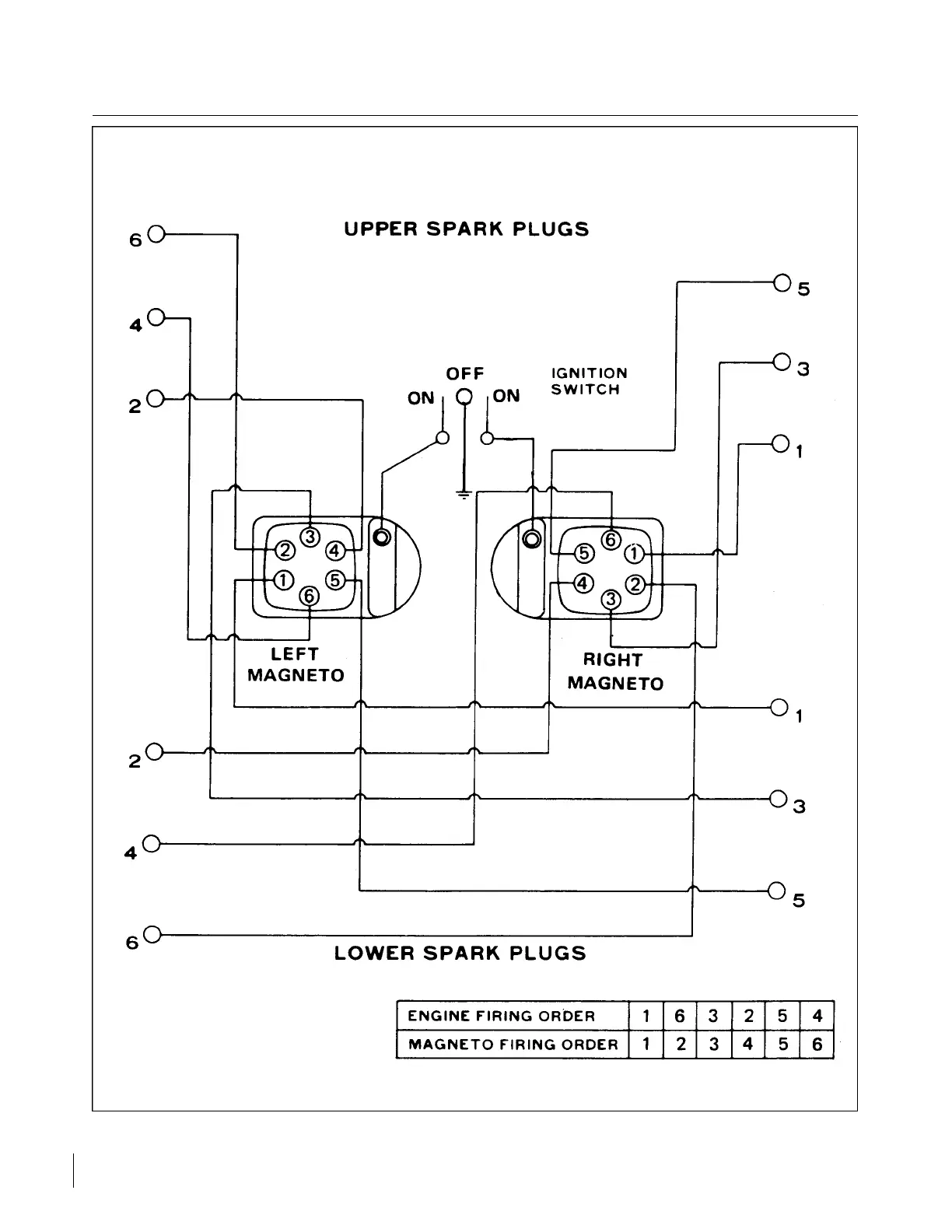

Figure 8-28. Ignition Schematic

Revised: 8/31/77

2B21

CHEROKEE ARROW III SERVICE MANUAL

POWER PLANT - CONTINENTAL
