Piper ARROW III - Hydraulic System Installation

To Next Page

To Previous Page

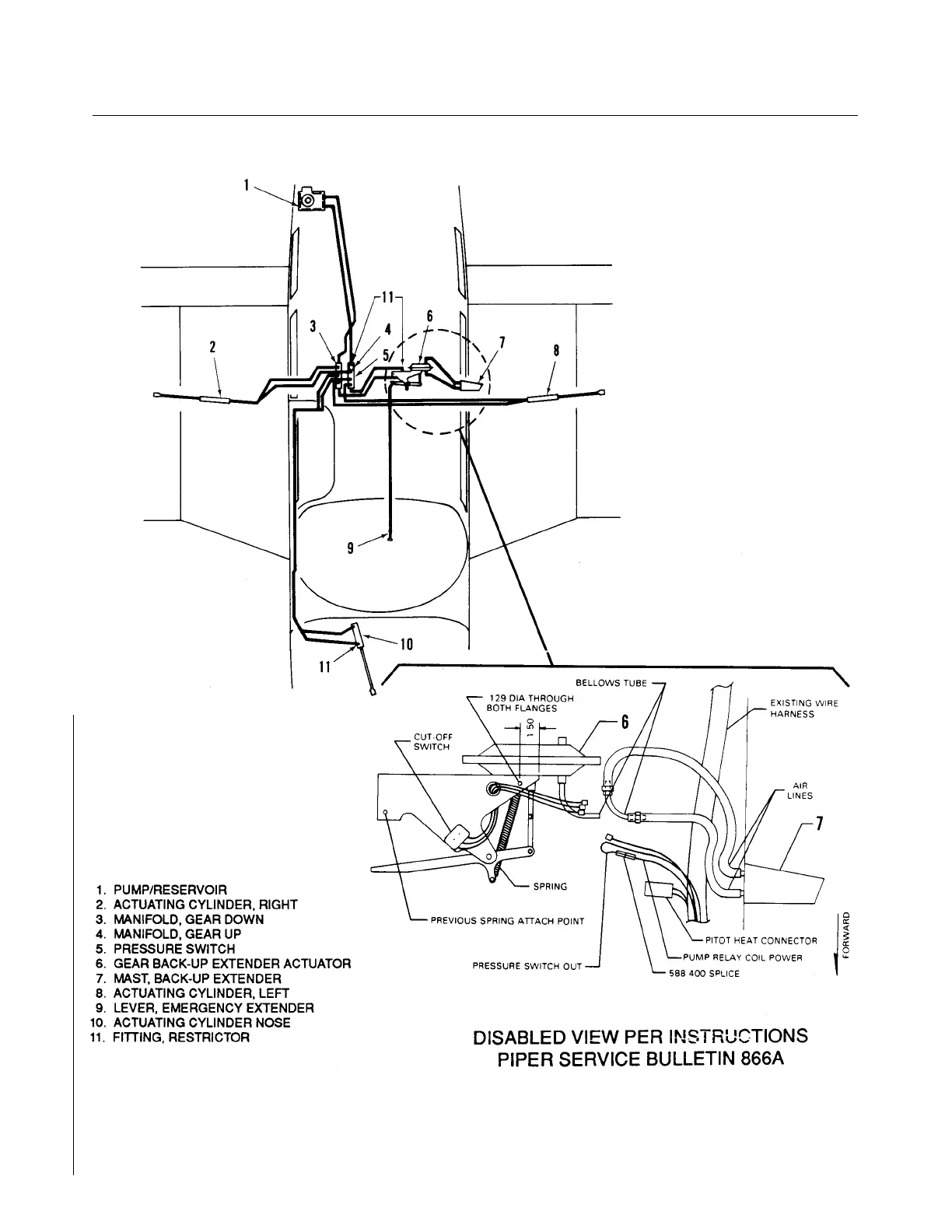

Figure 6-2. Hydraulic System Installation
Revised: 2/13/89
1H10
* CHEROKEE ARROW III SERVICE MANUAL
HYDRAULIC SYSTEM
