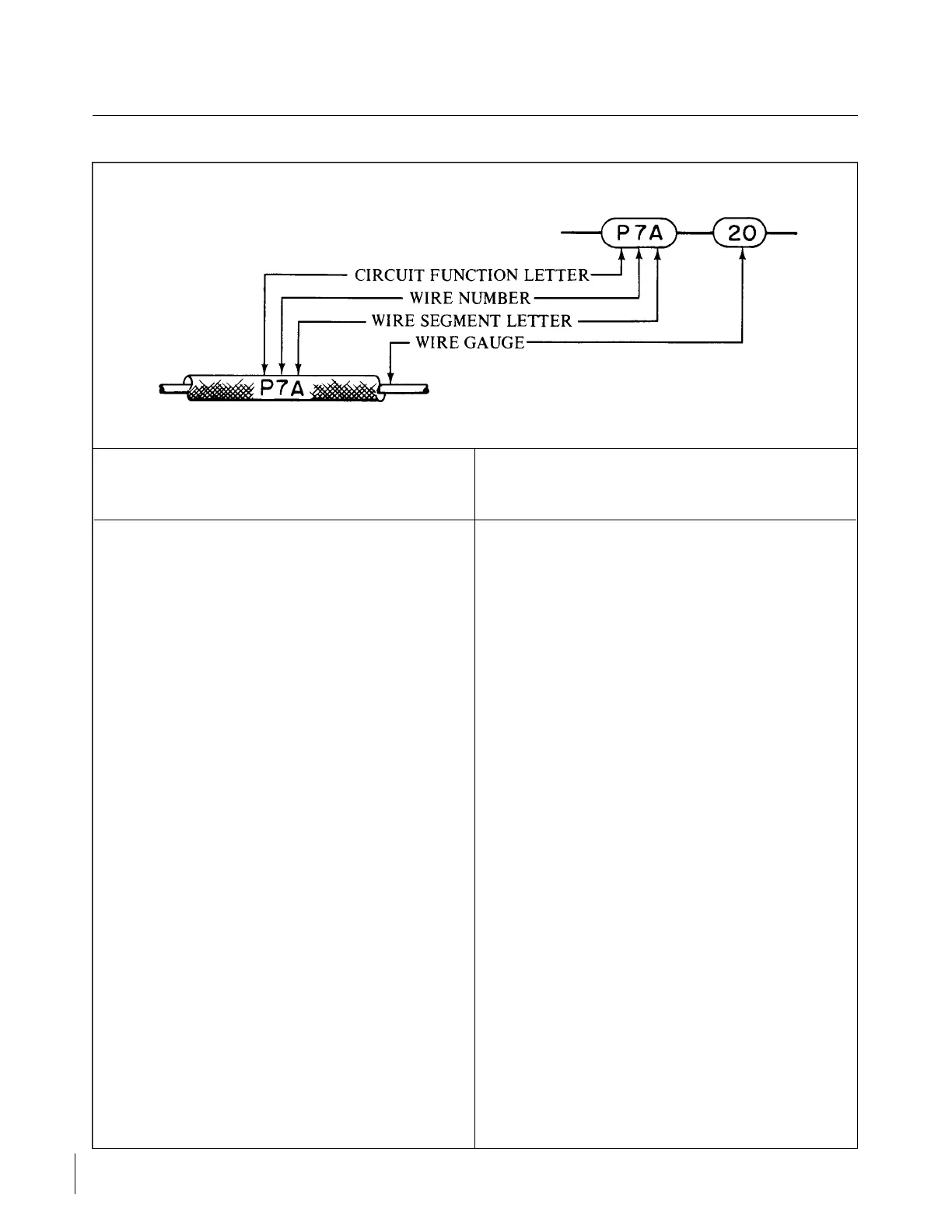

TABLE XI-VII. ELECTRICAL WIRE CODING

CIRCUIT FUNCTION

LETTER CIRCUITS

A AUTOPILOT

B CONTROL SURFACE

E ENGINE INSTRUMENT

F FLIGHT INSTRUMENT

G LANDING GEAR

H HEATER - VENTILATING & DEICING

L LIGHTING

P POWER

Q FUEL & OIL

RP RADIO POWER

RZ RADIO AUDIO & INTERPHONE

J IGNITION

RG RADIO GROUND

W WARNING

K STARTER

Revised: 2/13/89

2J5

CHEROKEE ARROW III SERVICE MANUAL
