Piper ARROW III Service Manual

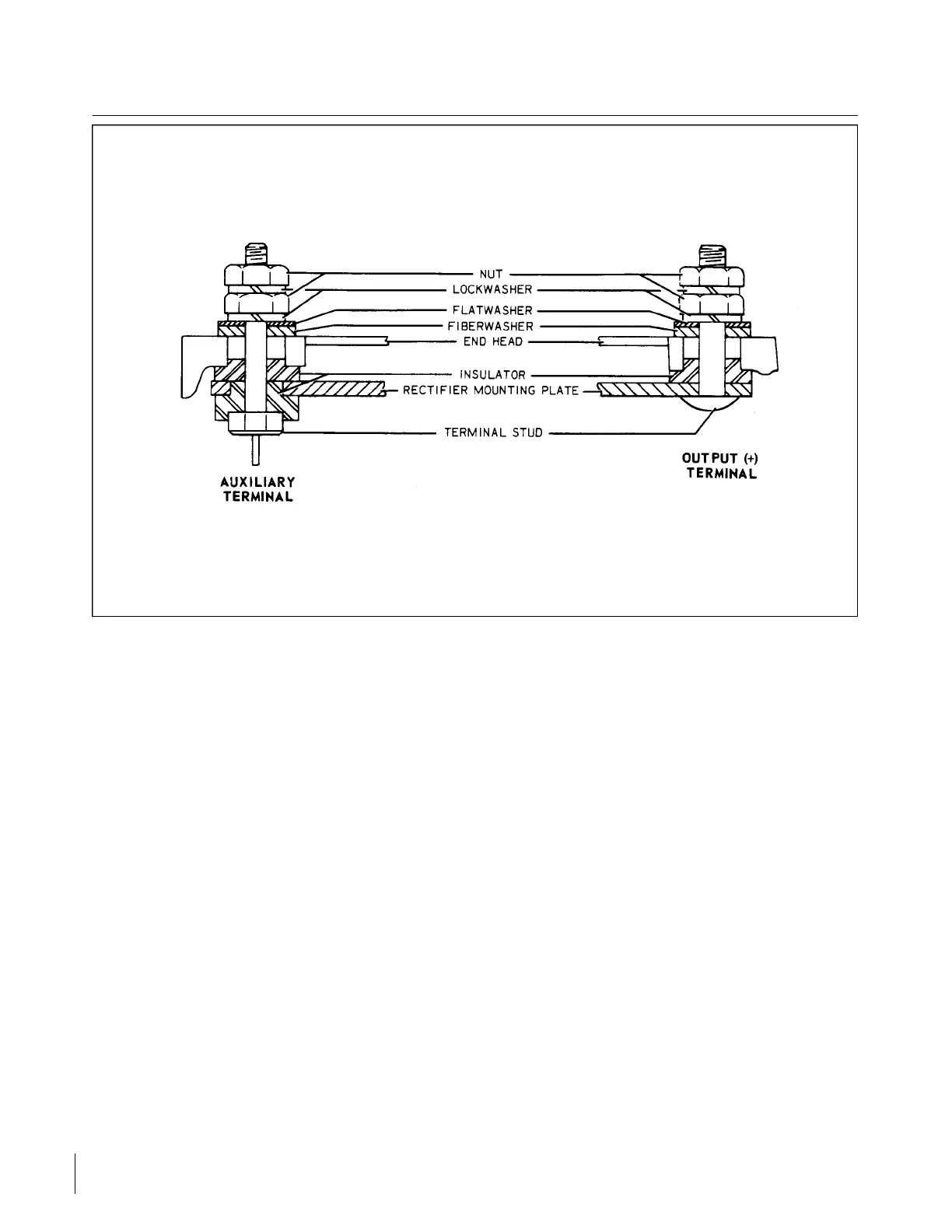

Figure 11-32. Terminal Assembly
11-40. TESTING OF ALTERNATOR.
a. Wiring connections for bench testing the alternator are shown in Figure 11-34. Refer to the individual
specification pages for output test figures. Adjust the carbon pile, if necessary, to obtain the specified
voltage.
b. After bench testing the alternator, install the safety wire and install the alternator on the engine.
NOTE
Always refer to the wiring diagram when installing the alternator or testing
the alternator.
CAUTION
Do not test alternators used on PA-28R-201T at full rated output for more
than 30 seconds unless adequate-air pressure for cooling is supplied.
11-41. ALTERNATOR SERVICE TEST SPECIFICATION. Prestolite specifications for the 14-volt alternators
installed on PA - 2 8 R - 2 0 1 T. Prestolite alternators are also used on PA-28R-201 airplanes equipped with air
conditioning.
Revised: 2/13/89
2H17
CHEROKEE ARROW III SERVICE MANUAL
ELECTRICAL SYSTEM

Piper ARROW III Specifications

General

Manufacturer	Piper Aircraft
Model	ARROW III
Engine	Lycoming IO-360-C1C6
Horsepower	200 hp
Maximum Takeoff Weight	2, 750 lb (1, 247 kg)
Seating Capacity	4
Propeller	2-blade, constant speed
Length	24 ft 7 in (7.49 m)
