Piper ARROW III - Fabricated Stabilator Rigging Tool

To Next Page

To Previous Page

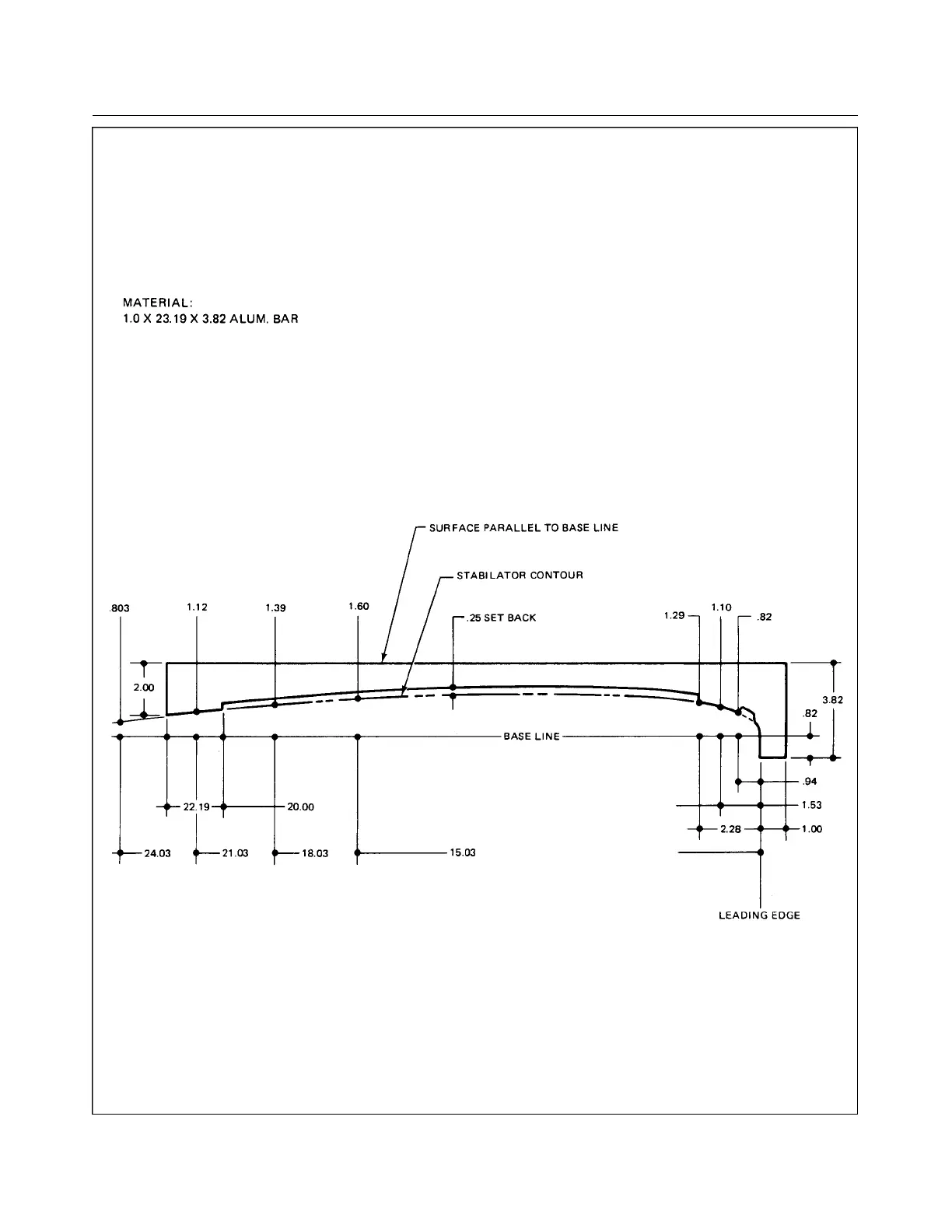

Figure 5-20. Fabricated Stabilator Rigging Tool

Issued: 12/15/76

1G18

* CHEROKEE ARROW III SERVICE MANUAL

SURFACE CONTROLS
