Piper ARROW III Service Manual

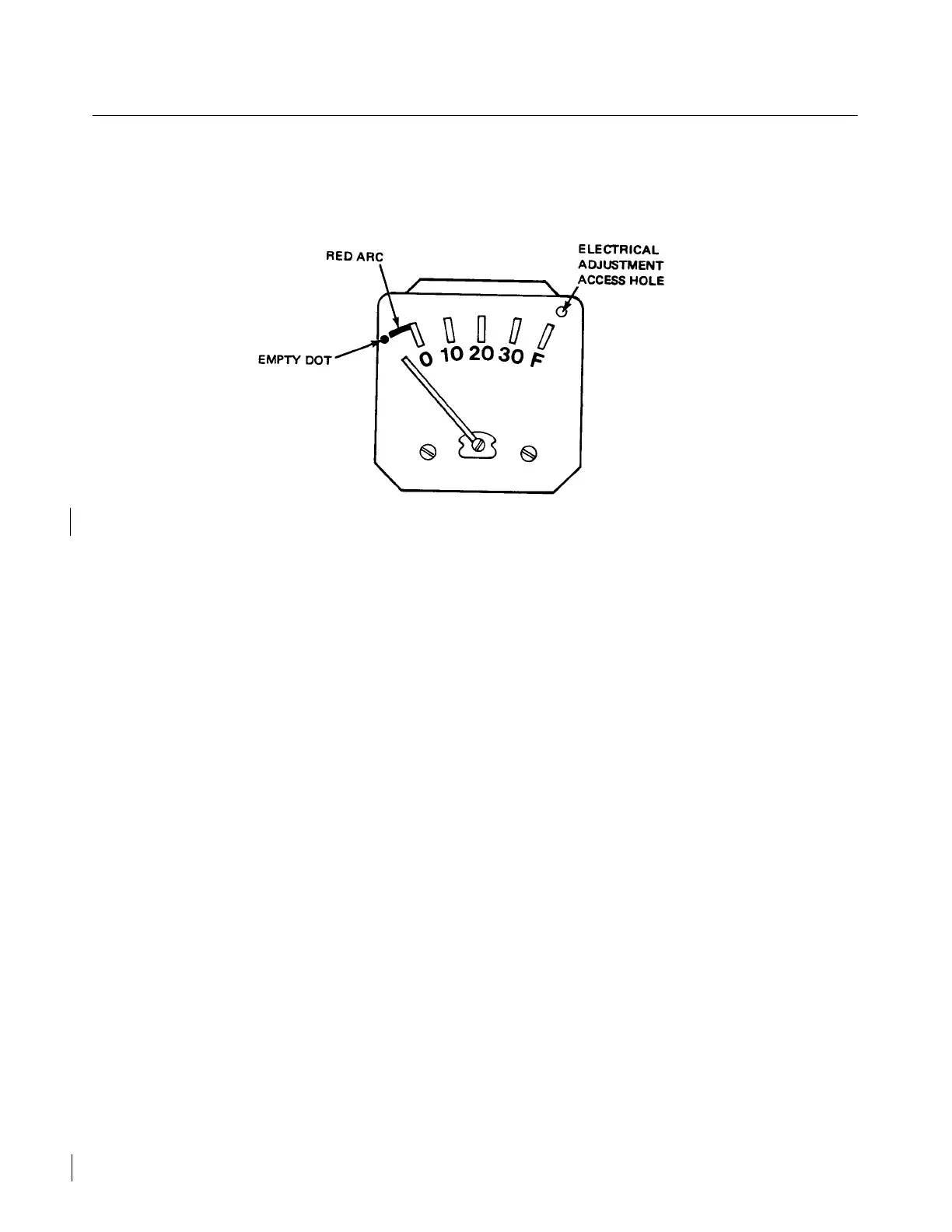

Figure 9-5. Fuel Quantity Indicator
9-12. FUEL SELECTOR VALVE.
9-13. REMOVAL OF FUEL SELECTOR VALVE.
a. Remove three screws holding selector cover and the screw holding the handle. It will be necessary to
remove side panel to gain access to the selector valve.
b. Remove selector handle and cover.
c. Disconnect fuel lines from the selector valve.
d. Remove fuel valve assembly by removing attaching screws.
9-14. INSTALLATION OF FUEL SELECTOR VALVE.
a. Secure the valve to the bulkhead attachment location with attaching screws.
b. Connect the fuel lines to the valve.
c. Install side panel.
d. Install the selector cover with attaching screws.
e. Install the valve control handle with attaching screws.
9-15. FUEL FILTER BOWL AND SCREEN. (Refer to Figure 9-6.)
9-16. REMOVAL OF FUEL FILTER BOWL AND HOUSING.
a. Ascertain that the fuel shutoff is in the off position.
b. Remove the engine cowlings by releasing the cowl fasteners or the attaching screws, depending on the
type installed. Be certain that all electrical leads are disconnected prior to removal of the cowl.
c. Disconnect the fuel lines from the filter bowl housing.
d. Cut the safety wire, loosen the bail nut, move the bail wire to the side and remove the bowl.
e. Remove the housing of the filter bowl by spreading the ends of the bail wire allowing the housing to
be lifted from the bracket.
Revised: 2/13/89
2E19
CHEROKEE ARROW III SERVICE MANUAL
FUEL SYSTEM

Piper ARROW III Specifications

General

Manufacturer	Piper Aircraft
Model	ARROW III
Engine	Lycoming IO-360-C1C6
Horsepower	200 hp
Maximum Takeoff Weight	2, 750 lb (1, 247 kg)
Seating Capacity	4
Propeller	2-blade, constant speed
Length	24 ft 7 in (7.49 m)
