Polaris IQ 2007 User Manual

8.19
Steering and Suspensions
8

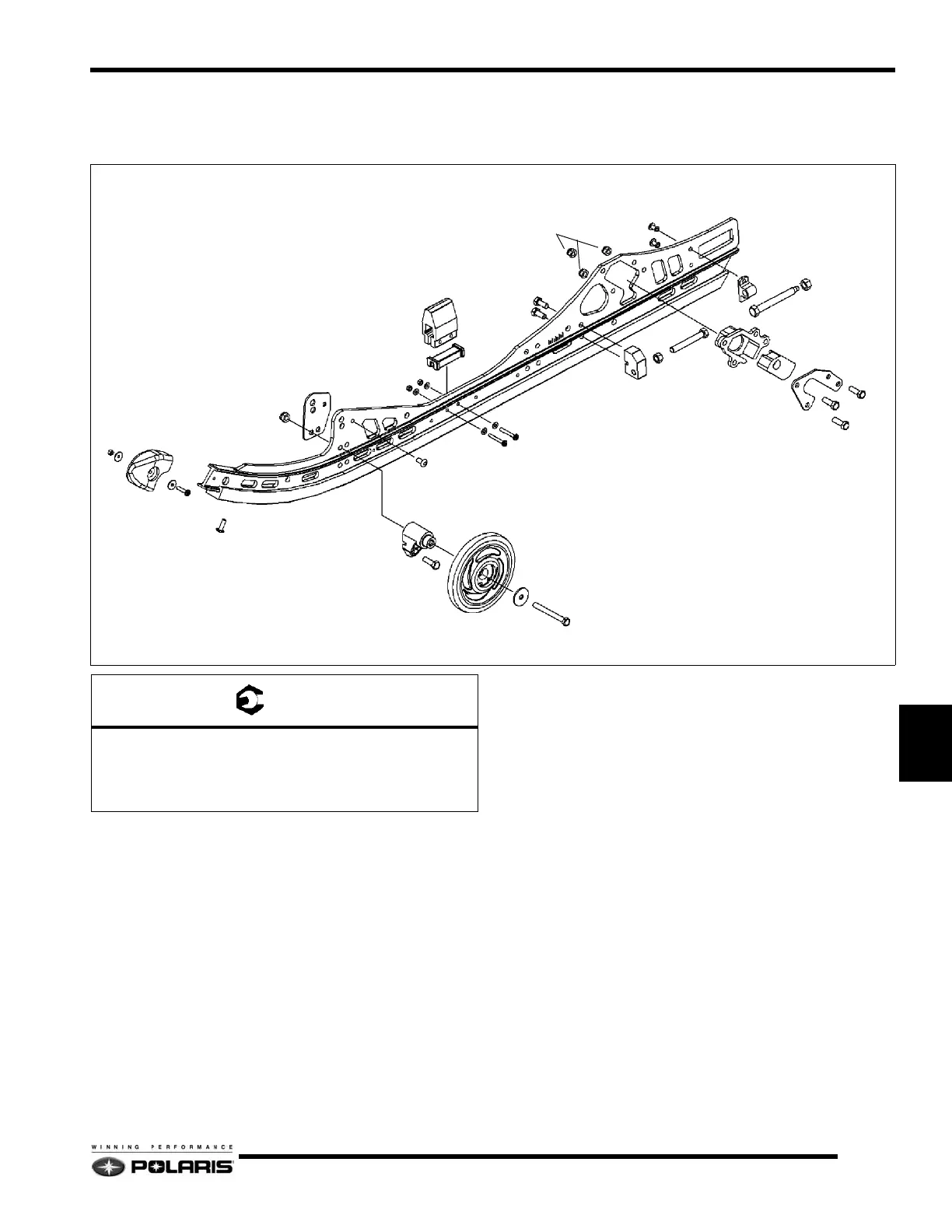

M-10 128 Rail Assembly
Assembly Notes
• Never re-use Nylock nuts. Always replace with new
parts.
• All pivots must rotate freely after tightening fasteners.
• Apply Polaris Premium All Season Grease to all grease
zerks as outlined in the periodic maintenance table.
RAIL TIP
WHEEL MOUNTING
BOGIE WHEEL
BUMPER
FRA BLOCK
COUPLER BLOCK
COUPLER
IDLER ADJUSTER
A
C
C
B
B
B
B
D
D
= T
A = 3 - 6 Ft.Lb. (4 - 8 Nm)
B = 19 Ft.Lb. (26 Nm)
C = 35 In.Lb. (4 Nm)
D = 35 Ft.Lb. (47 Nm)
