Polaris IQ 2007 - Page 227

8.24
Steering and Suspensions
IQ Switchback 144 Pivots / Rear Idler
Assembly Notes
• Never re-use Nylock nuts. Always replace with new
parts.
• All pivots must rotate freely after tightening fasteners.
• Apply Polaris Premium All Season Grease to all grease
zerks as outlined in the periodic maintenance table.

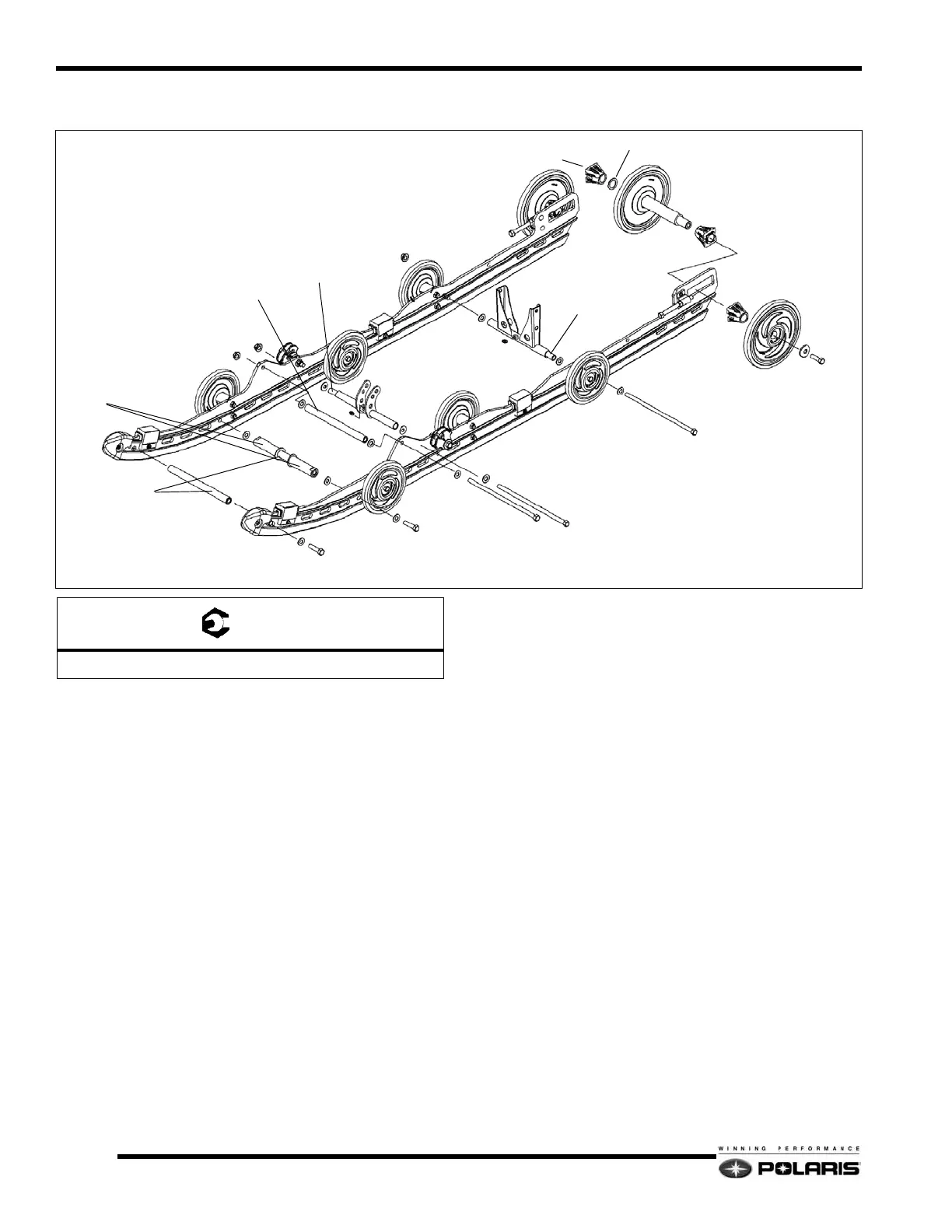

SHAFT
CENTERING SLEEVES
REAR PIVOT
FRONT TORQUE ARM SHAFT
SHOCK PIVOT
IDLER WHEEL
SPACER
A
A
A
A
A
A
SHAFT
SPACER
WASHER
INNER SHAFT
= T
A = 35 Ft.Lb. (47 Nm)
