Polaris IQ 2007 User Manual

8.23
Steering and Suspensions
8

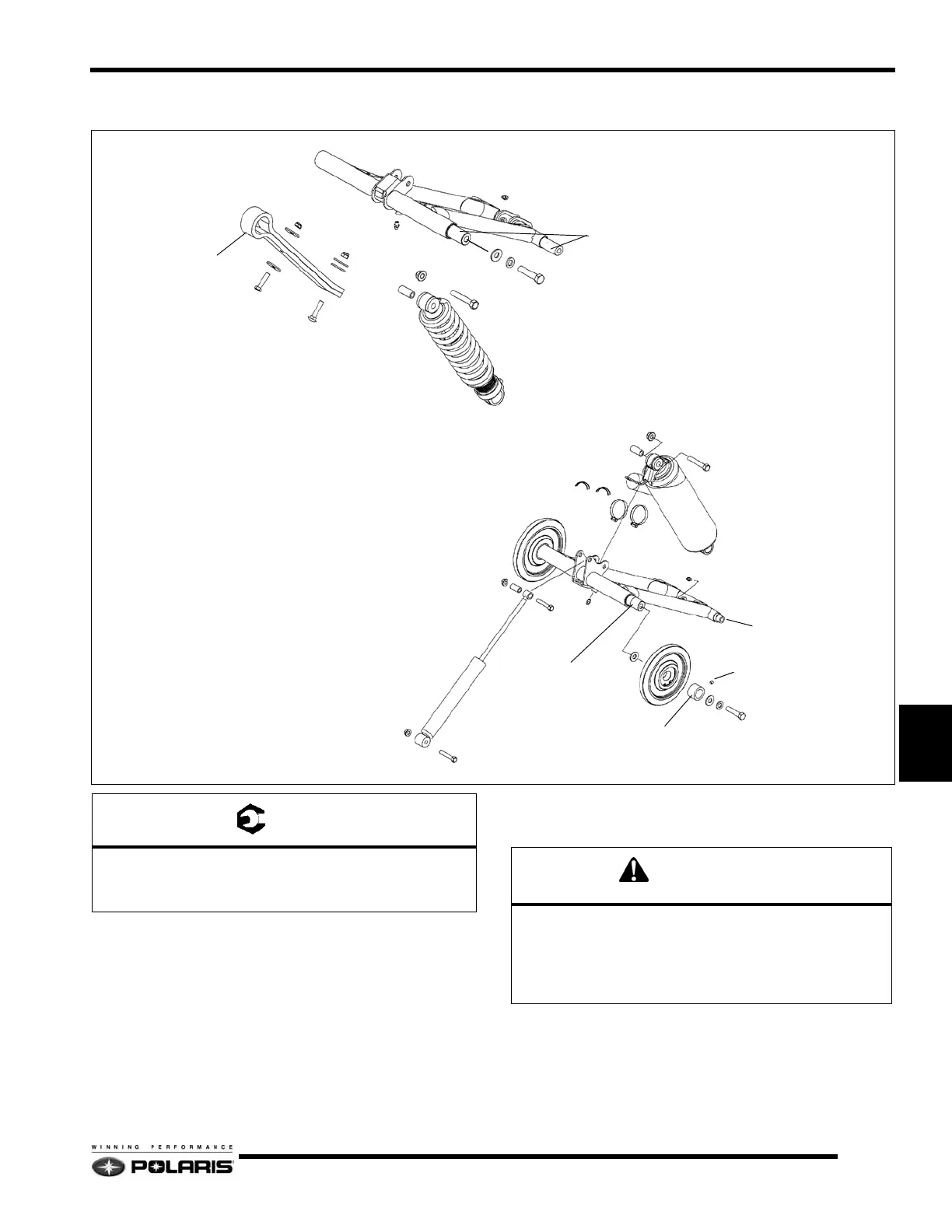

M-10 136 Front / Rear Torque Arms
Assembly Notes
• Never re-use Nylock nuts. Always replace with new
parts.
• All pivots must rotate freely after tightening fasteners.
• Apply Polaris Premium All Season Grease to all grease
zerks as outlined in the periodic maintenance table.
MID TRACK SHOCK
CARRIER WHEEL
REAR TORQUE ARM
FRONT TORQUE ARM
SHOCK ASSEMBLY
SHOCK ASSEMBLY
LIMITER STRAP
SHAFTS
SPACER
SET SCREW
UPPER SHAFT
LOWER SHAFT
A
A
B
B
B
(M-10 ACE ONLY)
B
Fastener = 35 Ft.Lb. / 47 Nm)
C
C
= T
A = 12 Ft.Lb. (16 Nm)
B = 35 Ft.Lb. (47 Nm)
C = 70 Ft.Lb. (94 Nm)
CAUTION
The fasteners securing the rear suspension to the
tunnel are pre-coated with a locking agent when new.
Never re-use these fasteners when removed. Always
use new pre-coated fasteners when mounting the
suspension to the tunnel.
