Steering and Suspensions

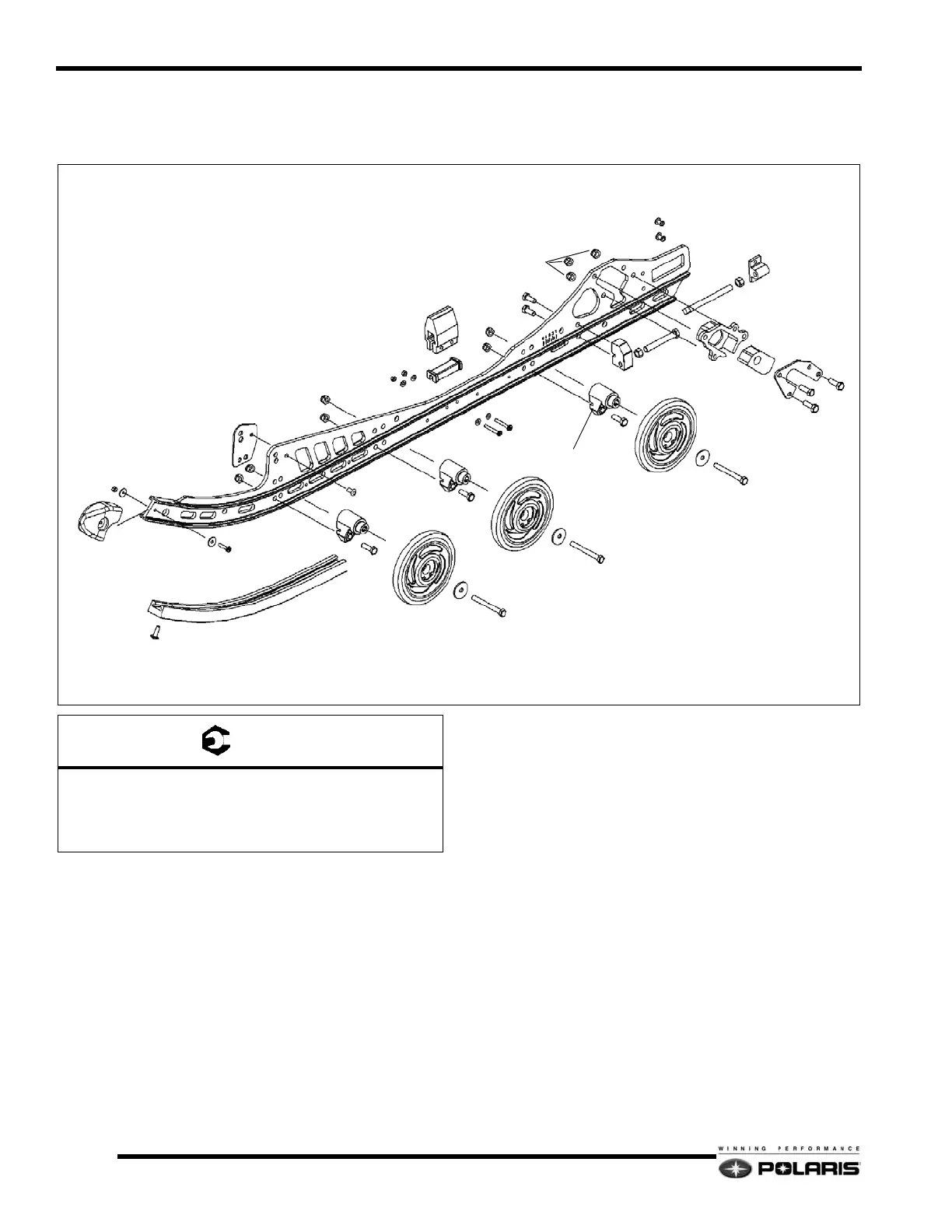

M-10 136 Rail Assembly
Assembly Notes
• Never re-use Nylock nuts. Always replace with new
parts.
• All pivots must rotate freely after tightening fasteners.
• Apply Polaris Premium All Season Grease to all grease
zerks as outlined in the periodic maintenance table.
SLIDER
BOGGIE WHEEL
WHEEL MOUNT
BUMPER
RAIL TIP
IDLER WHEEL ADJUSTER
COUPLER BLOCK
COUPLER
FRA BLOCK
A
C
C
B
B
B
B
B
B
B
B
D
D
(2006)
= T
A = 3 - 6 Ft.Lb. (4 - 8 Nm)
B = 19 Ft.Lb. (26 Nm)
C = 35 In.Lb. (4 Nm)
D = 35 Ft.Lb. (47 Nm)
