8.21
Steering and Suspensions
8

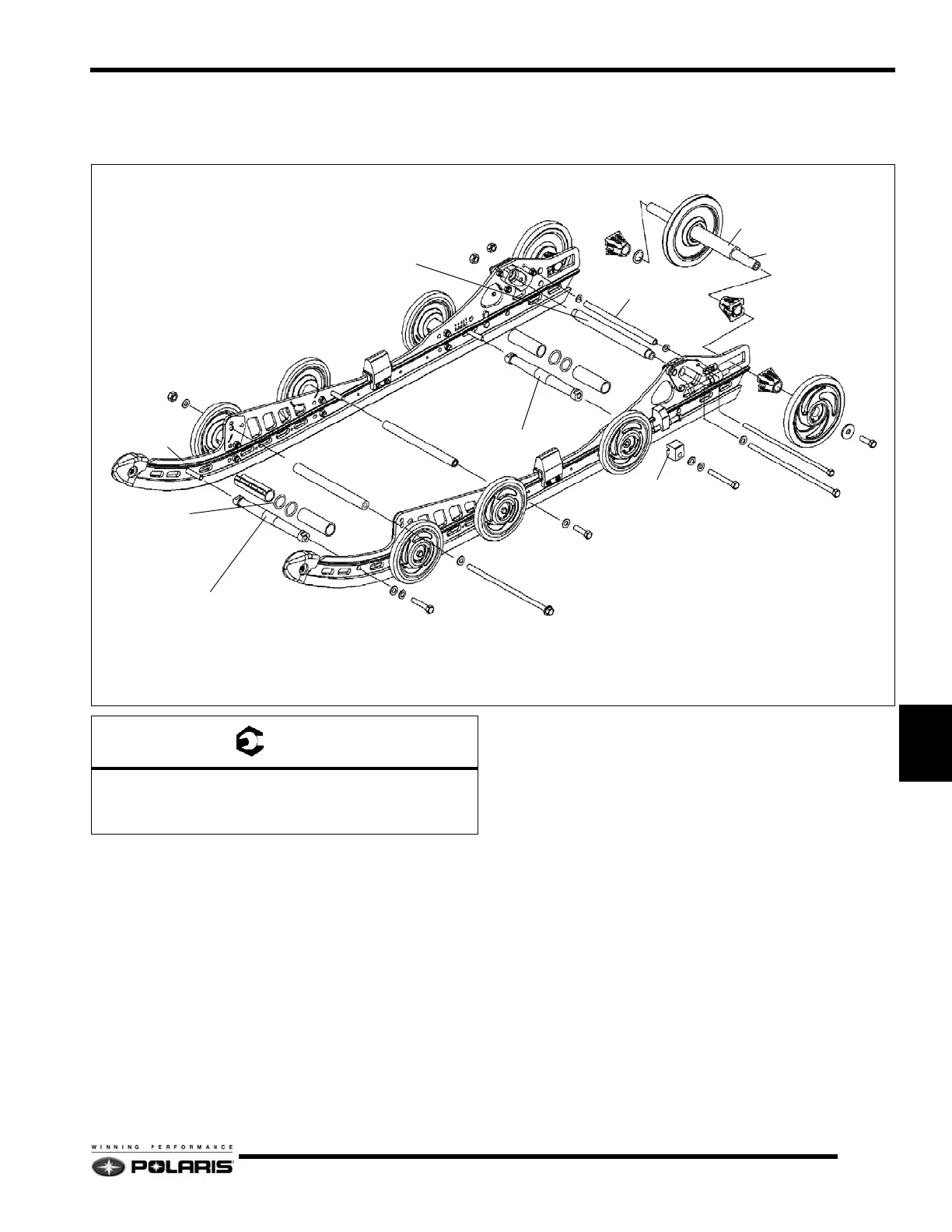

M-10 136 Pivots / Rear Idler
Assembly Notes
• Never re-use Nylock nuts. Always replace with new
parts.
• All pivots must rotate freely after tightening fasteners.
• Apply Polaris Premium All Season Grease to all grease
zerks as outlined in the periodic maintenance table.
SHOCK / LIMITER STRAP SHAFT
FTA SHAFT
SUPPORT SHAFT
SHOCK / FRA SHAFT
RTA SHAFT
SUPPORT SHAFT
IDLER WHEEL
IDLER SHAFT
SPACER
SPACER
FRA ADJUSTER
A
A
B
A
A
B
C
B
O RINGS
O RINGS
= T
A = 45 Ft.Lb. (61 Nm).
B = 35 Ft.Lb. (47 Nm)
C = 19 Ft.Lb. (26 Nm)
