Polaris IQ 2007 User Manual

8.27
Steering and Suspensions
8

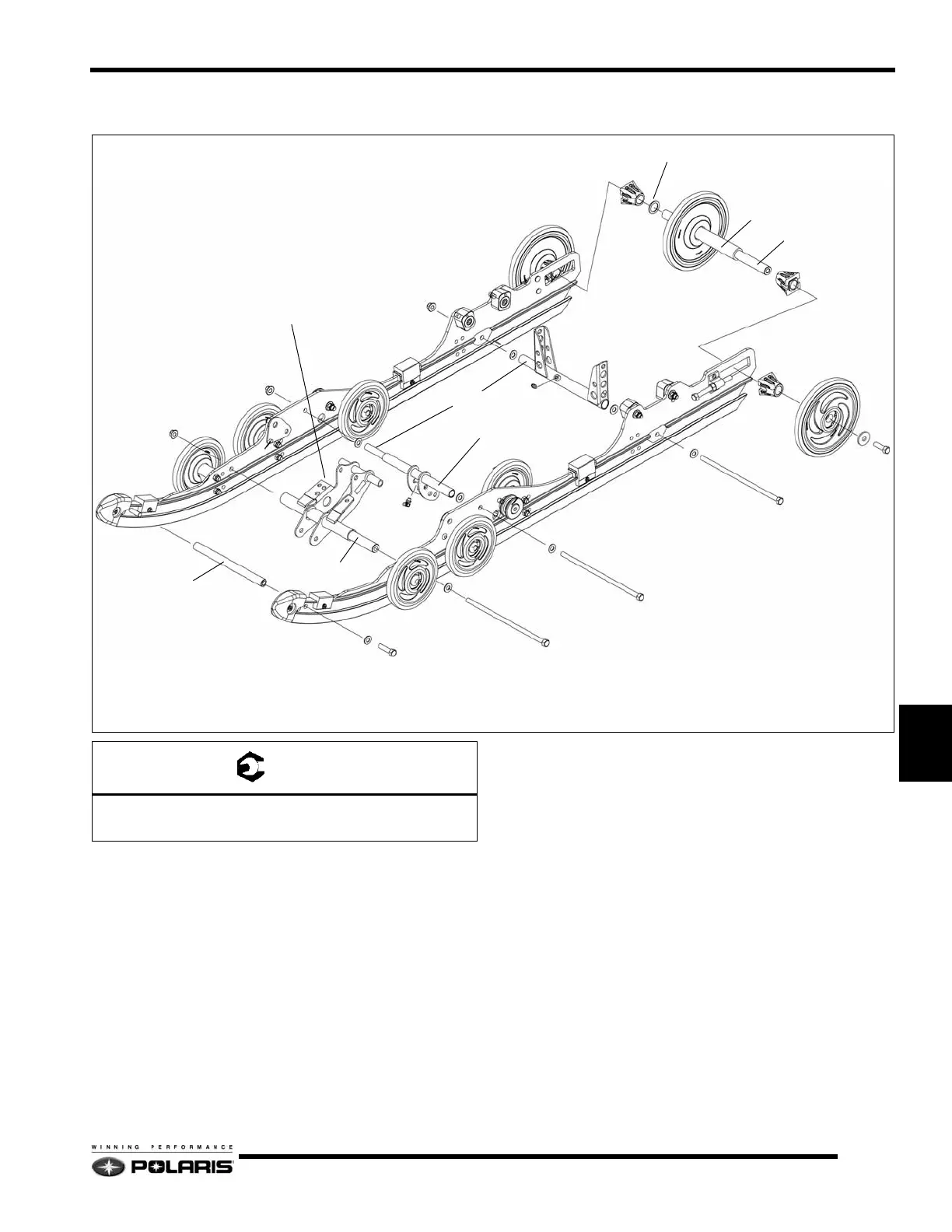

IQ 136 Comfort Pivots / Rear Idler
Assembly Notes
• Never re-use Nylock nuts. Always replace with new
parts.
• All pivots must rotate freely after tightening fasteners.
• Apply Polaris Premium All Season Grease to all grease
zerks as outlined in the periodic maintenance table.
IDLER WHEEL
IDLER WHEEL
SPACER
INNER SHAFT
SPACER
BUSHING
REAR PIVOT
INNER SHAFT
INNER SHAFT
SHOCK PIVOT
H BRACKET
SHAFT
A
B
B
B
B
= T
A = 45 Ft.Lb. (61 Nm)
B = 35 Ft.Lb. (47 Nm)
