8.28
Steering and Suspensions

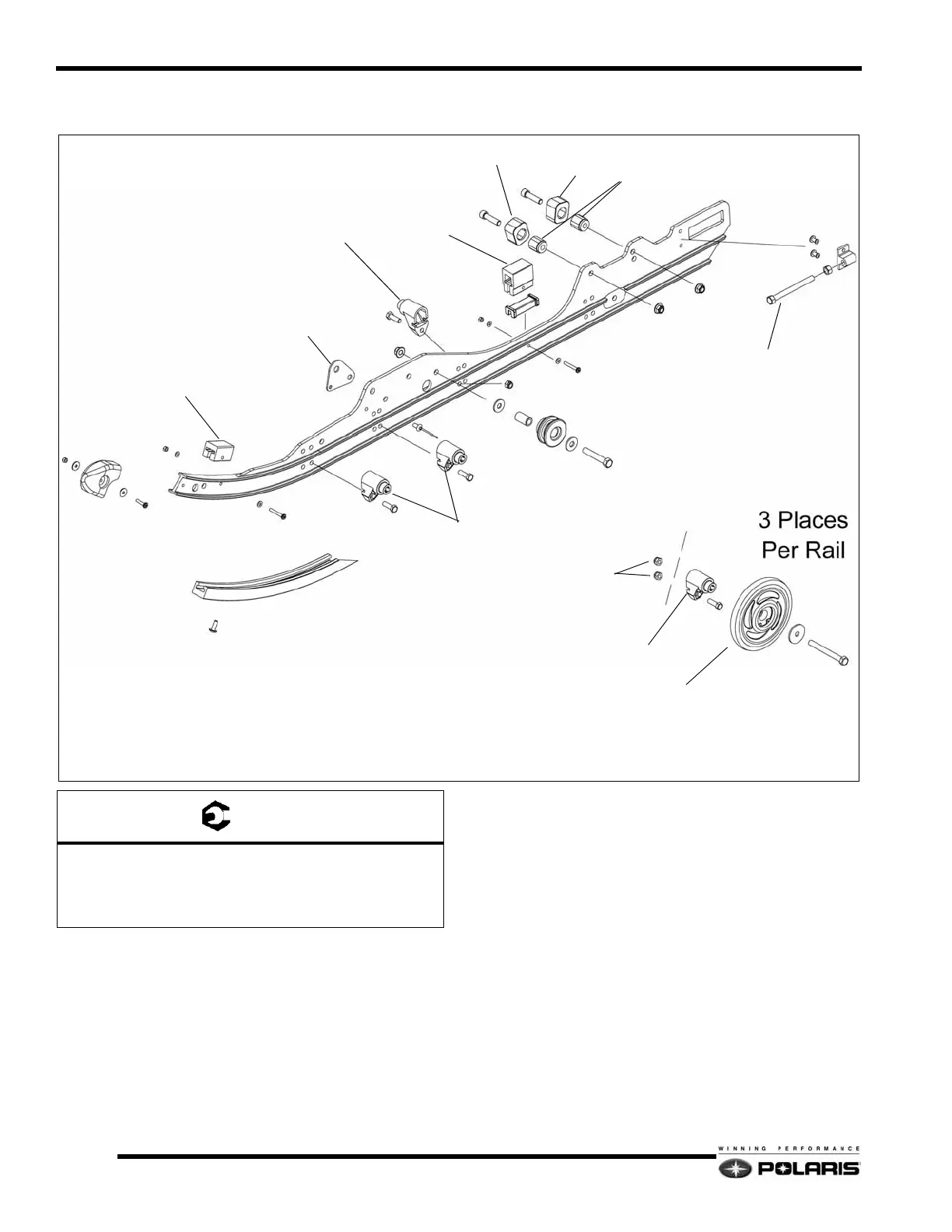

IQ 136 Comfort Rail Assembly
Assembly Notes
• Never re-use Nylock nuts. Always replace with new
parts.
• All pivots must rotate freely after tightening fasteners.
• Apply Polaris Premium All Season Grease to all grease
zerks as outlined in the periodic maintenance table.
RRSS
FRSS
CAMS
RAIL SLIDER
BUMPER
BUMPER
RAIL TIP
SUPPORT PLATE
WHEEL MOUNT
WHEEL MOUNT
SPRING ROLLER
BOGIE WHEEL
WHEEL MOUNT
IDLER WHEEL ADJUSTER
A
B
B
A
B
C
D
D
D
= T
A = 19 Ft.Lb. (26 Nm)
B = 35 Ft.Lb. (47 Nm)
C = 3 - 6 Ft.Lb. (4 - 8 Nm)
D = 35 In.Lb. (4 Nm)
To Next Page
