8.29
Steering and Suspensions
8

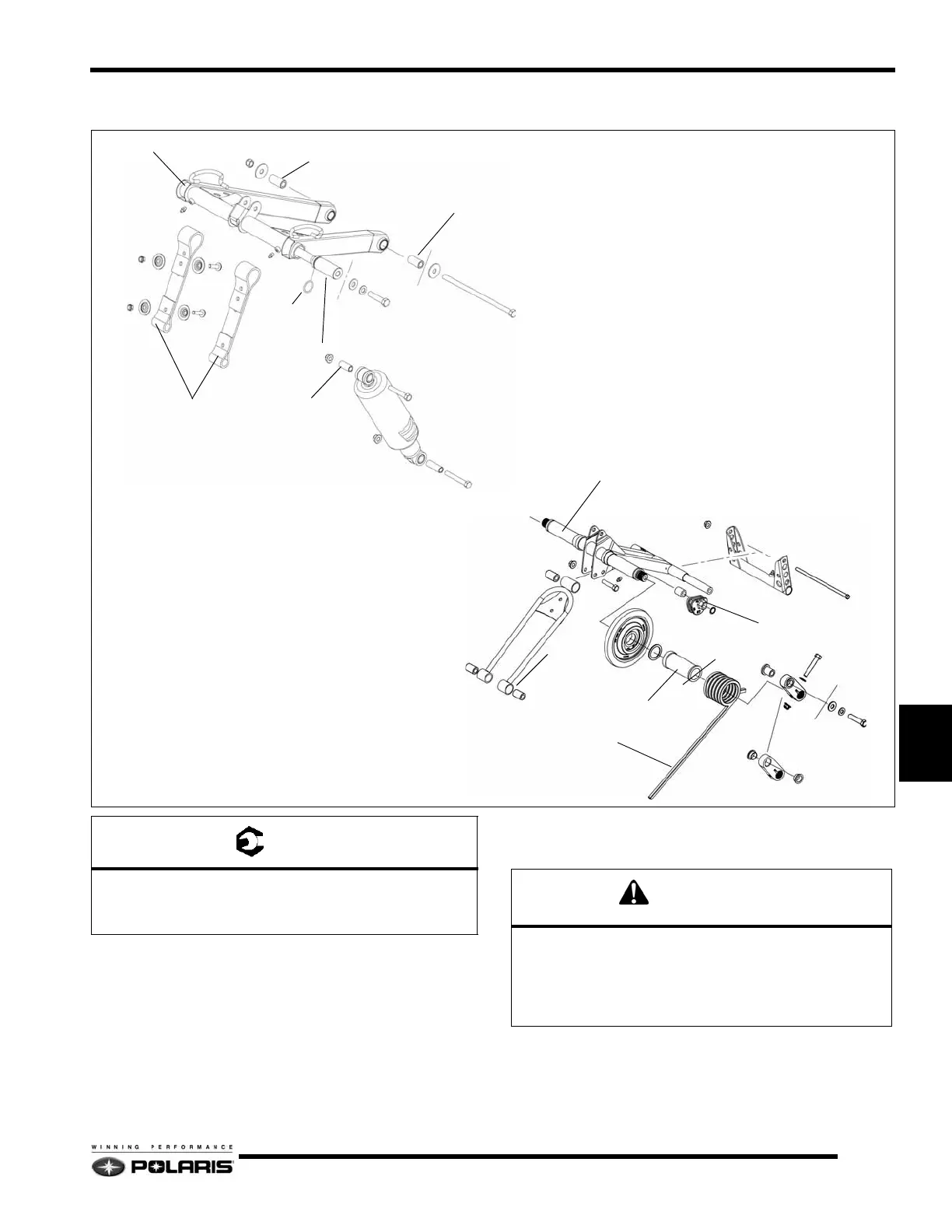

IQ 136 Comfort Front / Rear Torque Arms
Assembly Notes
• Never re-use Nylock nuts. Always replace with new
parts.
• All pivots must rotate freely after tightening fasteners.
• Apply Polaris Premium All Season Grease to all grease
zerks as outlined in the periodic maintenance table.
FRONT TORQUE ARM
LIMITER STRAPS
BUSHING
BUSHING
INNER SHAFT
O-RING
BUSHING
BUSHING
BUSHING
SHOCK ROD
REAR SCISSOR
SPRING ADJUSTER
BUSHING
REAR TORQUE ARM
CARRIER WHEEL
SLEEVE
TORSION SPRING
BUSHING
A
A
B
C
C
C
B
C
C
C
= T
A = 12 Ft.Lb. (16 Nm)
B = 40 Ft.Lb. (54 Nm)
C = 35 Ft.Lb. (47 Nm)
CAUTION
The fasteners securing the rear suspension to the
tunnel are pre-coated with a locking agent when new.
Never re-use these fasteners when removed. Always
use new pre-coated fasteners when mounting the
suspension to the tunnel.
