Polaris IQ 2007 - Page 233

8.30
Steering and Suspensions

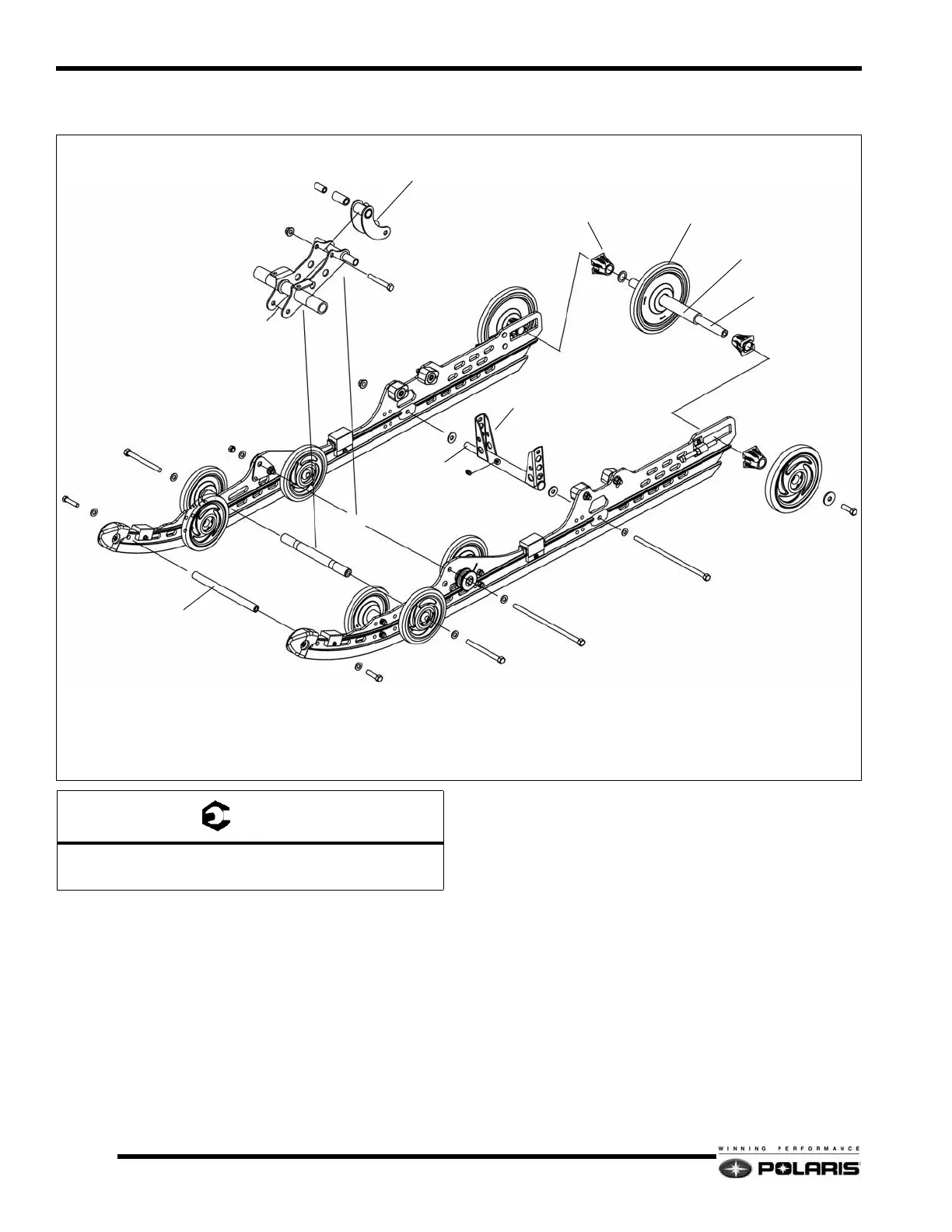

IQ 136 Coupled Pivots / Rear Idler
Assembly Notes
• Never re-use Nylock nuts. Always replace with new
parts.
• All pivots must rotate freely after tightening fasteners.
• Apply Polaris Premium All Season Grease to all grease
zerks as outlined in the periodic maintenance table.
SHOCK PIVOT
H BRACKET
SHAFT
INNER SHAFT
INNER SHAFT
SPACER
INNER SHAFT
IDLER WHEELSPACER BLOCK
REAR SCISSOR
B
B
A
A
B
A
A
A
= T
A = 35 Ft.Lb. (47 Nm)
B = 45 Ft.Lb. (61 Nm)
