8.31
Steering and Suspensions
8

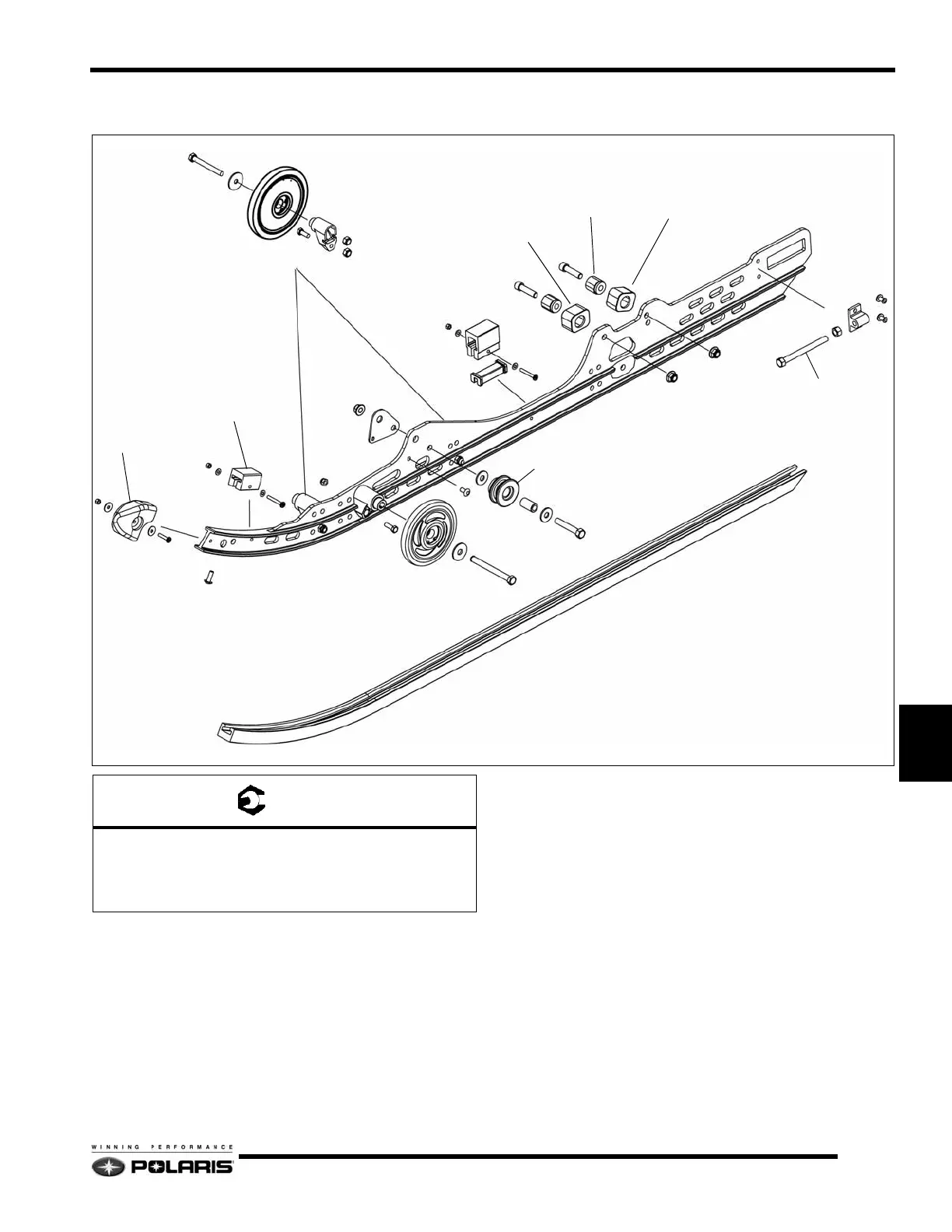

IQ 136 Coupled Rail Assembly
Assembly Notes
• Never re-use Nylock nuts. Always replace with new
parts.
• All pivots must rotate freely after tightening fasteners.
• Apply Polaris Premium All Season Grease to all grease
zerks as outlined in the periodic maintenance table.
RAIL SLIDER
RAIL TIP
BUMPER
BUMPER
RRSS
FRSS
CAM
BOGIE WHEEL
WHEEL MOUNT
IDLER WHEEL ADJUSTER
SPRING ROLLER
A
B
B
B
C
D
D
D
A
= T
A = 19 Ft.Lb. (26 Nm)
B = 35 Ft.Lb. (47 Nm)
C = 3 - 6 Ft.Lb. (4 - 8 Nm)
D = 35 In.Lb. (4 Nm)
