Polycom, Inc. 66
MSF Messages (Message Service Function) System Management
MSF Format III
To Send Normal MSF Messages from KIRK Wireless Server 8000 or KIRK Wireless
Server 2500 to a Handset
1 On the menu window of the WEB page, click the Apps. Demo tab and
then click MSF Format III.

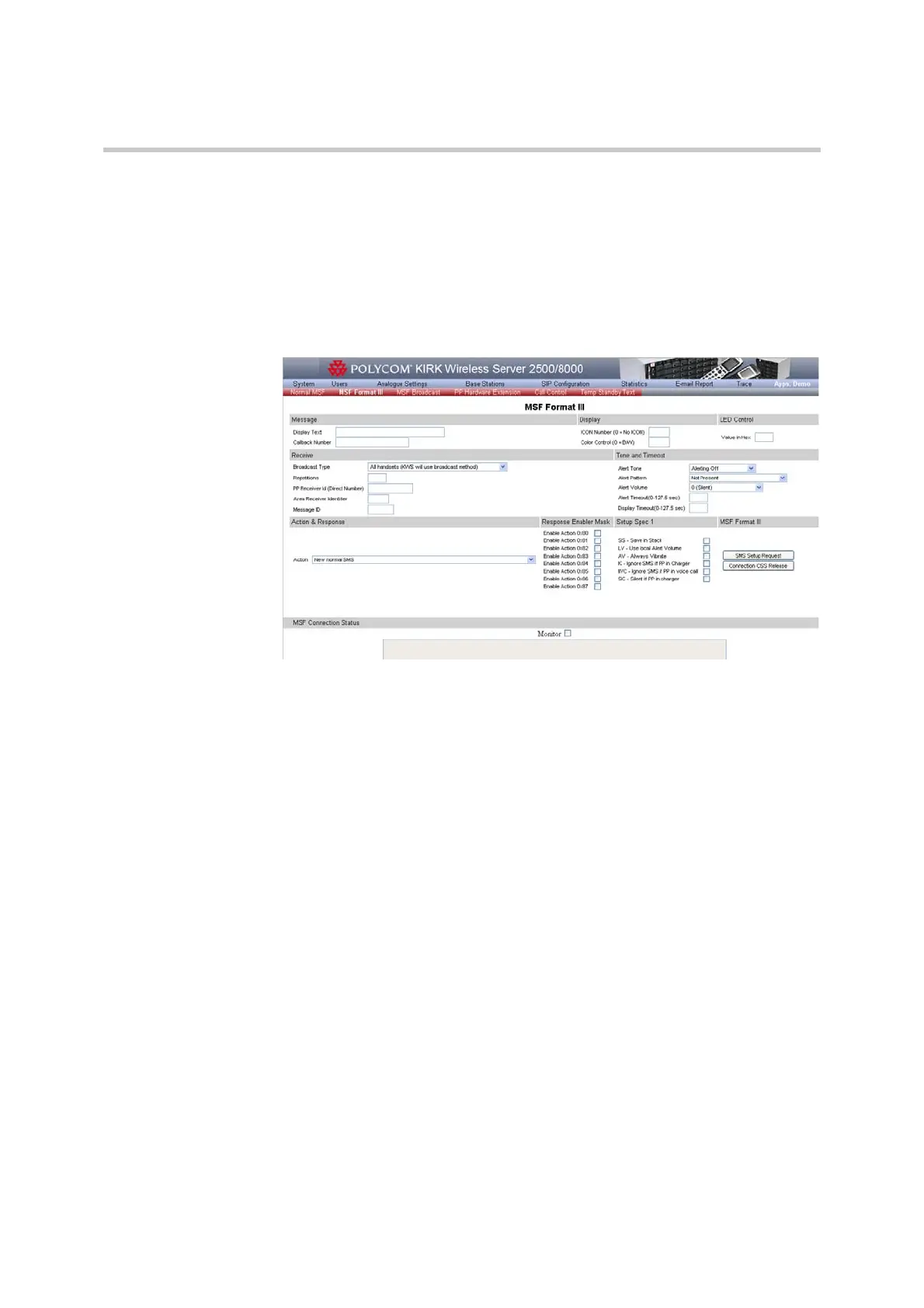

Figure 6-7 MSF Format III tab
2 In the Message pane, type the message you want to send in the Display
Text field and then if you want the receiver to call you back, type a number
in the Callback Number field.
3 Under Display pane, in the ICON Number (0=No ICON), type the
number corresponding to the predefined icon and in the Color Control
field type the message priority value.
4 Under LED Control, in the Value in Hex field type the desired value to
control the color of the LED and the output (flashing, switching-color).
5 In the Receive pane, select from the Broadcast Type drop-down list one of
the following options: All handsets (KIRK Wireless Server will use
broadcast method), One handset (KIRK Wireless Server will use CISS
method) or A group of handsets (KIRK Wireless Server will use broadcast
method).
6 In the Repetition field, specify the number of times you wish the
broadcast to be resent.
7 (Only if the selected broadcast type is One handset) In the PP Receiver Id
(Direct number), specify the number where you wish to send the message.
8 (Only if the selected broadcast type is All handsets) In the Area Receiver
Identifier field, specify to which group of RFP the message should be
broadcasted.
9 In the Message ID field type a number for the identification of the
message.
