The Battery screen displays the battery voltage (Vdc), the battery current (Idc),
battery life, and the minutes of battery time remaining. When battery life decreases
to less than 20 %, Check Battery is displayed.
BATTERY
Vdc
Idc
TIME REMAINING ---
=
=
***
***
V
A
***
MINUTES
LIFE REMAINING ---
100 %

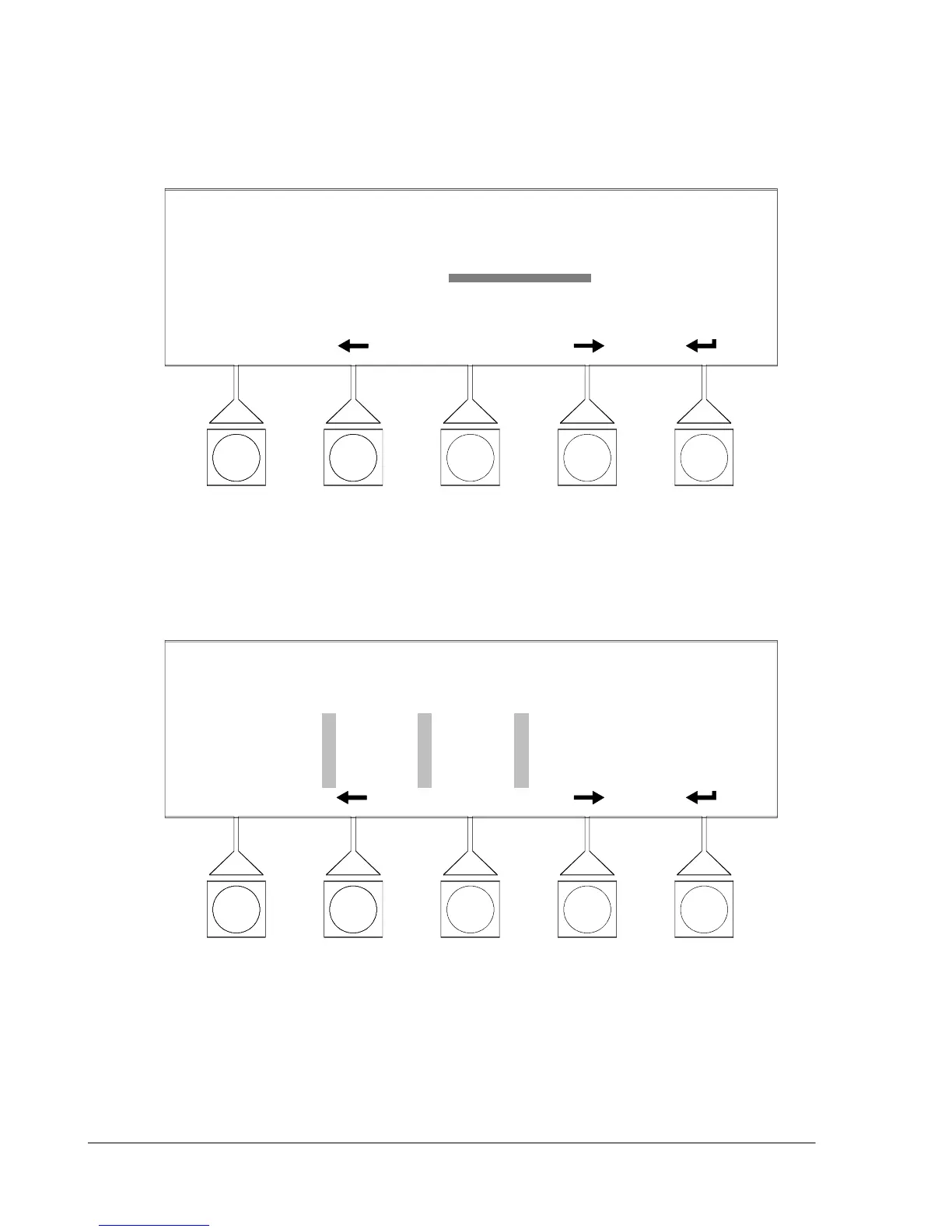

Figure 9---10. Battery Meter Screen
The Output Current Screen displays a real-time bar graph of the output current of
the UPS. The graph shows the current for each phase.
Output I
AB
C
125%
100%
75%
50%
25%
0%
Figure 9---11. Output Current (Load) Meter Screen
