Powerware 9330 (10 kVA--40 kVA) Installation and Operation
164201300 Rev . N 013004
DESCRIPTION:
DATE:
DRAWING NO: SHEET:
REVI SION:
J
1of8
101502
164201300---9

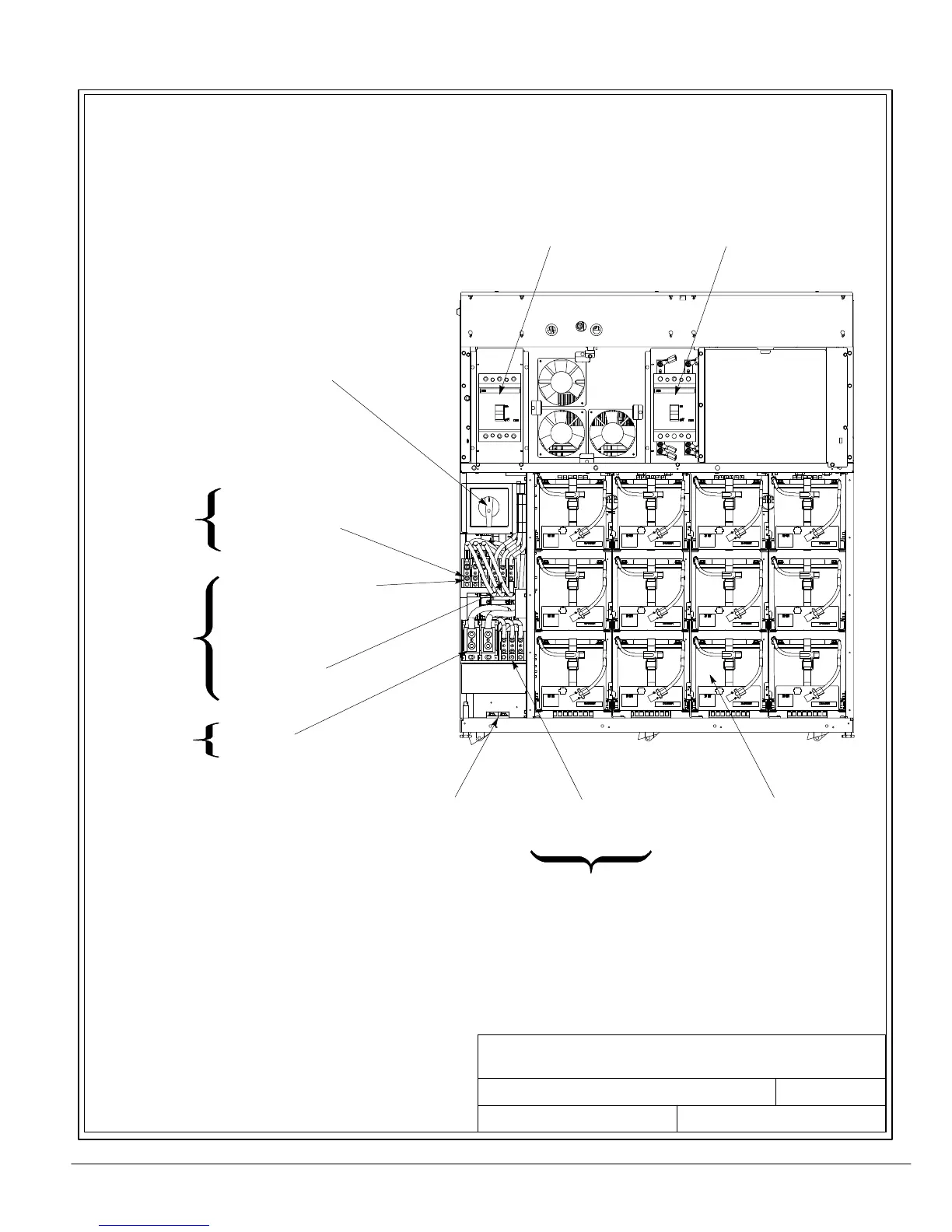

UPS CABINET POWER TERMINALS
LOCATION OF UPS CABINET TERMINALS
FRONT VI E W
NOTE: METAL SHIELDS COVERING POWER
WIRING TERMINALS, BATTERY
COMPARTMENT, AND CB1 MUST BE
REMOVED TO GAIN ACCES S TO
WIRING TERMINALS.
POWERWARE 9330 (25 kVA-- 40 kVA)
BATTERY
BREAKER CB2
INPUT
BREAKER CB1
MAINTENANCE BYPASS
SWITCH (MBS)
INTERNAL
BATTERIES
GROUND
TERMINALS
AC INPUT TO UPS
RECTIFIER
(DUAL INPUT)
(A,B,C)
AC INPUT TO UPS RECTIFIER
AND BYPASS
(SINGLE INPUT)
(A,B,C)
AC INPUT TO BYPAS S
(DUAL INPUT)
(A,B,C)
AC OUTPUT TO
CRITICAL LOAD
(A,B,C)
SEE
SHEET 3
FOR
DETAILS
SEE SHEET 2 OR
3FORDETAILS
SEE
SHEET 2
FOR
DETAILS
SEE
SHEET 2
OR 3 FOR
DETAILS
NEUTRAL
