Powerware 9330 - Page 231

A --- 5 7
Powerware 9330 (10 kVA--40 kVA) Installation and Operation
164201300 Rev . N 013004
DESCRIPTION:
DATE:
DRAWING NO: SHEET:
REVI SION:
J
3of8
101502
UPS CABIN ET
POWER TERMINALS

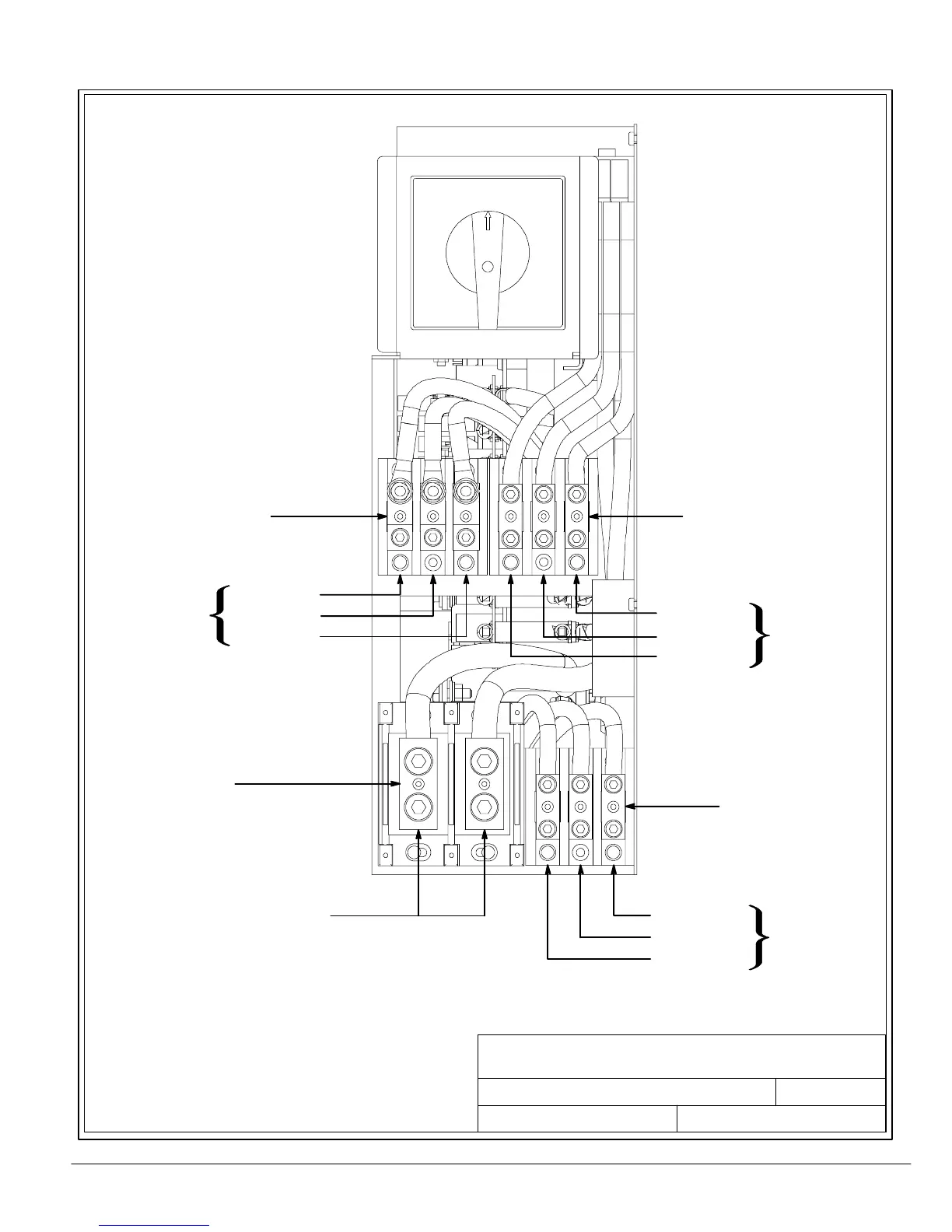

LOCATION OF UPS CABINET TERMINALS
FRONT VIE W DETAIL
164201300---9
POWERWARE 9330 (25 kVA-- 40 kVA)
DUAL INPUT
NOTE: REMOVE JUMPERS BETWEEN
TERMINAL BLOCKS FOR DUAL INPUT.
NEUTRAL (E12)
AC INPUT TO UPS
BYP ASS
(DUAL INPUT)
PHASE A (E6)
PHASE B (E7)
PHASE C (E8)
AC OUTPUT TO
CRITICAL LOAD
PHASE C (E11)
PHASE B (E10)
PHASE A (E9)
PHASE C (E3)
PHASE B (E2)
PHASE A (E1)
AC INPUT TO
UPS RECTIFIER
(DUAL INPUT)
BYP ASS INPUT
TERMINAL BLOCK
RECTIFIER INPUT
TERMINAL BLOCK
OUTPUT
TERMINAL
BLOCK
NEUTRAL
TERMINAL
BLOCK
