Powerware 9330 (10 kVA--40 kVA) Installation and Operation
164201300 Rev . N 013004
DESCRIPTION:
DATE:
DRAWING NO: SHEET:
REVI SION:
J
4of8
101502

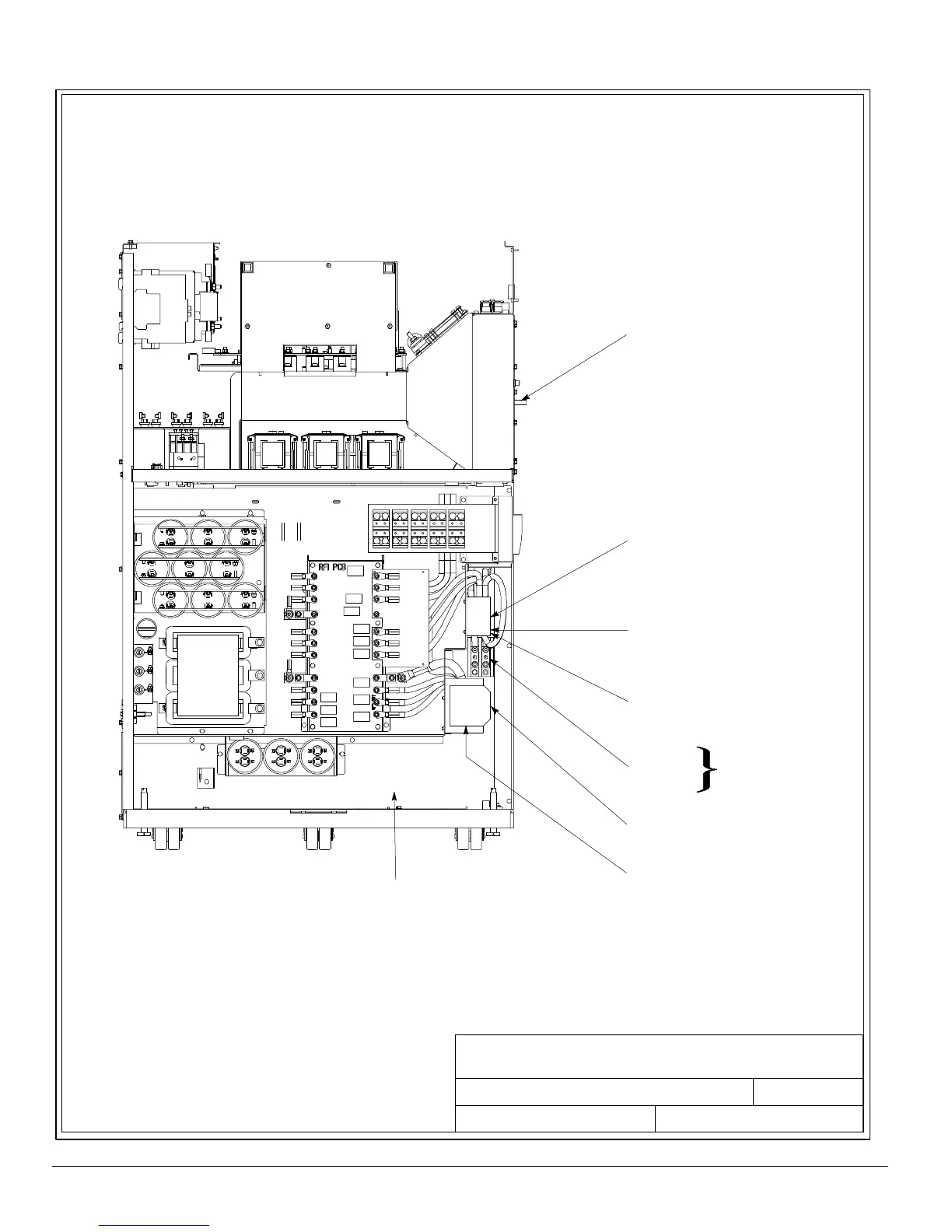

UPS CABINET POWER TERMINALS
LOCATION OF UPS CABINET TERMINALS
LEFT VIEW
164201300---9
POWERWARE 9330 (25 kVA-- 40 kVA)
INPUT
BREAKER CB1
AC INPUT TO UPS
RECTIFIER
(DUAL INPUT)
(A,B,C)
AC INPUT TO BYPAS S
(DUAL INPUT)
(A,B,C)
AC OUTPUT TO
CRITICAL LOAD
(A,B,C)
AC INPUT TO UPS RECTIFIER
AND BYPASS
(SINGLE INPUT)
(A,B,C)
WIREWAY
POWER WIRING
NEUTRAL
REMOTE
BATTERY
INPUT
SEE SHEET 5
FOR DETAILS
