Powerware 9330 (10 kVA--40 kVA) Installation and Operation
164201300 Rev . N 013004
DESCRIPTION:
DATE:
DRAWING NO: SHEET:
REVI SION:
D

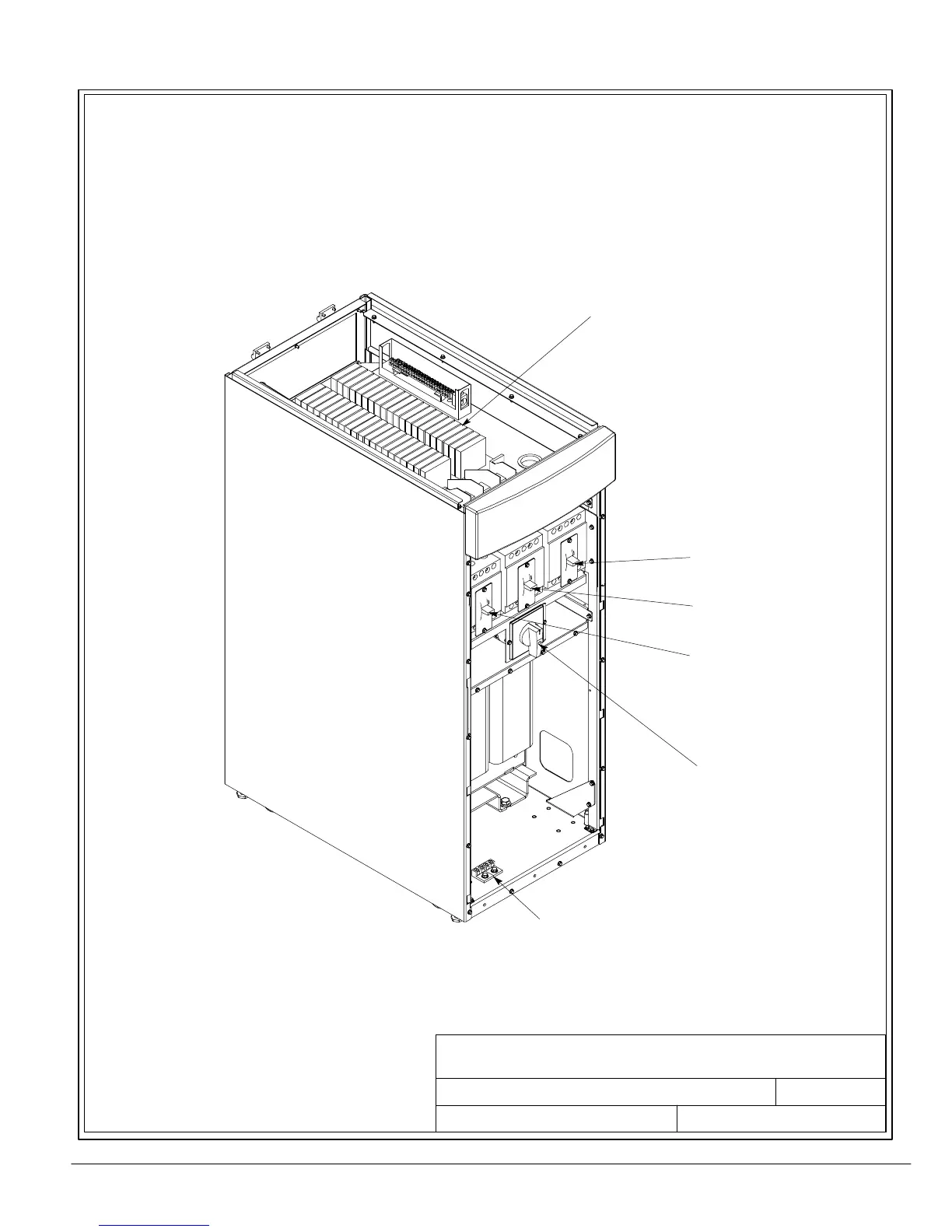

LOCATION OF OPTIONS CABINET TERMINALS
1of6
053001
OPTIONS CABINET
GROUND TERMINALS
OPTIONAL 42 CIRCUIT
DISTRIBUTION PANEL
MAINTENANCE BYPASS
SWITCH (MBS)
AC INPUT
BREAKER
BYP ASS
BREAKER
AC OUTPUT
BREAKER
TERMINALS
POWERWARE 9330 (10 kVA-- 20 kVA)
(USE SQUA RE---D TYPE
QO OR QOB BREAKERS)
164201300---10
