b. Use a 9/16" socket to remove the stairarm Linkarm fastener. Then remove the
Stairarm and Inner Linkarm cover. Retain hardware and fastener for installation.
Installation Instructions

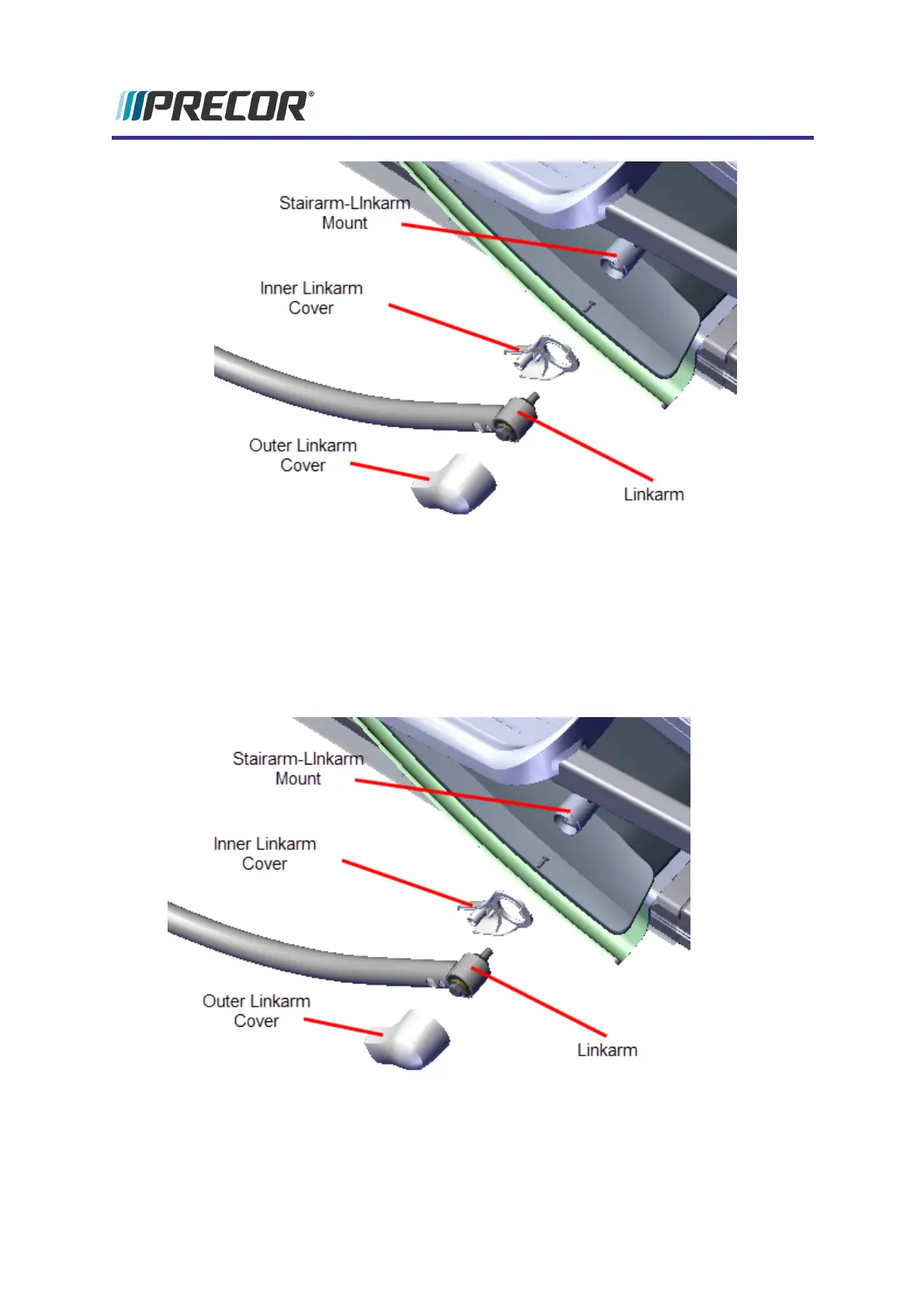

1. Reinstall linkarm onto the stairarm (Moving arm models only):
a. Reinstall the Linkarm Inner Cover and then the Linkarm onto the Linkarm mount-
ing spud. Secure with the fastener and torque to 300 +/- 90 in-lbs (34 +/- 10 Nm).
Experience Series 800 Line EFX
120
5 Replacement Procedures
Stairarm Replacement
To Next Page
