AFV
+
Series High Power Programmable AC Power Supply
3-73

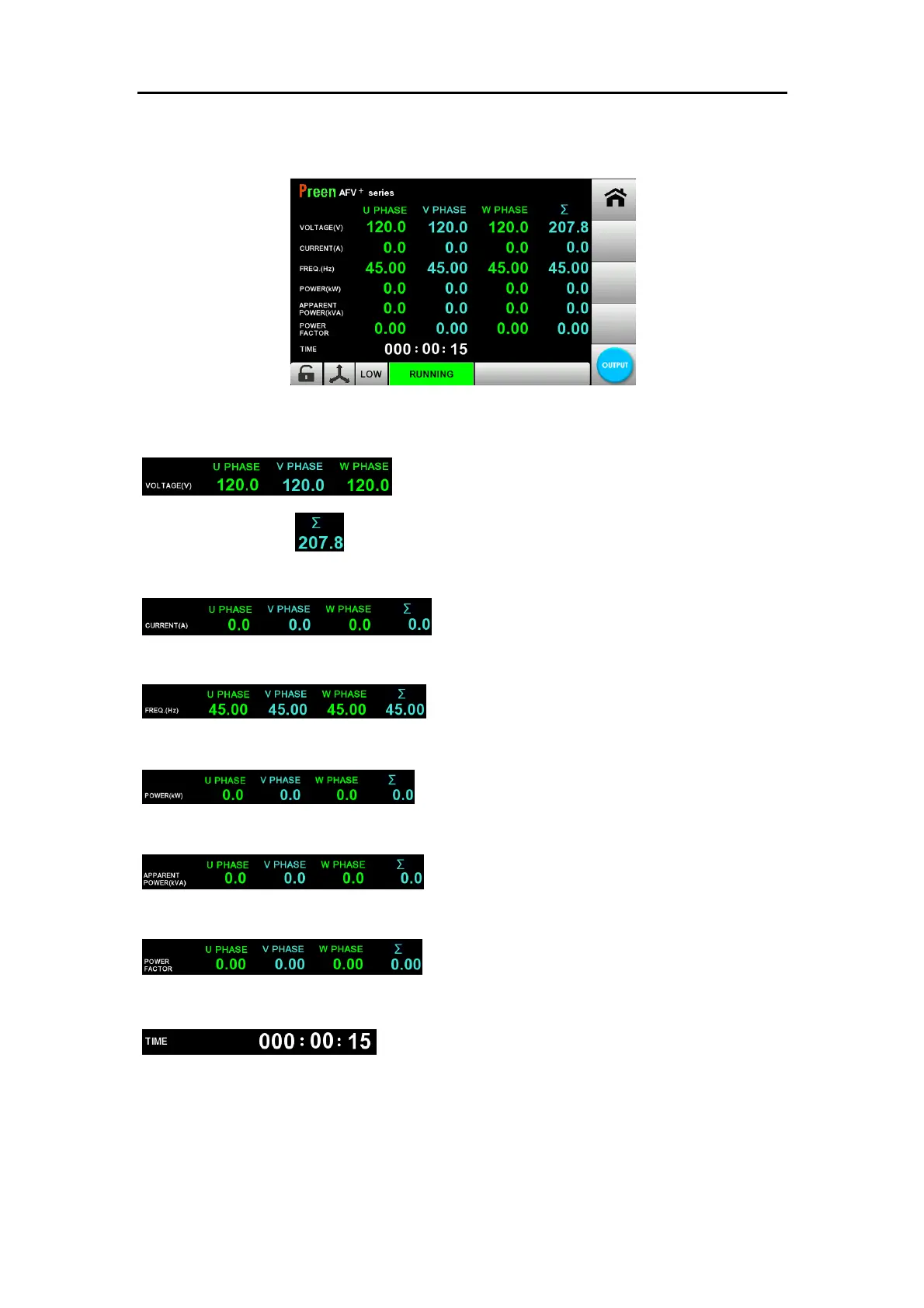

Three-phase meter page is described as figure below.
Figure 3.56 Three-phase model meter page
: Displays measurement of the output voltage of
each phase in volts : Displays measurement of synchronized three-phase, for
example (120V+120V+120V)/3*1.732..
：Displays measurement of the output current
of each phase and the sum of total output current.
： Displays measurement of the output
frequency of each phase and the sum of total output frequency.
：Displays measurement of the output power
(W) of each phase and the sum of total output power.
： Displays measurement of the apparent
power(VA) of each phase and the sum of total output current.
：Displays measurement of the output power
factor of each phase and the total output power factor.
：Displays run time (hour/minute/second).
